ICOTEK KEL-DPU 24/17 CABLE ENTRY PLATE
Quick Overview
Manufactured By: ICOTEK
Manufacturer Part Number: KEL-DPU 24/17
IMS Product Code: 1834637
Packaging: Sold Individually
Description:

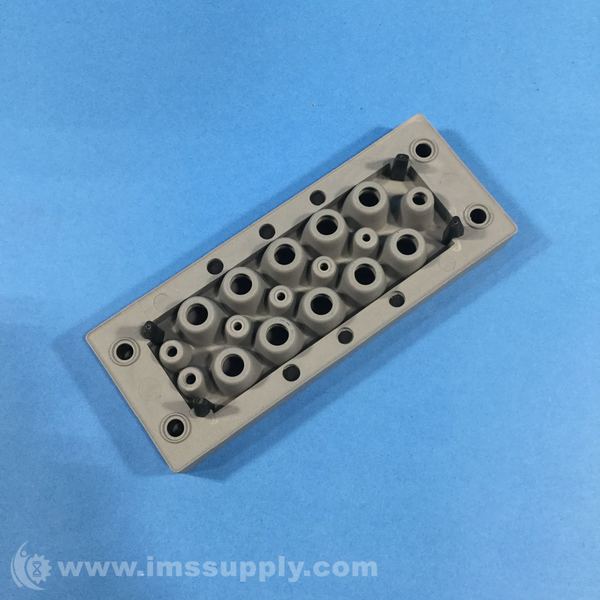

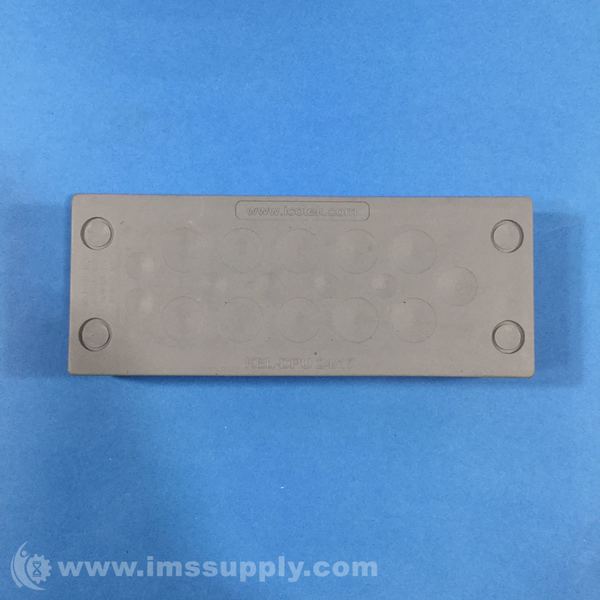

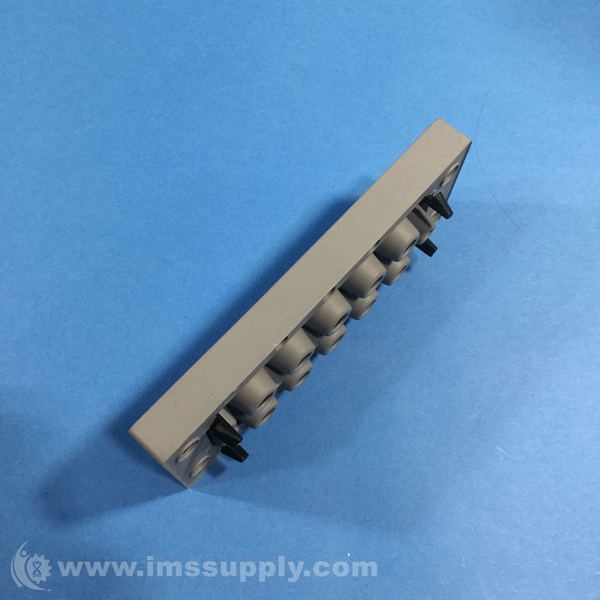

Icotek KEL-DPU 24/17 Cable Entry Plate
Heavy-duty cable entry plate for routing and sealing up to 17 cables, made of elastomer with a polypropylene base frame.
Specifications
- Length: 147 mm
- Width: 58 mm
- Height: 14 mm
- Cut-out length: 112 mm
- Cut-out width: 36 mm
- Material: Elastomer
- Base Frame Material: Polypropylene
- Color: Black
- IP Protection Class: IP65, IP66
- NEMA Rating: NEMA4x
- Flame Class: UL94-V0
- Temperature Rating: -40 to 90 degrees Celsius
- Clamping Range: 4 x 3.2 to 6.3mm, 2 x 4 to 7.5mm, 1 x 5.5 to 10.5mm, 10 x 8 to 12.5mm
- Max Cable Diameter: 12.5mm
- Max Number of Cables: 17
