IDC SELECT UCP206-18 PILLOW BLOCK BEARING
Quick Overview
Manufactured By: IDC SELECT
Manufacturer Part Number: UCP206-18
IMS Product Code: 1945572
Packaging: Sold Individually
Description:

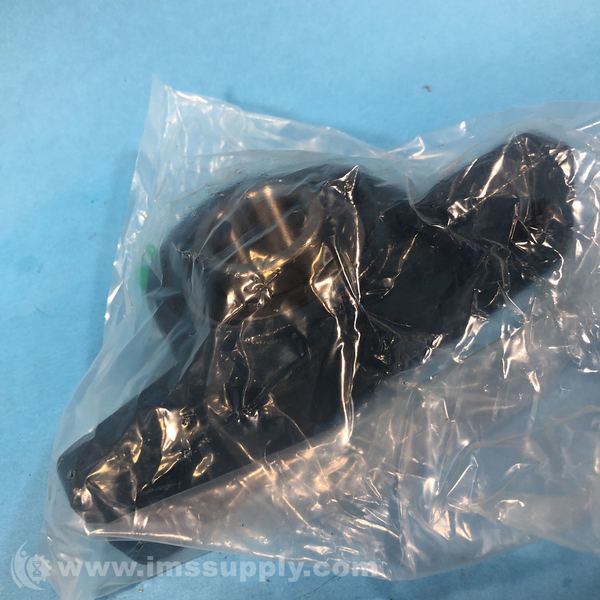

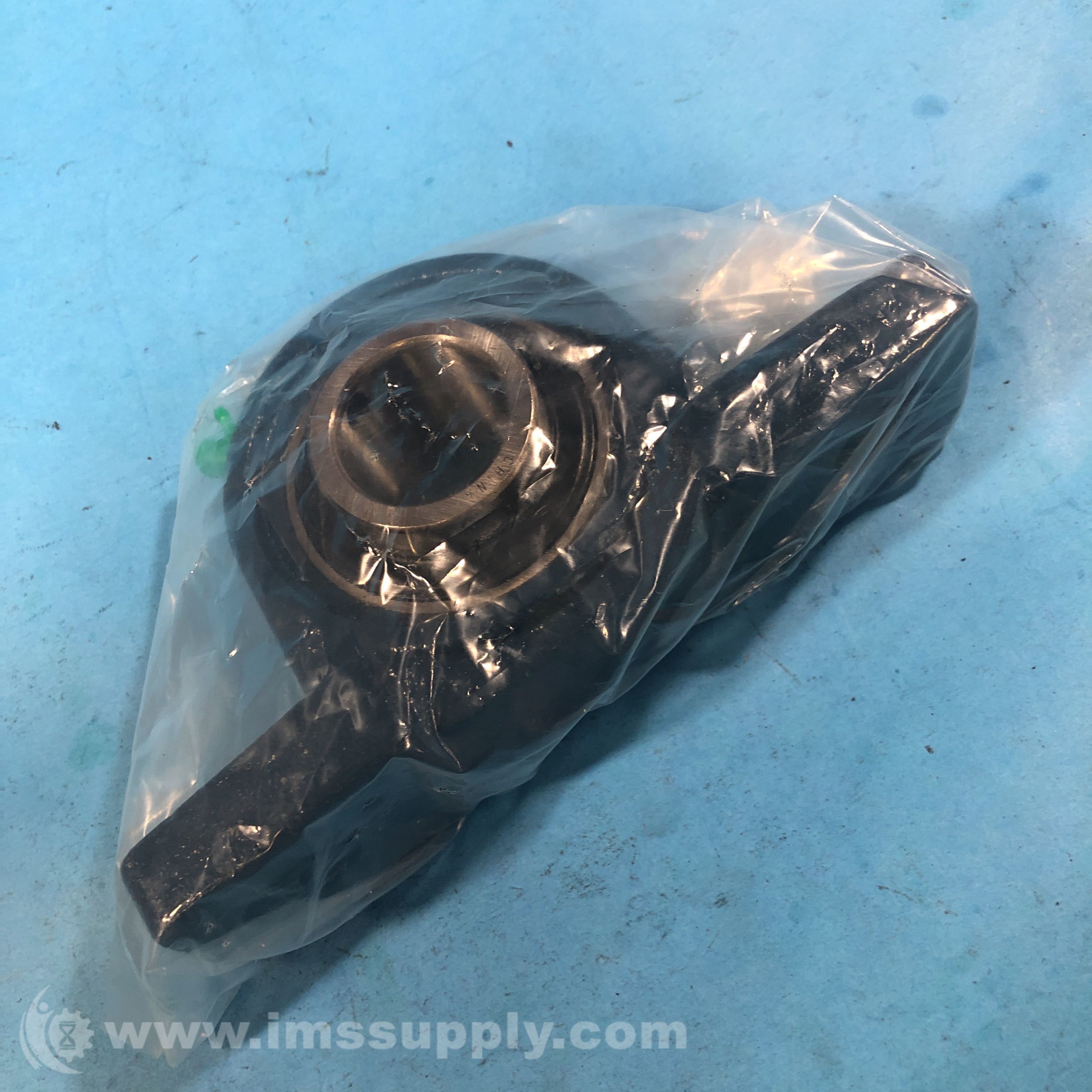

IDC Select UCP206-18 Pillow Block Bearing
Pillow block bearing unit with set screw locking design and cast iron housing.
Specifications
- Shaft Diameter: 1.125 in
- Base to Shaft Centerline: 1.689 in
- Housing Length: 6.496 in
- Mounting Hole Center-to-Center: 4.75 in
- Base Width: 1.89 in
- Mounting Hole Diameter: 17 mm
- Housing Base Thickness: 0.669 in
- Housing Height: 3.307 in
- Bearing Inner Race Width: 1.5 in
- Bolt Size: 1/2 in
- Weight: 2.78 lb
- Dynamic Load Rating: 4383.77 lbf
- Static Load Rating: 2540.34 lbf
- Locking Device: Set Screw
- Grease Fitting: 1/4 - 28 UNF
- Material: Cast Iron
- Lubrication: Grease
- Seal Type: Contact
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
