IFM AC5214 AS-INTERFACE MODULE
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: AC5214
IMS Product Code: 1961151
Packaging: Sold Individually
Description:

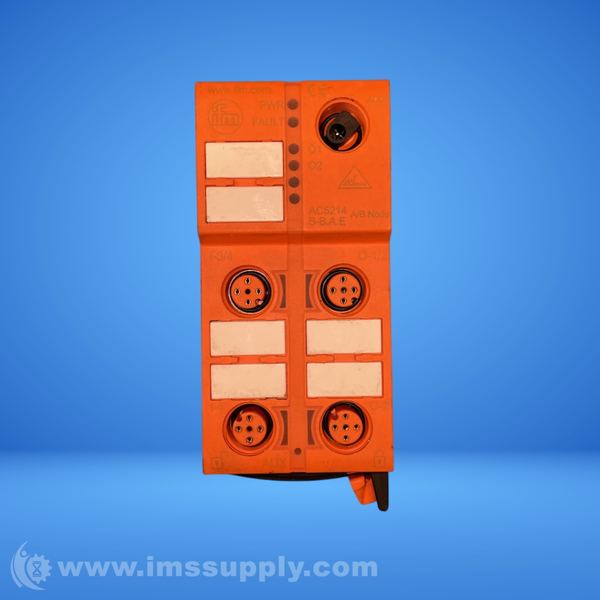

Ifm AC5214 AS-Interface Module
AS-Interface ClassicLine module with 2 digital inputs and 2 digital outputs, PNP circuit, IP67 protection, operating voltage 26.5-31.6V DC.
Specifications
- Application: field installation
- Operating voltage [V]: 26.5...31.6 DC
- Max. current consumption from AS-i [mA]: 150
- Max. current load total [A]: 2
- Integrated watchdog: yes
- Number of digital inputs: 2
- Input circuit of digital inputs: PNP
- Sensor supply of the inputs: AS-i
- Voltage supply [V]: 18...30
- Max. total current rating of inputs [mA]: 100
- Input current High [mA]: 6...10
- Input current low [mA]: 0...2
- Switching level high [V]: > 11
- Digital inputs protected against short circuits: yes
- Number of digital outputs: 2
- Circuit: PNP
- Voltage range DC [V]: 15...30
- Max. current load per output [mA]: 1000
- Short-circuit proof: yes
- Electrically separated: yes
- Actuator supply outputs: AUX
- Ambient temperature [C]: -25...70
- Protection: IP 67
- EMC: EN 50295; IEC 61000-6-2
- MTTF [years]: 192
- AS-i version: 2.11; 3.0
- AS-i addressing: Addressing socket
- Extended addressing mode: yes
- AS-i master profile: M2; M3; M4
- AS-i profile: S-B.A.E
- AS-i I/O configuration [hex]: B
- AS-i ID code [hex]: A.E
- Type of mounting: AS-i flat cable connection
- Material: PA; Piercing contacts: CuSn6 nickel-plated and tin-plated
- Display: Power: LED, green; errors: LED, red; Function: LED, yellow
- Module connection: Flat cable
- Electrical connection: quick mounting technology for AS-i flat cable
- Electrical connection - Inputs: Connection: Connector: M12
- Electrical connection - Outputs: Connection: Connector: M12
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 22 minutes.
Used (Special):

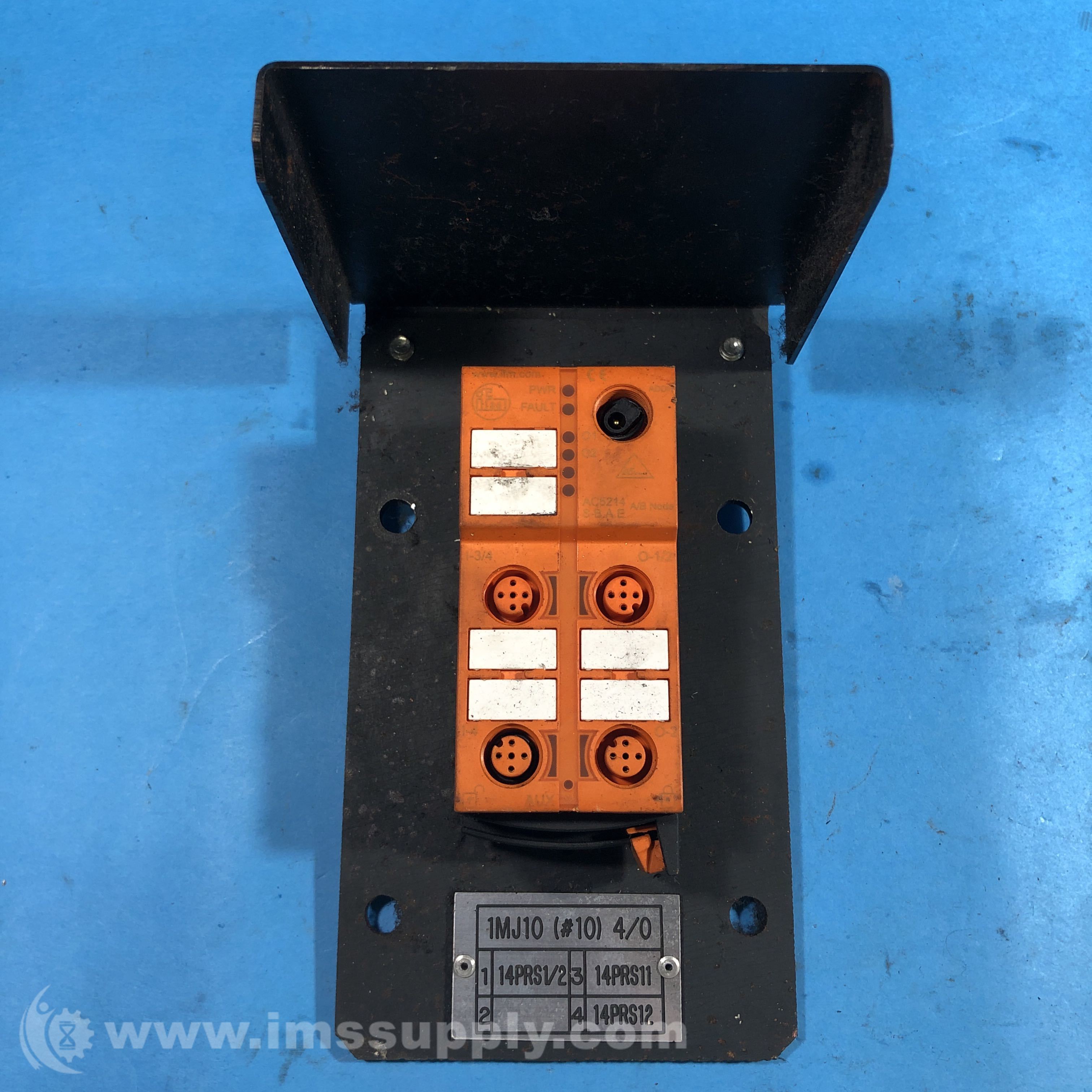

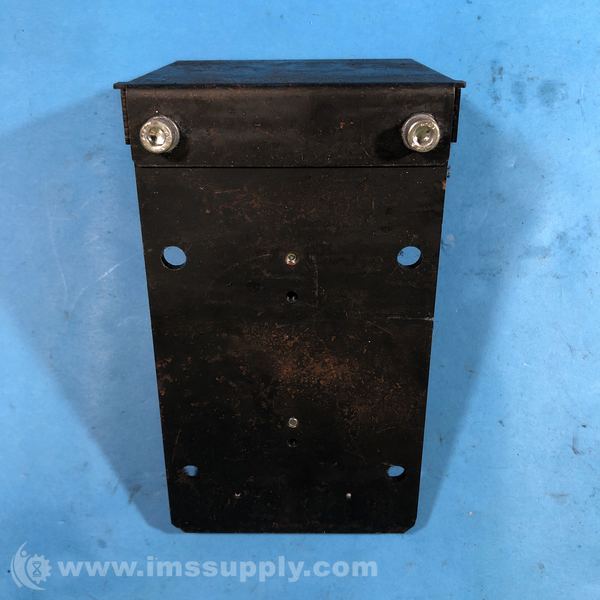

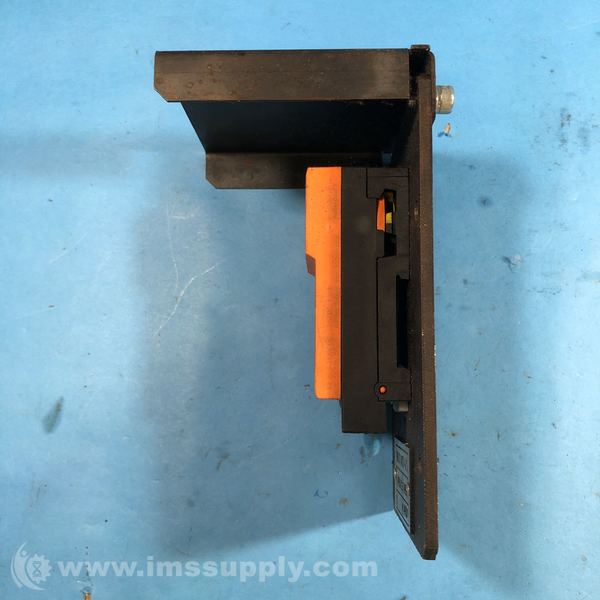

Part is attached to a metal plate.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 22 minutes.
