IFM AL2605 IO-LINK INPUT/OUTPUT MODULE
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: AL2605
IMS Product Code: 2161166
Packaging: Sold Individually
Description:

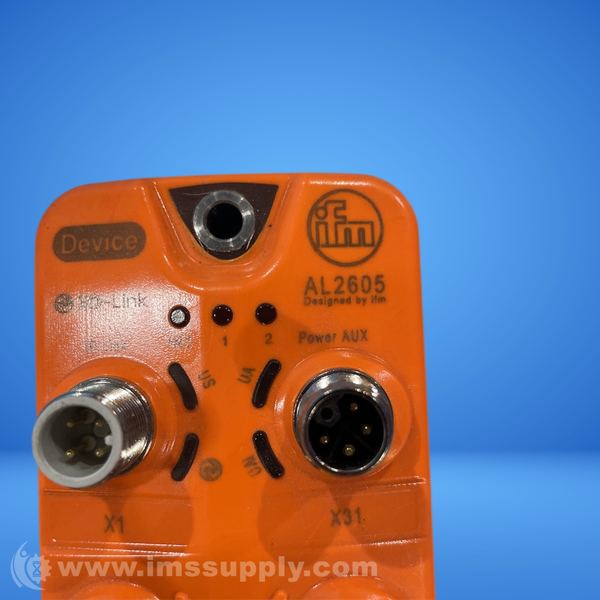

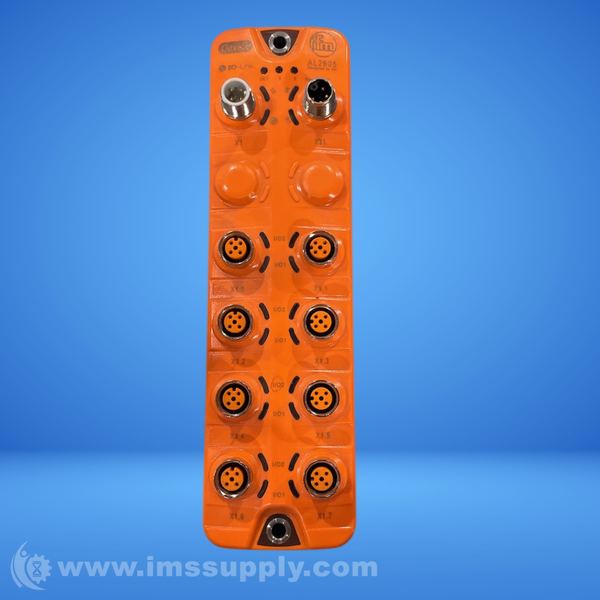

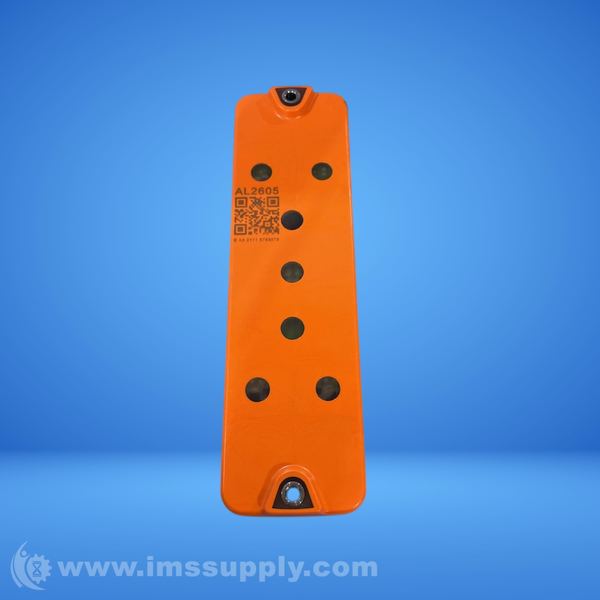

Ifm AL2605 IO-Link Input/Output Module
IO-Link Input/Output Module with 16 configurable digital inputs/outputs and 8 configurable analog inputs. Features robust design with full potting for harsh industrial environments and separate 24 V power supply for outputs via M12 L-coded cordsets.
Specifications
- Operating Voltage: 18 - 30 V DC
- Current Consumption: 100 mA
- Protection Class: III
- Total Number of Inputs and Outputs: 16
- Number of Digital Inputs: 16 (configurable)
- Number of Analog Inputs: 8 (configurable current/voltage input)
- Number of Digital Outputs: 16 (configurable)
- Maximum Current Load per Output: 2000 mA
- Communication Interface: IO-Link
- Ambient Temperature: -25 - 60 degrees C
- Protection: IP 65; IP 67
- Dimensions: 26 x 59.3 x 208 mm
- Material: Housing: PA orange; Socket: brass nickel-plated
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
