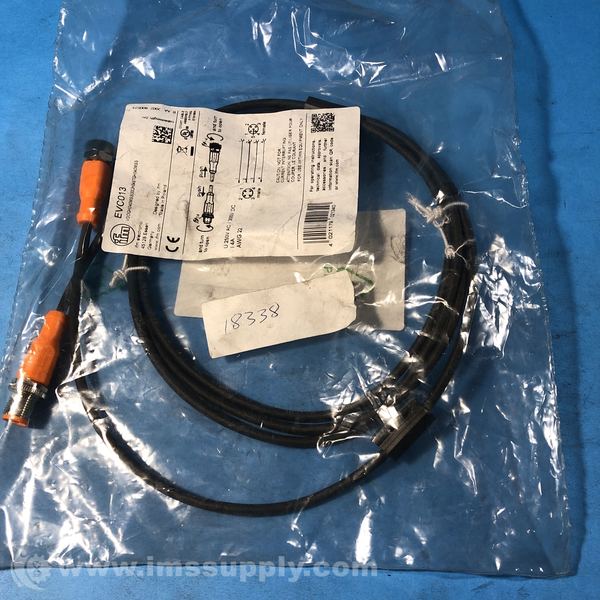

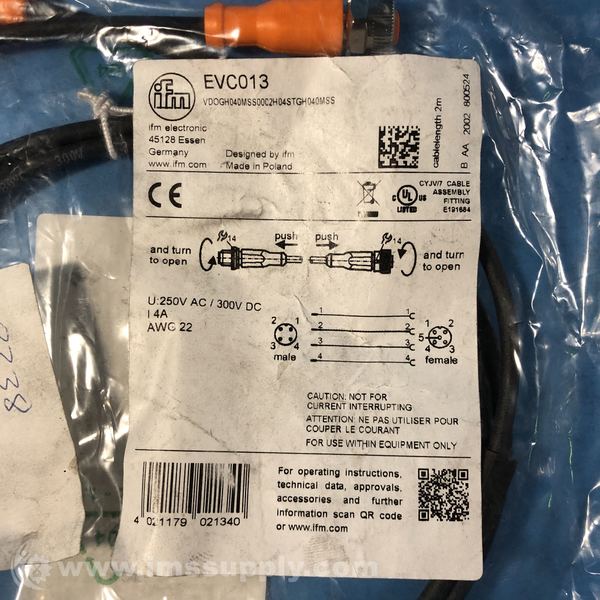

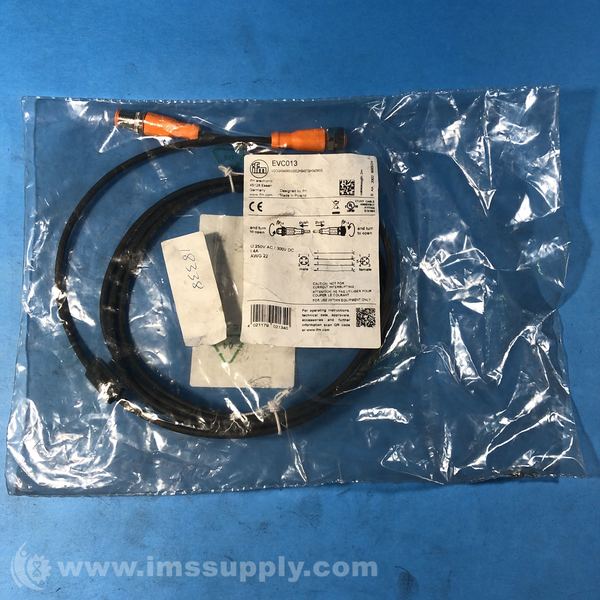

IFM EVC013 CONNECTION CABLE
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: EVC013
IMS Product Code: 2004037
Packaging: Sold Individually
Description:
Ifm EVC013 Connection Cable
M12 Male to M12 Female, 2m, PUR, EVC Series
Specifications
- Cable Length: 2 m
- Diameter: 4.9 mm
- Number of Conductors: 4
- Shielding: No
- Voltage Rating: 250 V
- Current Rating: 4 A
- Max Operating Temperature: 90 degrees C
- Min Operating Temperature: -25 degrees C
- Operating voltage [V]: 10...36 DC
- Current consumption [mA]: < 15
- Switching frequency [Hz]: 1000
- Max. switching current (output) [mA]: 200
- Short-circuit protection: yes
- Reverse polarity protection: yes
- Operating temperature [degrees C]: -25...85
- Housing materials: stainless steel; PBT
- Protection: IP 67
- EMC: IEC 60947-5-2
- MTTF [years]: 1344
- Free from silicone: yes
- Protection class: II
- Max. current load total [A]: 4
- Ambient temperature [degrees C]: -25...90
- Storage temperature [degrees C]: -25...55
- Storage humidity [%]: 10...100
- Material: housing: TPU (urethane) orange; sealing: FKM
- Material nut: brass, nickel-plated
- Drag chain suitability: yes
- Bending radius for flexible applications: min. 10 x cable diameter
- Travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²
- Bending cycles: > 5 Mio.
- Torsional strain: ± 180 degrees/m
- Electrical connection - plug: Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
- Electrical connection: Cable: 2 m, PUR, Halogen-free, black, O 4.3 mm; 4 x 0.34 mm² (42 x O 0.1 mm )
- Electrical connection - Socket: Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
