IFM EVC115 CONNECTION CABLE
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: EVC115
IMS Product Code: 2146018
Packaging: Sold Individually
Description:

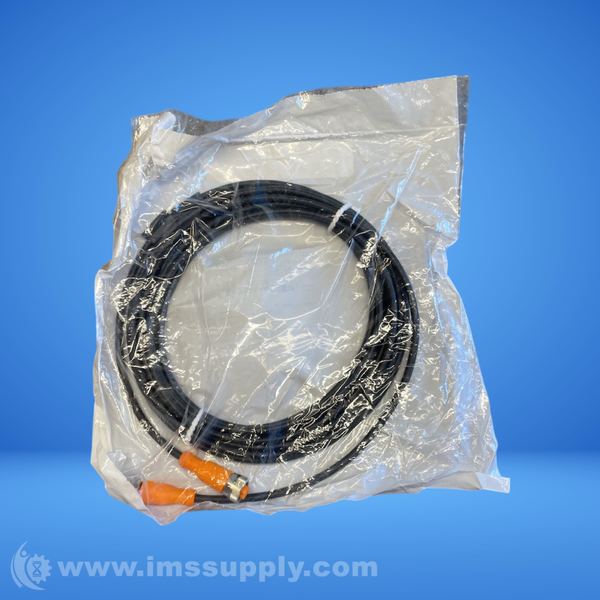

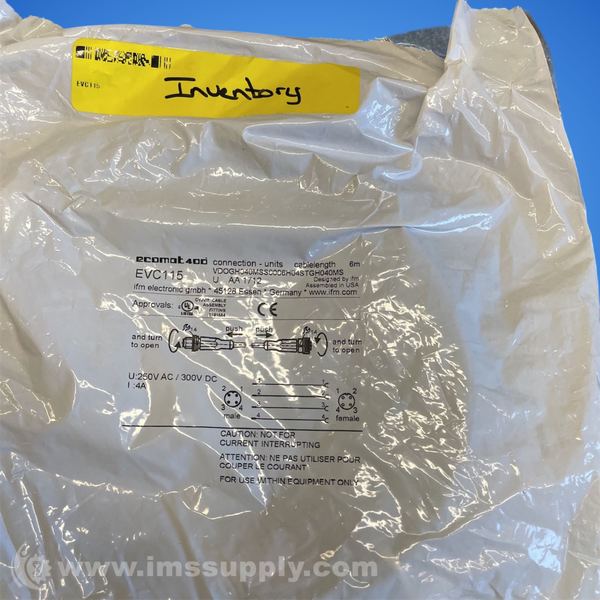

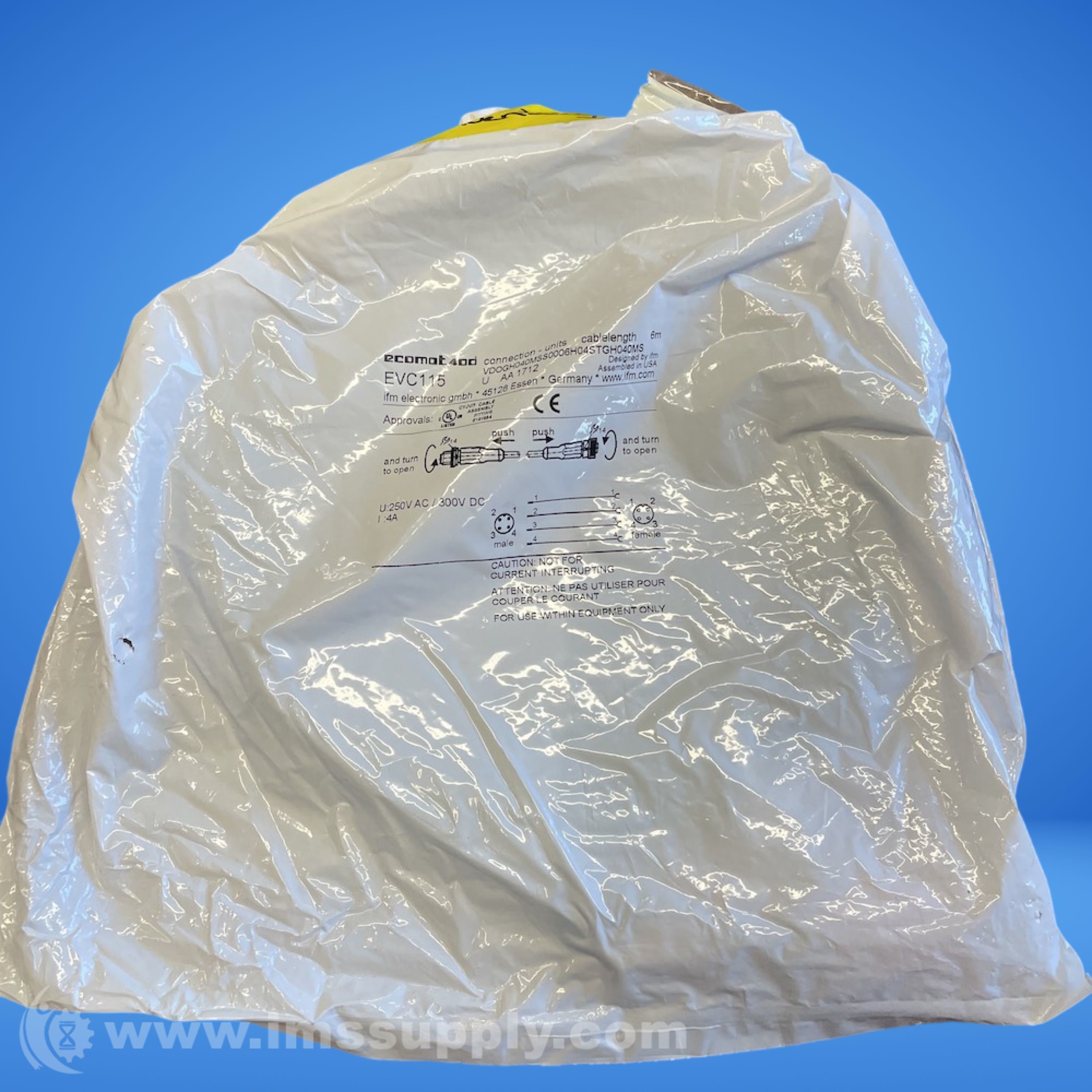

Ifm EVC115 Connection Cable
Connection cable resistant to oils and coolants with permanent, reliable sealing even when mounted without tools. It has a high protection rating for the requirements of harsh industrial environments and a mechanical end stop to protect the o-ring from destruction. Lastly, the cable has vibration and shock resistance thanks to a coupling ring with a locking mechanism.
Specifications
- Operating Voltage: < 250 AC / < 300 DC
- Max. Current Load: 4 A
- Protection Class: II
- Ambient Temperature: -25...90 degrees C
- Protection: IP 65; IP 67; IP 68; IP 69K
- Material: Housing: TPU (urethane) orange; Sealing: FKM
- Material Nut: Brass, nickel-plated
- Cable Length: 6 m
- Cable Type: PUR, Halogen-free, black, 4.3 mm diameter
- Drag Chain Suitability: Yes
- Bending Radius: min. 10 x cable diameter
- Torsional Strain: ± 180 °/m
