IFM EVC116 CONNECTION CABLE
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: EVC116
IMS Product Code: 1864463
Packaging: Sold Individually
Description:

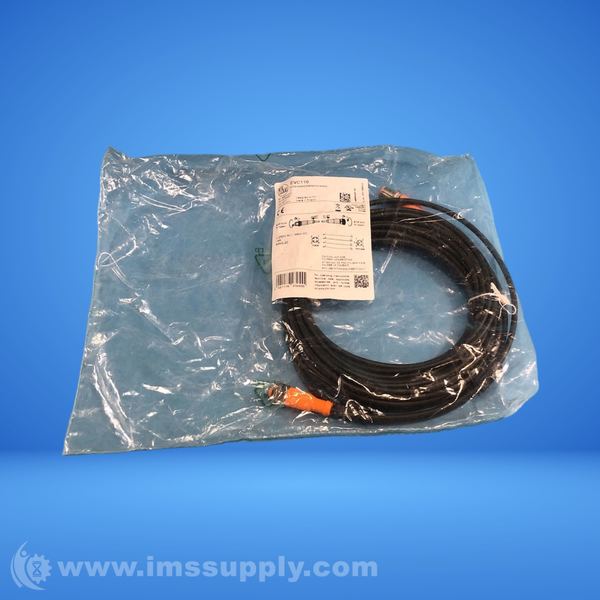

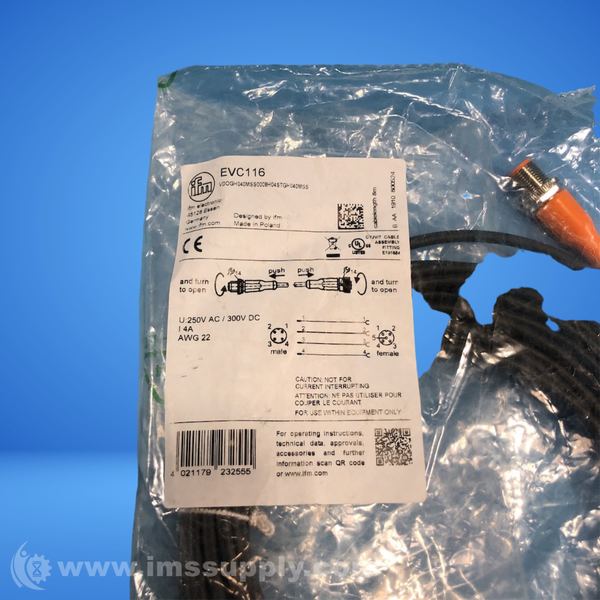

Ifm EVC116 Connection Cable
Connection cable offering permanent, reliable sealing even when mounted without tools. The cable is resistant to oils and coolants, has a high protection rating for the requirements of harsh industrial environments, and is vibration and shock-resistant thanks to a coupling ring with a locking mechanism. Lastly, a mechanical end stop protects the o-ring from destruction.
Specifications
- Operating voltage: 250 AC / 300 DC
- Protection class: II
- Max. current load total: 4 A
- Ambient temperature: -25 to 90 degrees C
- Protection: IP 65, IP 67, IP 68, IP 69K
- Connection technology: M12 plug / M12 socket
- Electrical design: AC / DC
- Design: straight / straight
- Material body: housing: TPU (urethane) orange; sealing: Viton
- Material nut: brass; nickel-plated
- Tightening torque for knurled nut: plug: 0.6...1.5 Nm; socket: 0.6...1.5 Nm
- Drag chain suitability: Bending radius for flexible applications: min. 10 x cable diameter; Travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s²; Bending cycles: > 5 million; Torsional strain: ± 180 degrees/m
- Weight: 0.285 kg
- Electrical connection: PUR cable / 8 m; 4 x 0.34 mm² (42 x Ø 0.1 mm); Ø 4.9 mm; halogen-free
- Sheath color: black
