IFM EVC400 CONNECTION CABLE
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: EVC400
IMS Product Code: 2146072
Packaging: Sold Individually
Description:

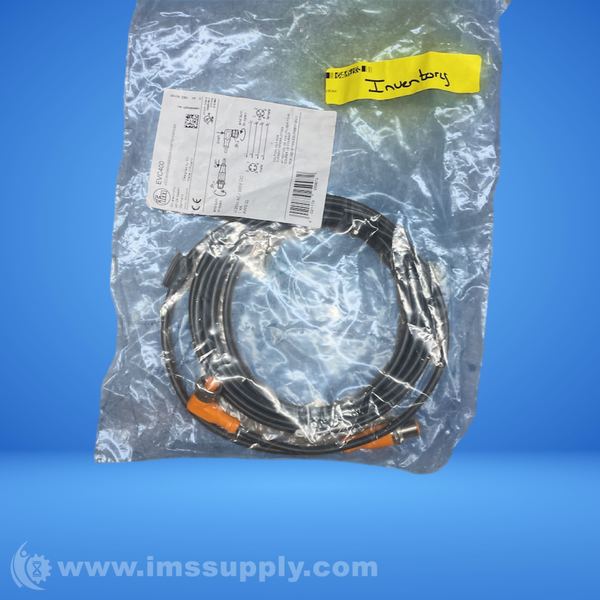

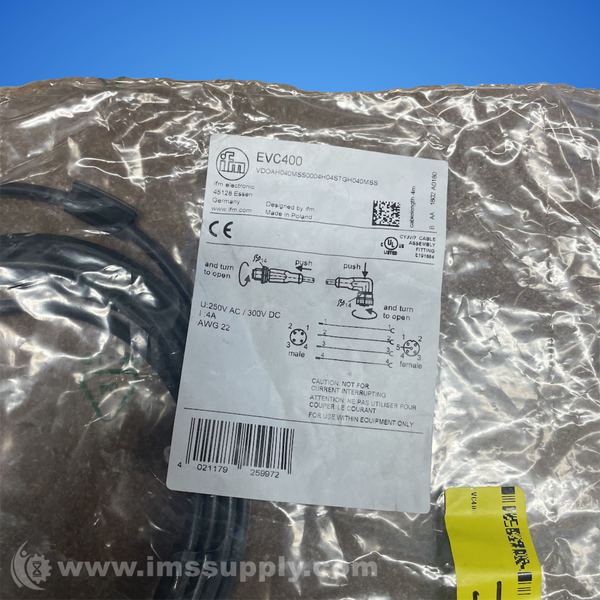

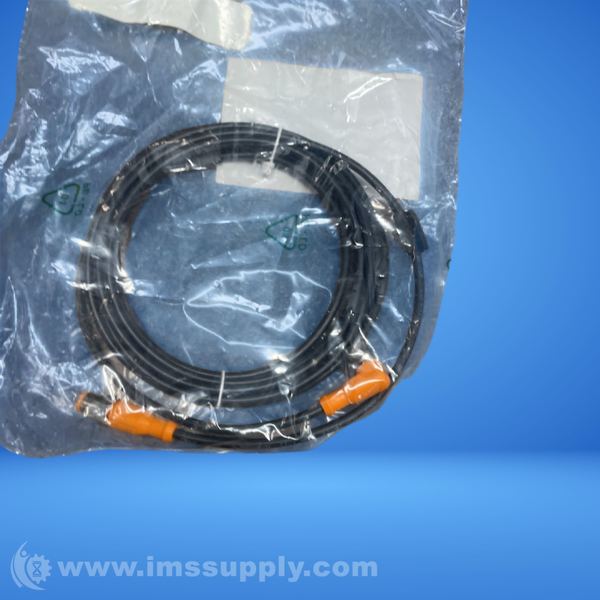

Ifm EVC400 Connection Cable
4 M connection cable, 4 pole male straight/5 pole female 90 degrees, M12
Specifications
- Operating voltage [V]: < 250 AC / < 300 DC
- Protection class: II
- Max. current load total [A]: 4
- Ambient temperature [C]: -25...90
- Storage temperature [C]: -25...55
- Protection: IP 65; IP 67; IP 68; IP 69K
- Weight [g]: 140.4
- Material: housing: TPU (urethane) orange; sealing: FKM
- Material nut: brass, nickel-plated
- Drag chain suitability: yes
- Bending radius for flexible applications: min. 10 x cable diameter
- Torsional strain: ± 180 °/m
- Electrical connection - plug: Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
- Electrical connection: Cable: 4 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
- Electrical connection - Socket: Connector: 1 x M12, angled; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
