IGUS CF30.250.04 MOTOR CABLE
Quick Overview
Manufactured By: IGUS
Manufacturer Part Number: CF30.250.04
IMS Product Code: 1800942
Packaging: Sold Individually
Description:

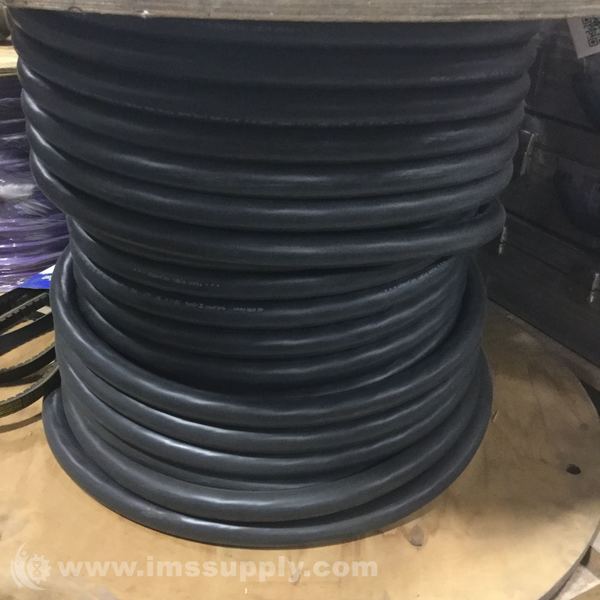

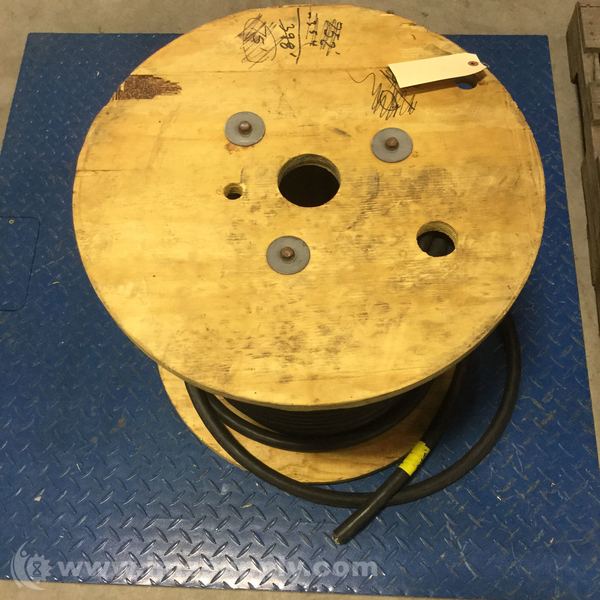

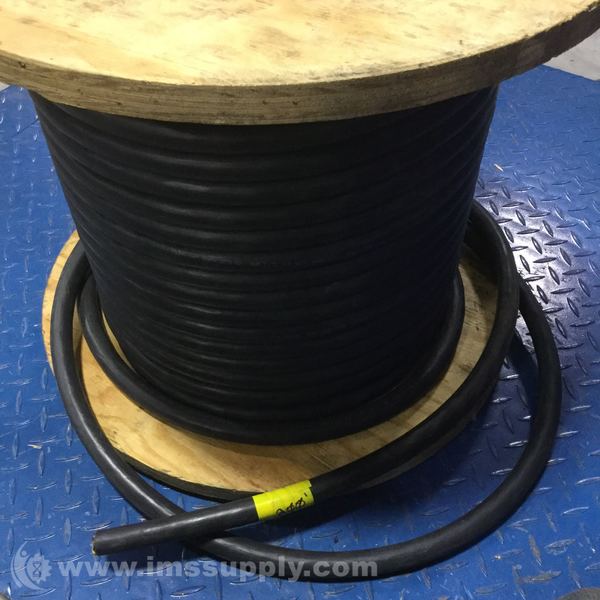

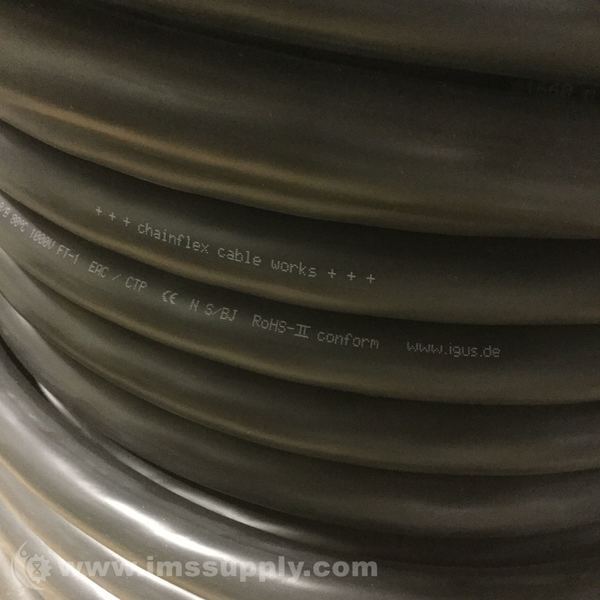

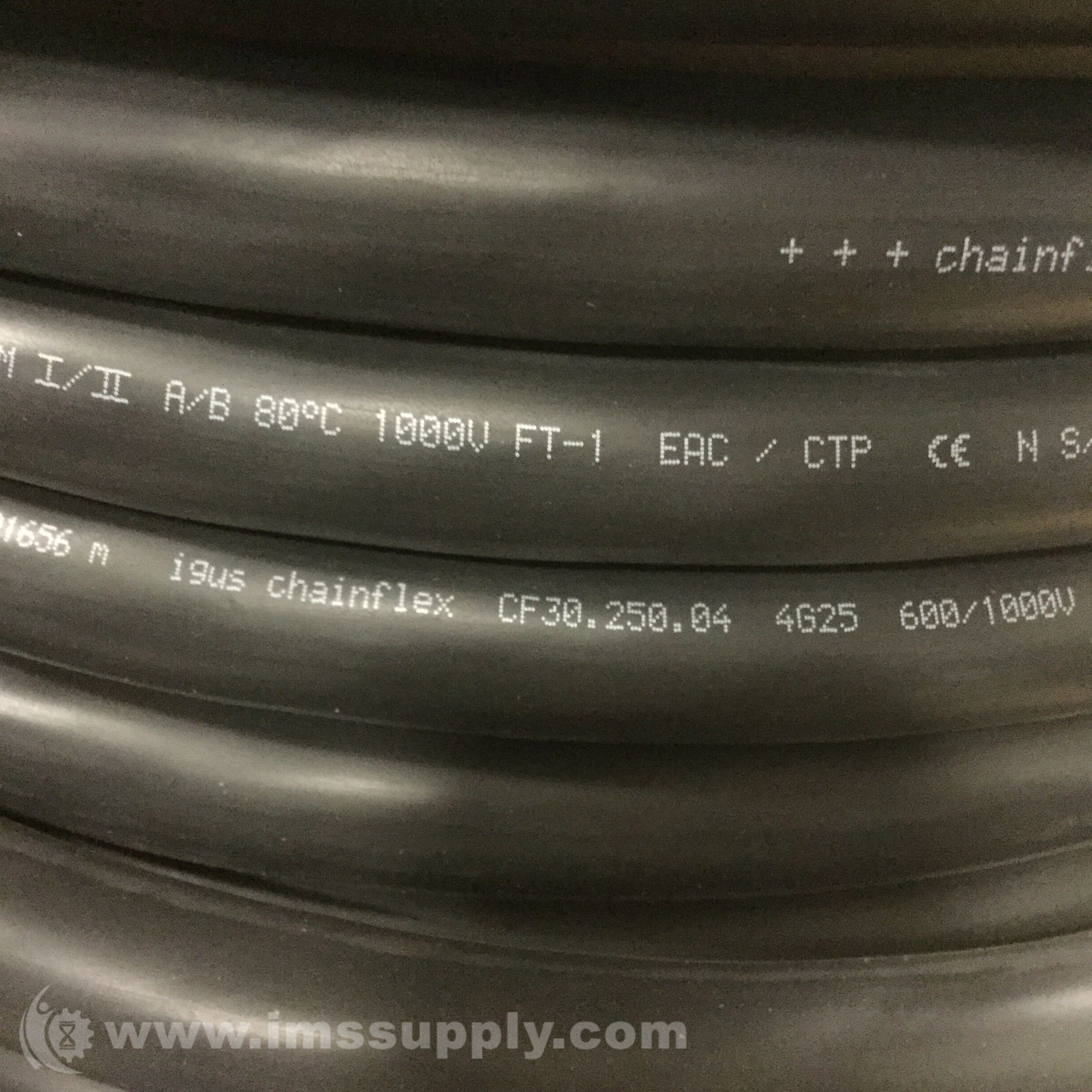

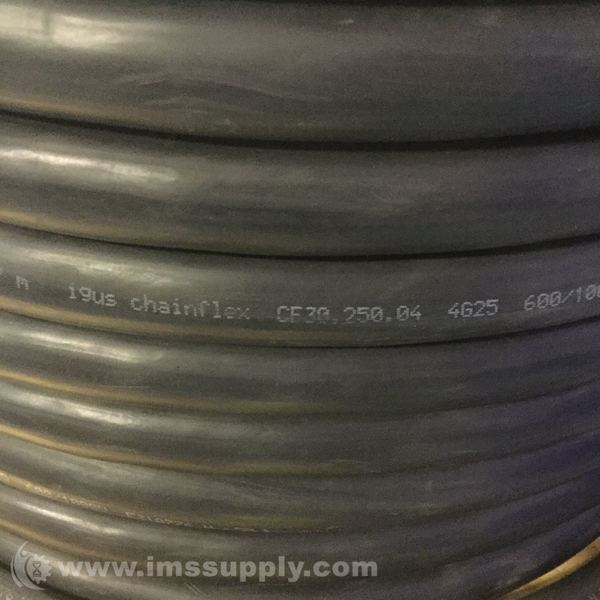

Igus CF30.250.04 Motor Cable

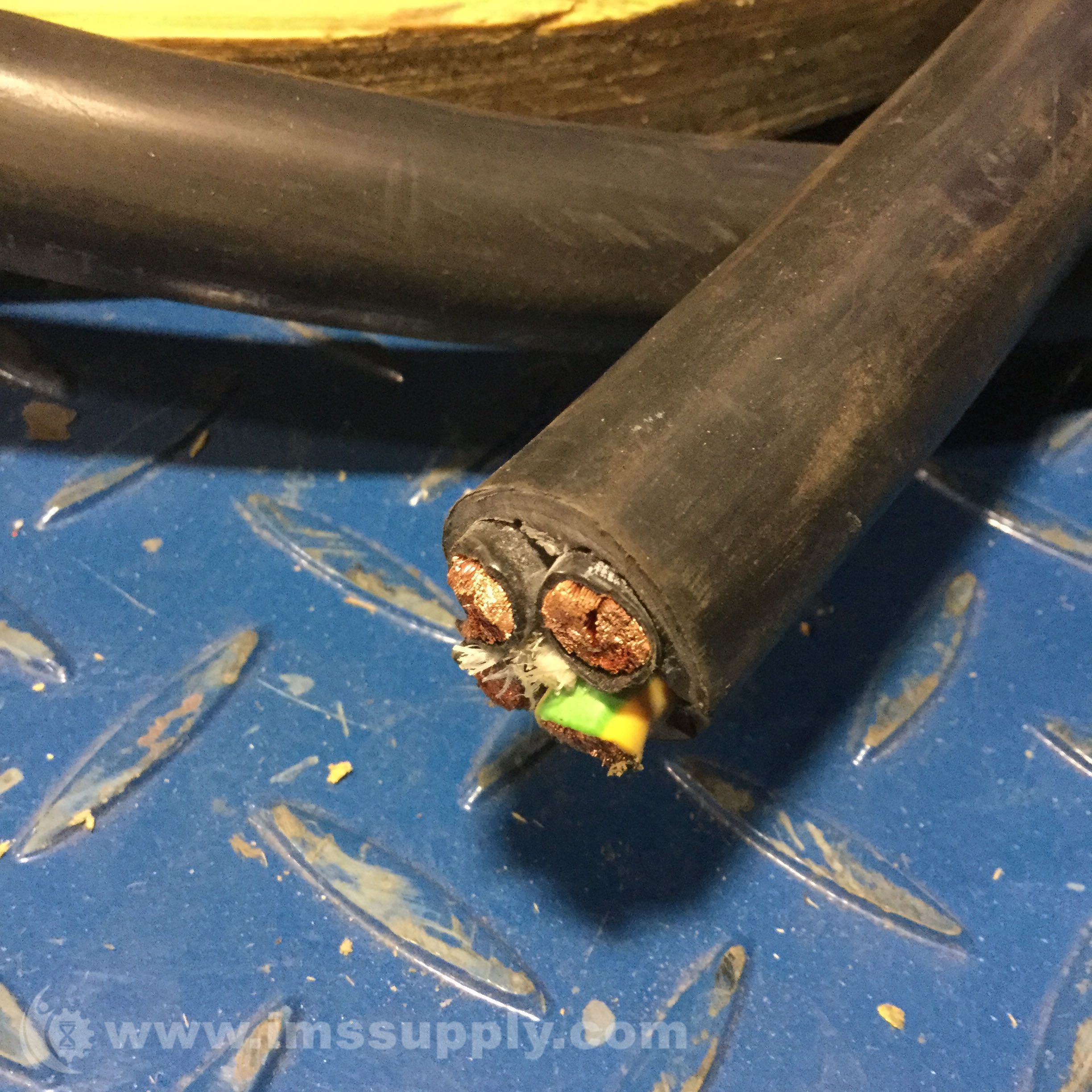

4-conductor motor cable with 25mm² stranded copper conductors, PVC insulation and jacket, unshielded, rated for 1000V.
Specifications
- Cable Structure: 4G25mm2
- Wire Insulation Material: PVC
- Insulation Colour: black
- Core Structure: stranded
- Kind of Core: Cu
- Operating Temperature: -5...70°C
- Core Section: 25mm2
- Number of Cores: 4
- Cable External Diameter: 26mm
- Rated Voltage: 0.6kV/1kV
- Shield Structure: unshielded
- Earth Core: yellow-green
- Resistance To: torsion, UV rays
- Cable Features: self-supporting
- Conform To The Norm: UL 2570 UL 10492
- AWG Size: 4
- Number of Conductors: 4
- Rated Cross Section: 25.0 mm²
- Conductor: Bare Copper
- Jacket: PVC
- Shielding Type: Unshielded
- Outer Diameter: 0.98 inch
- Voltage: 1000 V
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 12 hours and 59 minutes.
