IGUS KBRI-04 ROD END
Quick Overview
Manufactured By: IGUS
Manufacturer Part Number: KBRI-04
IMS Product Code: 2132503
Packaging: Sold Individually
Description:

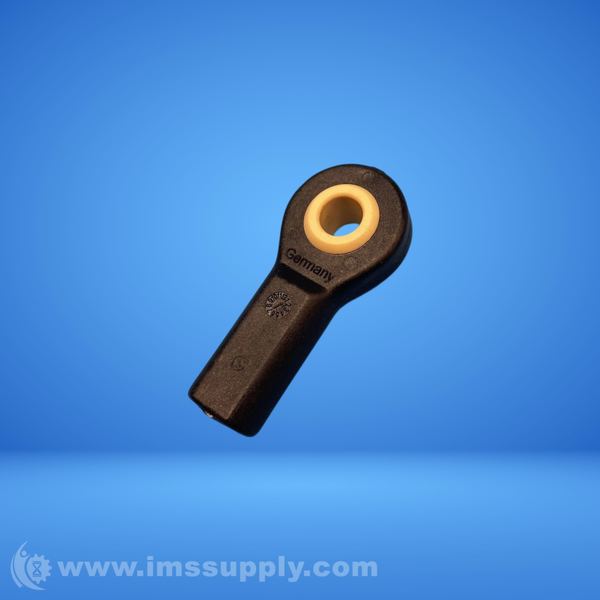

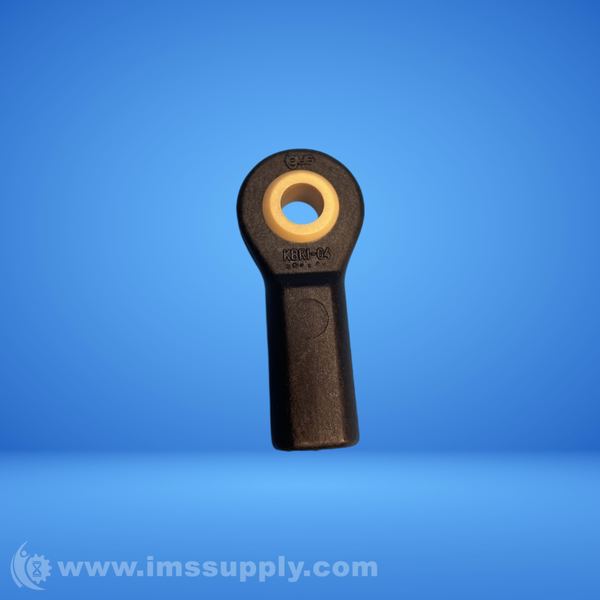

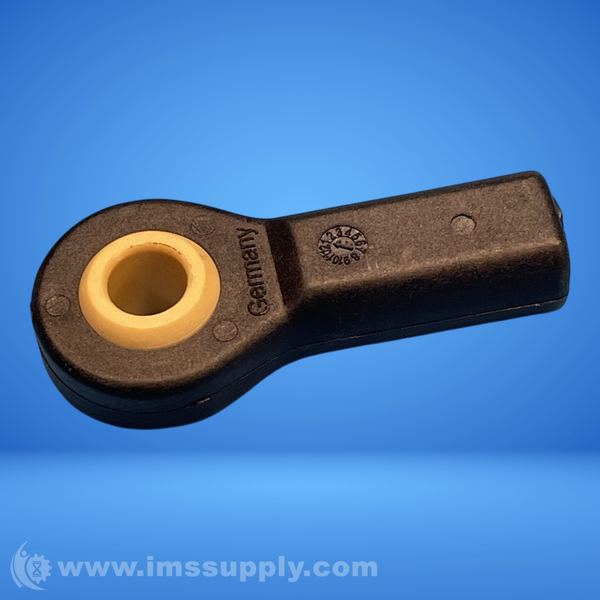

Igus KBRI-04 Rod End
A maintenance-free rod end with a spherical plain bearing and steel-on-PTFE sliding contact. Used for connecting shafts or mounting on hydraulic/pneumatic cylinders, accommodating misalignment and supporting radial forces.
Specifications
- Inner Diameter: 6.35 mm (0.25 inch)
- Outer Diameter: 19.05 mm (0.75 inch)
- Width: 9.27 mm (0.365 inch)
- Thread Size: 1/4-28
- Thread Type: Female, Right Hand
- Material: Housing - igumid G, Ball - iglidur W300
- Contact Material: Steel on PTFE
- Max Pivot Angle: 25 degrees
- Max Static Tensile Strength (short term): 1100 N
- Max Static Tensile Strength (long term): 550 N
- Max Radial Load (short term): 400 N
- Max Radial Load (long term): 200 N
- Max Torque Outside Thread: 5 Nm
- Max Torque Through Ball: 4 Nm
- Operating Temperature Range: -30 to +80 degrees C (long term), up to +120 degrees C (short term)
- Weight: 5.1 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
