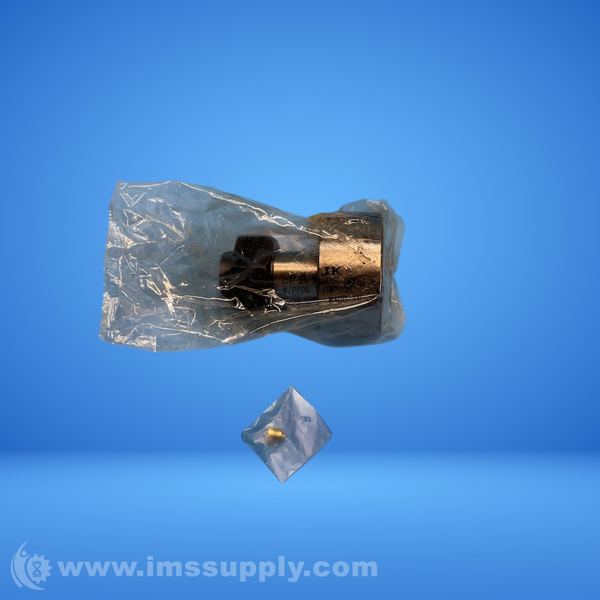

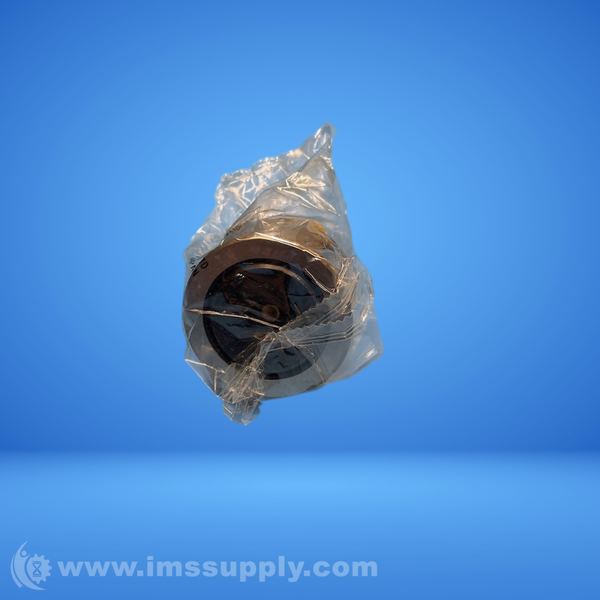

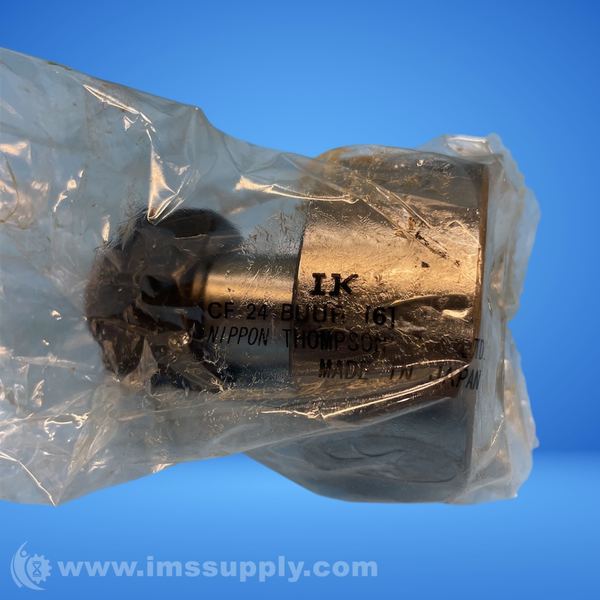

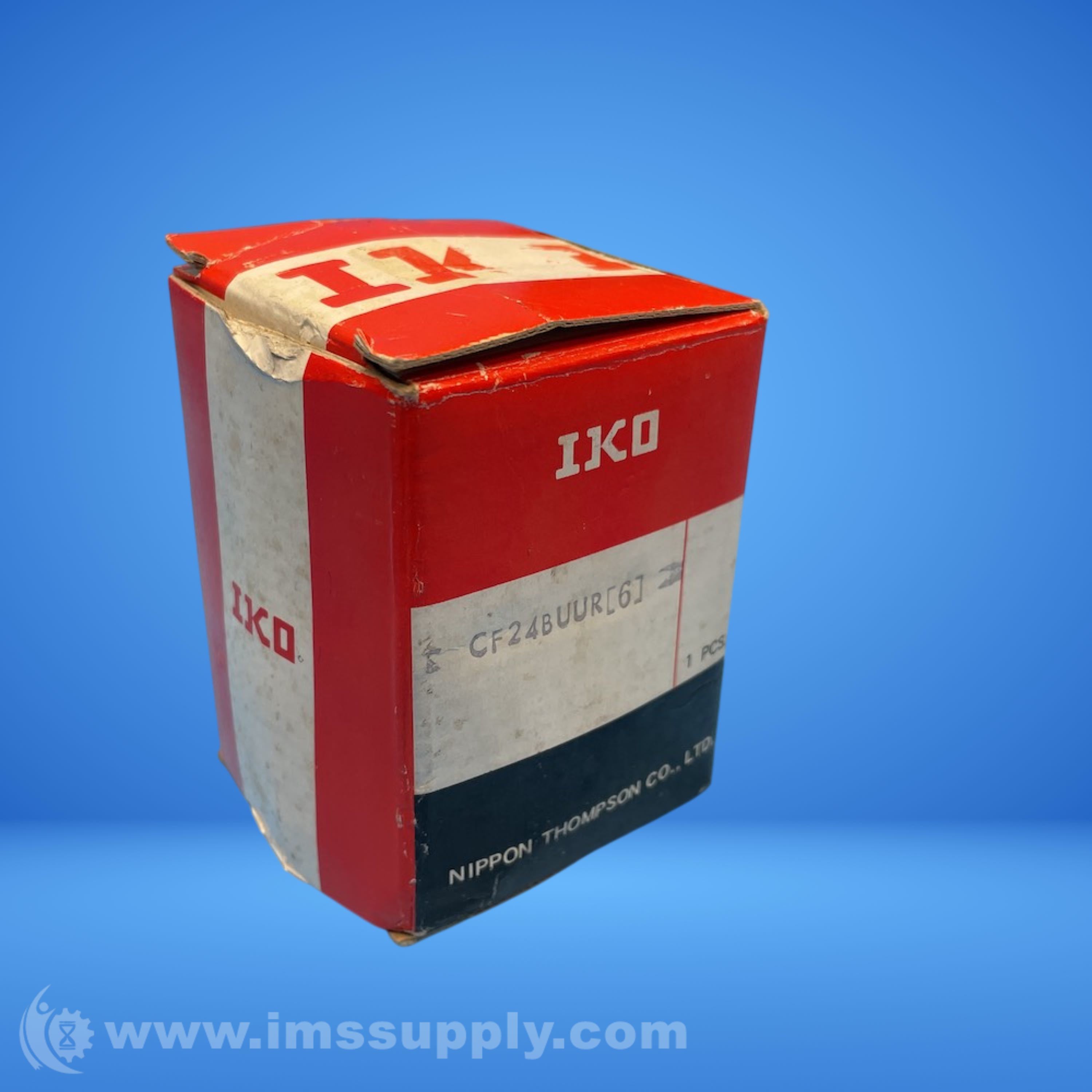

IKO CF24BUUR CAM FOLLOWER
Quick Overview
Manufactured By: IKO
Manufacturer Part Number: CF24BUUR
IMS Product Code: 2156991
Packaging: Sold Individually
Description:
IKO CF24BUUR Cam Follower
IKO Cam Followers are bearings with a stud that incorporates needle rollers in a thick-walled outer ring. These bearings are designed for outer ring rotation and provide superior rotational performance, a low coefficient of friction, and high load capacity. The CF24BUUR is a standard metric cam follower with a crowned outer ring, sealed enclosure, and hex head. It is made of high carbon steel and has a caged retainer.
Specifications
- Material: High Carbon Steel
- Retainer: Caged
- Roller Diameter: 62 mm
- Roller Width: 29 mm
- Stud Diameter: 24 mm
- Thread Size: M24 x 1.5
- Thread Length: 25 mm
- Dynamic Load Capacity: 30500 N
- Static Load Capacity: 52600 N
- Temperature Rating: -20 to 120 degrees C
- Sealing: Sealed
- Head Type: Hex
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
