IKO CRBC6013UU CROSSED ROLLER BEARING
Quick Overview
Manufactured By: IKO
Manufacturer Part Number: CRBC6013UU
IMS Product Code: 2167547
Packaging: Sold Individually
Description:

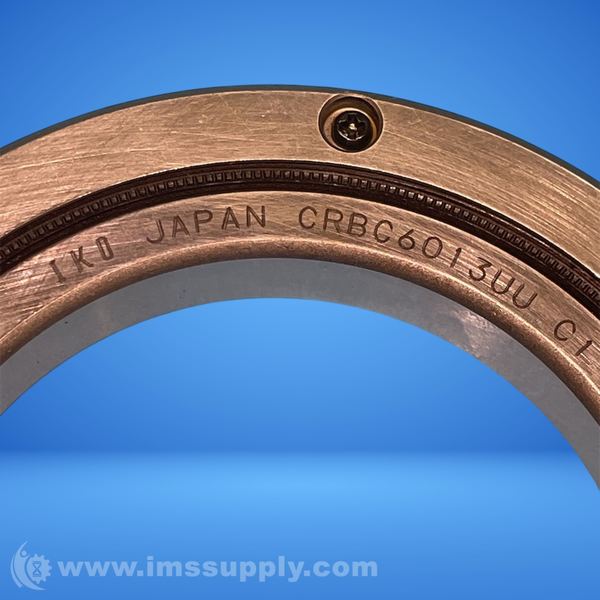

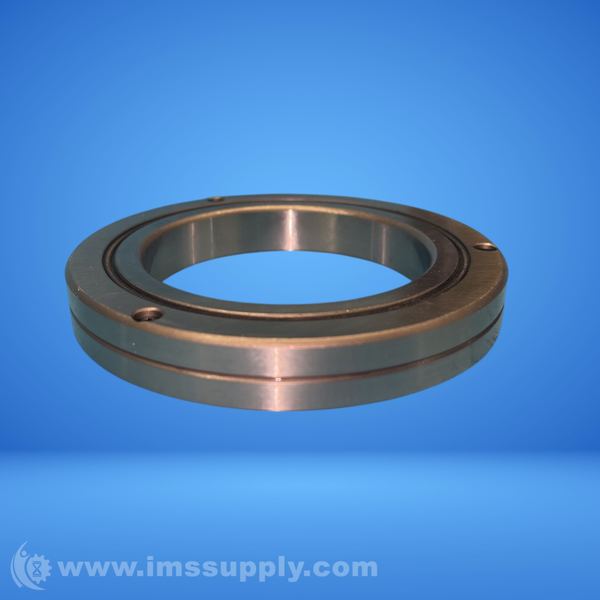

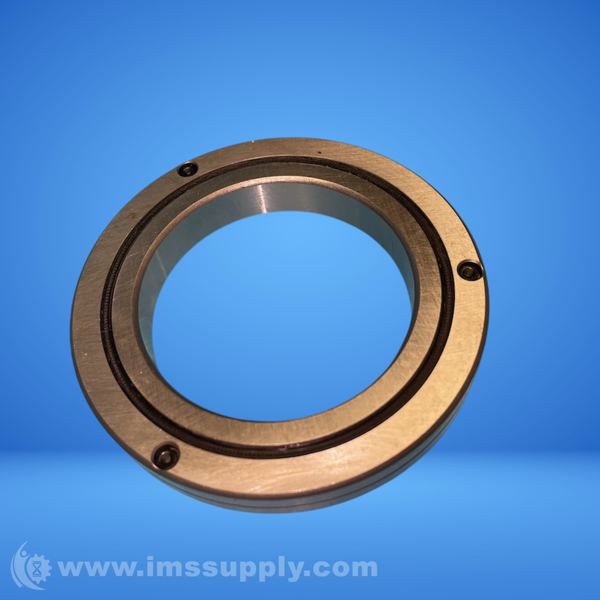

IKO CRBC6013UU Crossed Roller Bearing
Crossed roller bearing for machinery and robot arms, sealed, with cage, metric measurement.
Specifications
- Material: Chrome Steel
- Sealing Type: Sealed
- System of Measurement: Metric
- Application: Machinery; Robot Arm
- Feature: High Precision; Cross Roller
- For Load Direction: Combined Radial; Thrust; and Moment
- Dynamic Load Rating: 11.6KN
- Static Load Rating: 14.6KN
- Moment Rating: 1000 N�m
- Weight: 0.33kg
- Bearing Type: Crossed Roller
- Construction: Single Row
- Separator: With Cage
- ABEC Rating: ABEC-5 ABEC-7 ABEC-9
- Shaft dia. mm: 60
- Bore Dia (d): 60
- Outer Dia (D): 90
- Width (B): 13
- r(min): 0.6
- Shoulder height ds(max): 67
- Shoulder height Dh(min): 82
- Basic load rating (radial)C kN: 18
- Basic load rating (radial)Co kN: 24.3
