IKO NURT25R CYLINDRICAL ROLLER FOLLOWER
Quick Overview
Manufactured By: IKO
Manufacturer Part Number: NURT25R
IMS Product Code: 2124890
Packaging: Sold Individually
Description:

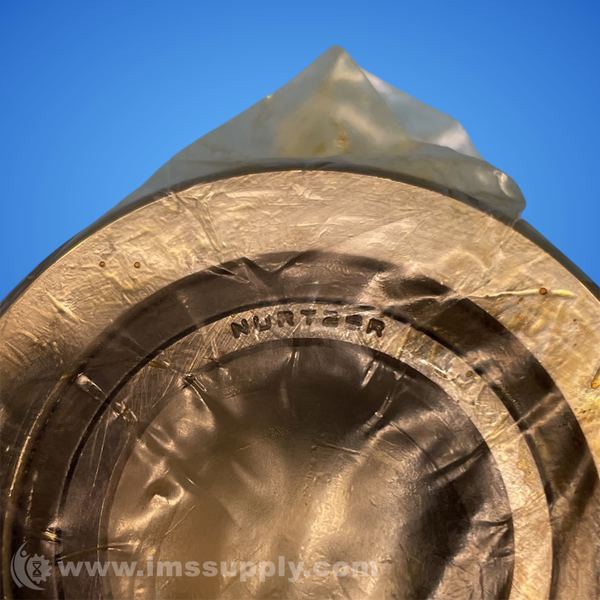

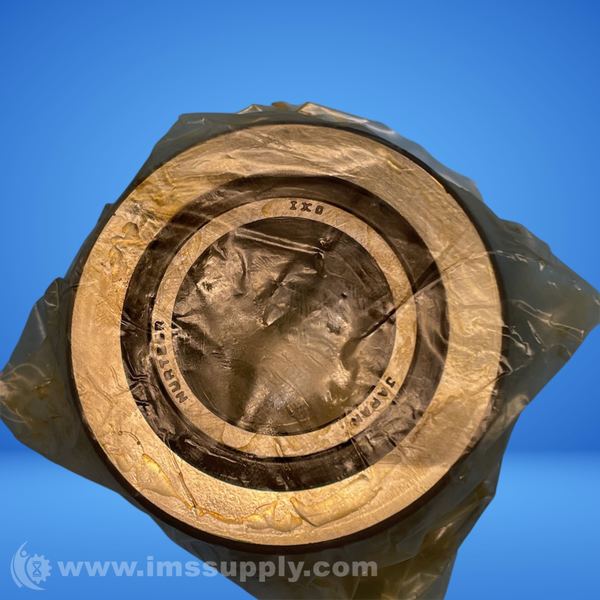

IKO NURT25R Cylindrical Roller Follower
Heavy Duty Uncaged Cylindrical Roller Follower with Crowned Outer Ring, Inner Ring and Oil Hole
Specifications
- Type: Heavy Duty Uncaged
- Series: NURT Metric Series
- Bore Diameter: 25 mm
- Roller Diameter: 52 mm
- Roller Width: 24 mm
- Overall Width: 25 mm
- Load Capacity: 43100 N Dynamic/58100 N Static
- Closure Type: Shielded
- Temperature Rating: -20 to 120 deg C
- Roller Material: High Carbon Chrome Steel
- Dynamic Load Capacity: 43100 N
- Static Load Capacity: 58100 N
- Enclosure: Shielded
- Retainer: Full Complement
- Roller Surface Profile: Crowned
- Internal Diameter (d): 25mm
- External Diameter (D): 52mm
- Inner Ring Width (B): 25mm
- Outer Ring Width (C): 24mm
- Side Plate Diameter (a): 31mm
- Radius (rs min): 1mm
- Radius (r1s min): 0.3mm
- Basic Dynamic Load Rating (C): 43100N
- Maximum Allowable Static Load: 30000N
- Track Capacity: 5190N
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
