INA NATR15-PP CROWNED YOKE ROLLER
Quick Overview
Manufactured By: INA
Manufacturer Part Number: NATR15-PP
IMS Product Code: 828440
Packaging: Sold Individually
Description:

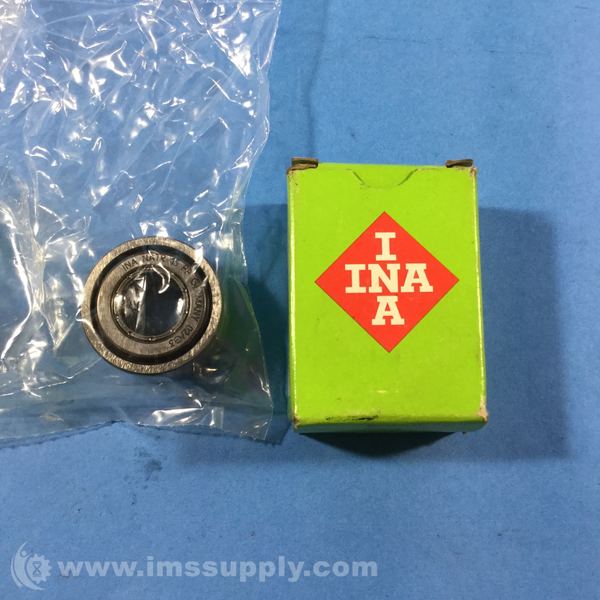

INA NATR15-PP Crowned Yoke Roller
Crowned yoke roller bearing with 35 mm roller diameter, 15 mm bore diameter, and 18 mm roller width. Sealed with three-stage sealing on both sides.
Specifications
- Roller Shape: Crowned
- Roller Diameter: 35 mm
- Bore Diameter: 15 mm
- Roller Width: 18 mm
- Bearing Element: Plain Bearings
- Closure Type: Sealed
- Operating Temperature Range: -30 to +100 degrees C
- Radial Dynamic Load Capacity: 2180 lbf
- Radial Static Load Capacity: 3150 lbf
- Max Rpm: 7000 rpm
- Lubrication Hole Location: Inner Ring
- Seal Type: Three-stage sealing both sides with plastic axial plain washers
- Finish Coating: Uncoated
- Series: NATR-PP
- Weight: 0.25 lbs
- Cage: Sheet steel cage
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
