INA NKX20-Z-XL NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: INA
Manufacturer Part Number: NKX20-Z-XL
IMS Product Code: 1911453
Packaging: Sold Individually
Description:

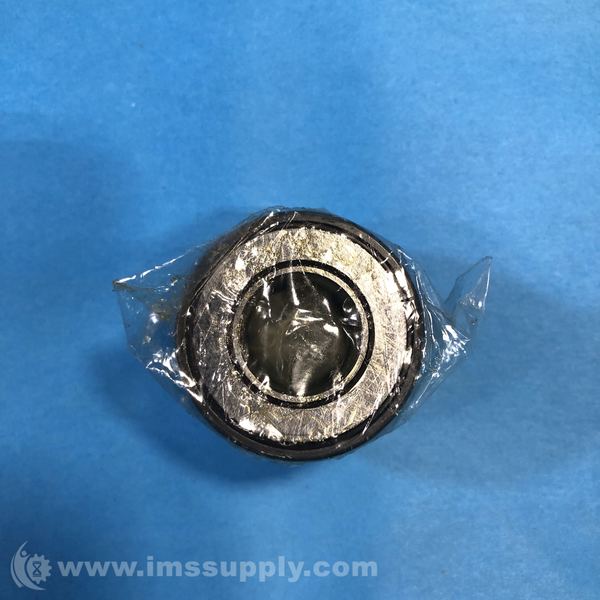

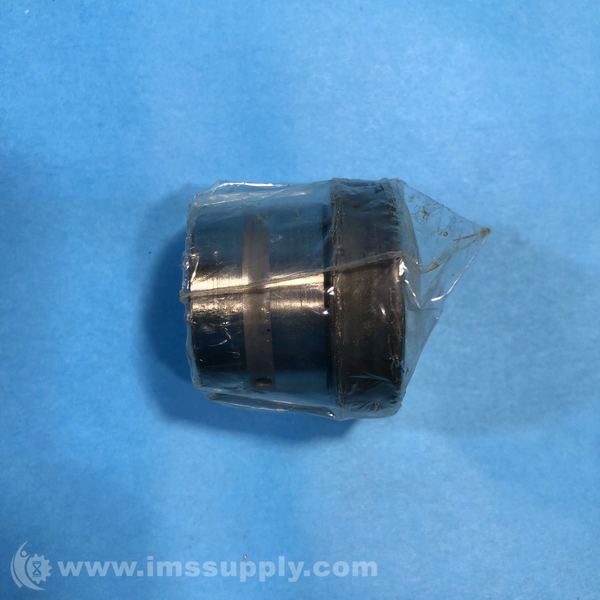

INA NKX20-Z-XL Needle Roller Bearing
Needle roller/axial ball bearing, single direction, 20 mm bore, 30 mm OD, 30 mm width
Specifications
- Inner Diameter: 20 mm
- Outer Diameter: 30 mm
- Width: 30 mm
- Seal: Z - Steel Seal on One Side
- Weight: 0.09 kg
- Basic static load rating, radial: 23,800 N
- Basic static load rating, axial: 24,700 N
- Basic dynamic load rating, radial: 18,600 N
- Basic dynamic load rating, axial: 14,200 N
- Limiting speed: 7,500 rpm
- Series: NKX
- Cage Material: Sheet Steel
- Operating Temperature: -30 to 120 degrees C
