INA RNA4904 NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: INA
Manufacturer Part Number: RNA 4904
IMS Product Code: 1789727
Packaging: Sold Individually
Description:

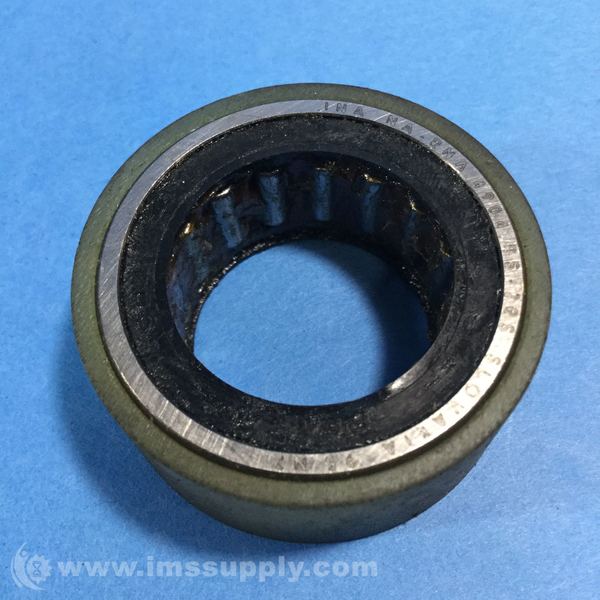

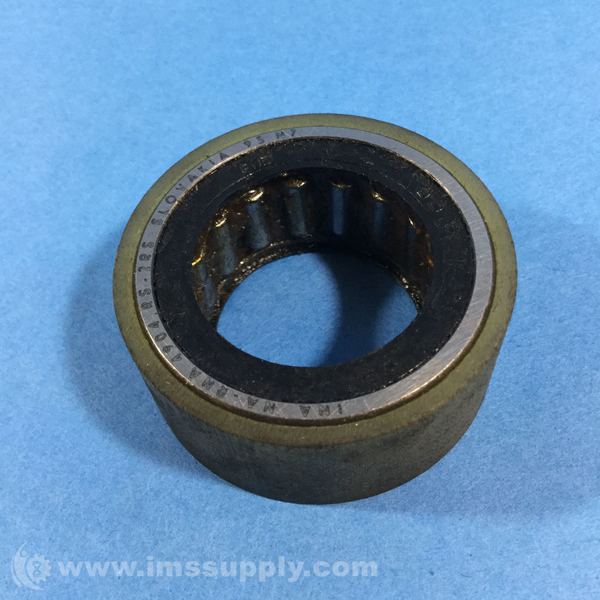

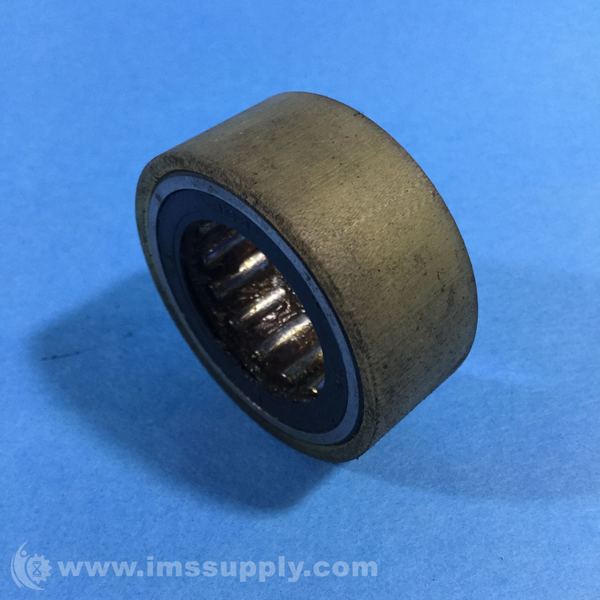

INA RNA4904 Needle Roller Bearing
Needle roller bearing without inner ring, machined design, open construction.
Specifications
- Bore Diameter: 25 mm
- Outside Diameter: 37 mm
- Overall Width: 17 mm
- Closure Type: Open
- Radial Dynamic Load Capacity: 4700 lbf
- Operating Temperature Range: -20 to +120 degrees C
- Cage Material: Steel
- Radial Static Load Capacity: 5700 lbf
- Max Rpm: 17000 rpm
- Series: RNA
- Lubrication Hole Type: Lubrication Groove & Hole
- Precision Rating: Not Rated
- Standards Met: DIN 617/ISO 1206
- Weight: 0.14 lbs
- Material: Steel
- Seal: None, open bearing
- Tolerance Class: P0/PN2 / ABEC 1
- Inner Ring: Without inner ring
- Groove with Lubrication Hole(s): Groove with lubrication hole(s)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
