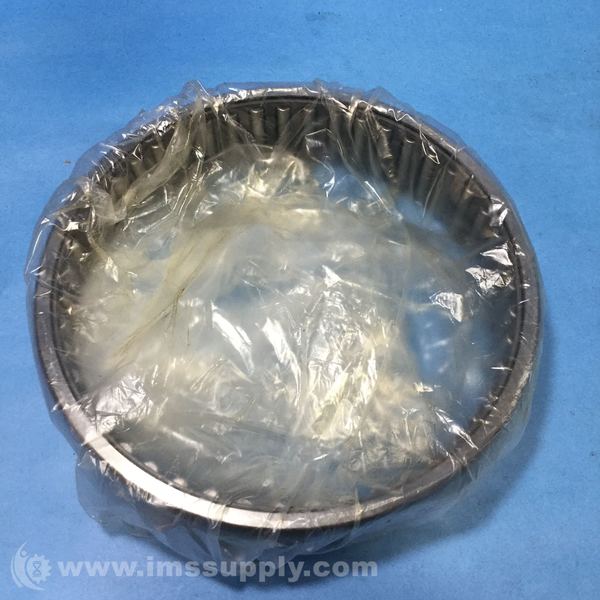

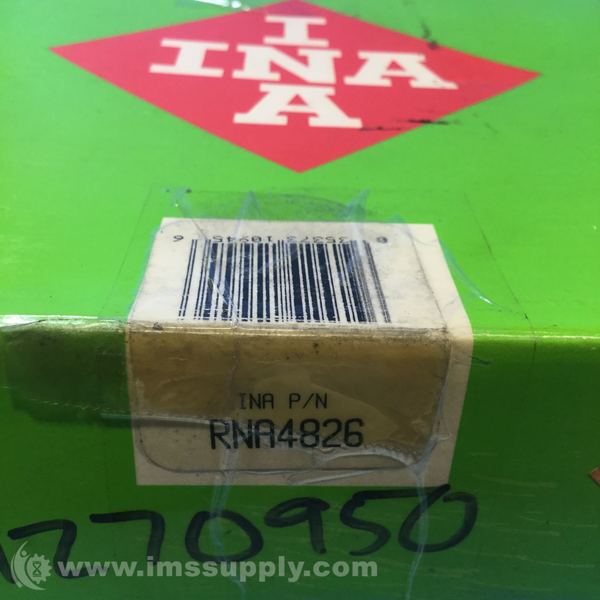

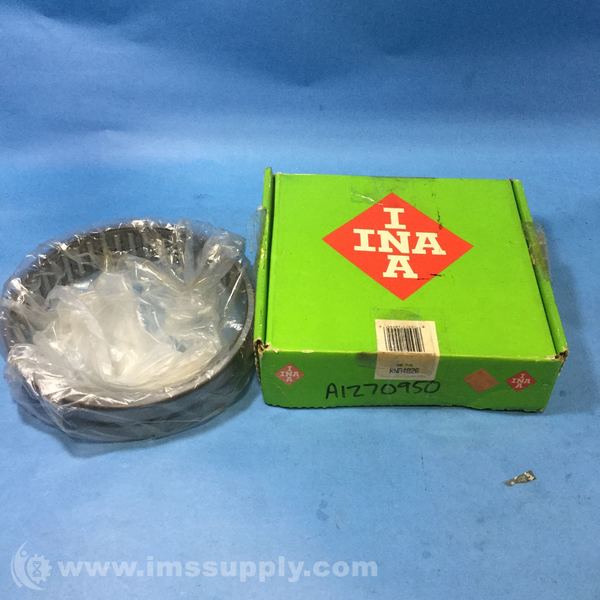

INA RNA4826 NEEDLE ROLLER BEARING
Quick Overview
Manufactured By: INA
Manufacturer Part Number: RNA4826
IMS Product Code: 1793069
Packaging: Sold Individually
Description:
INA RNA4826 Needle Roller Bearing
Needle roller bearing with machined design, no inner ring, open closure type, and steel cage material.
Specifications
- Bore Diameter: 145 mm
- Outside Diameter: 165 mm
- Overall Width: 35 mm
- Closure Type: Open
- Radial Dynamic Load Capacity: 26500 lbf
- Operating Temperature Range: -20 to +120 degrees C
- Cage Material: Steel
- Radial Static Load Capacity: 70000 lbf
- Max Rpm: 3200 rpm
- Series: RNA
- Lubrication Hole Type: Lubrication Groove & Hole
- Precision Rating: Not Rated
- Standards Met: DIN 617/ISO 1206
- Weight: 2.61 lbs
- Basic Dynamic Load Rating: 11,900 KGF
- Basic Static Load Rating: 34,700 KGF
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
