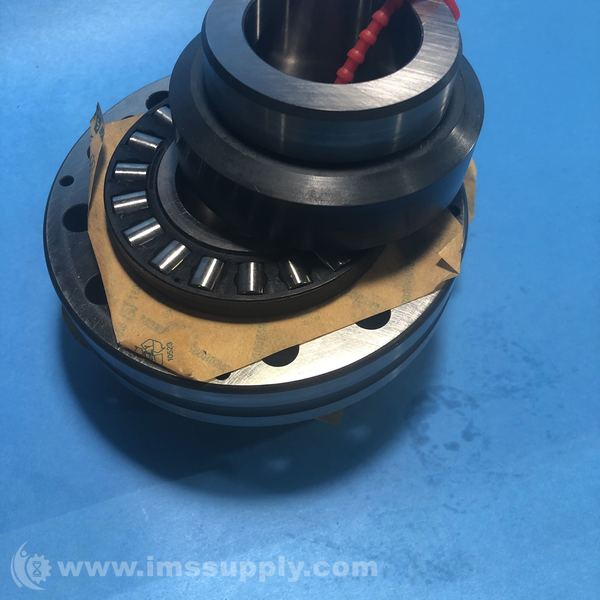

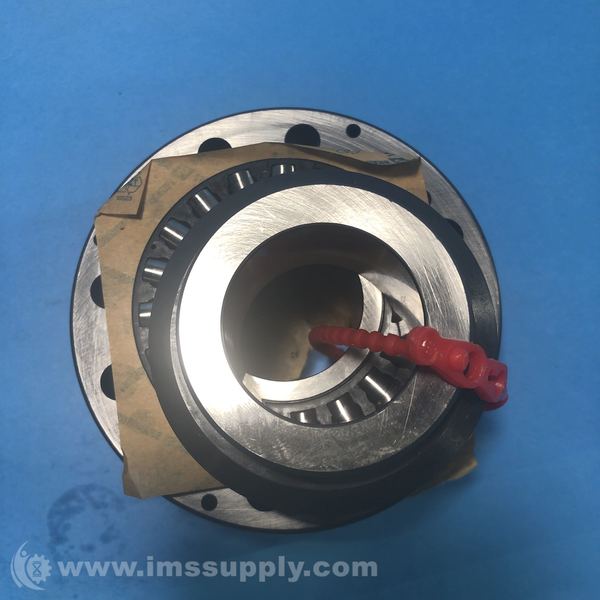

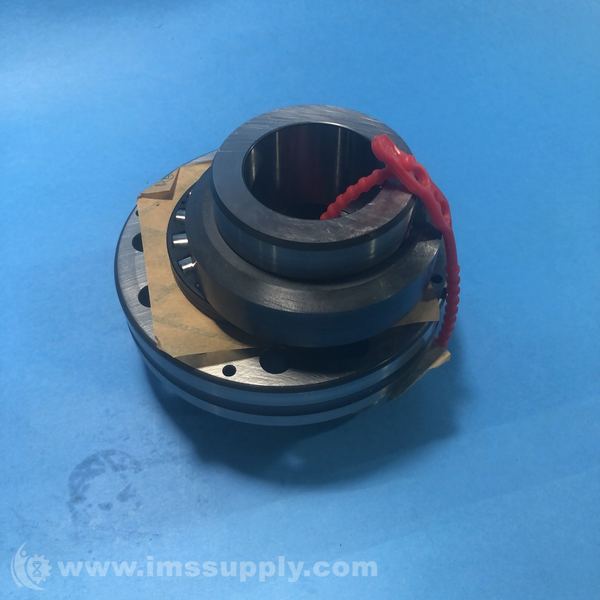

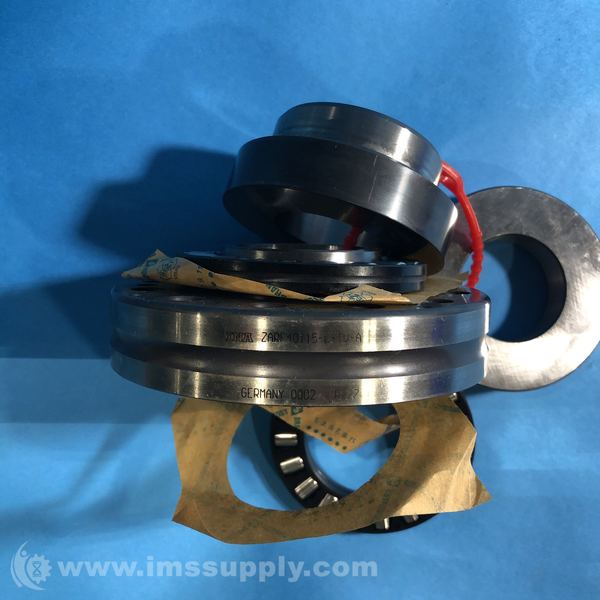

INA ZARF40115-L-TV-A NEEDLE ROLLER/AXIAL CYLINDRICAL ROLLER BEARING
Quick Overview
Manufactured By: INA
Manufacturer Part Number: ZARF40115-L-TV-A
IMS Product Code: 2174941
Packaging: Sold Individually
Description:
INA ZARF40115-L-TV-A Needle Roller/Axial Cylindrical Roller Bearing
Double direction needle roller/axial cylindrical roller bearing for screw mounting with long shaft locating washer.
Specifications
- Bore Diameter: 40 mm
- Outside Diameter: 115 mm
- Width: 93 mm
- Cage: Polyamide cage
- Lubrication: For grease or oil lubrication
- Material: Standard bearing steel
- Operating Direction: Double direction bearing
- Temperature Range: -20 to +120 degrees C
- Tolerance Class: Tolerance class P0/PN2 / ABEC 1
- Version: For screw mounting, with long shaft locating washer
- Radial Static Load Rating: 74000 N
- Radial Dynamic Load Rating: 38000 N
- Axial Static Load Rating: 315000 N
- Axial Dynamic Load Rating: 117000 N
- Limiting Speed for Grease Lubrication: 1200 rpm
- Limiting Speed for Oil Lubrication: 3700 rpm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
