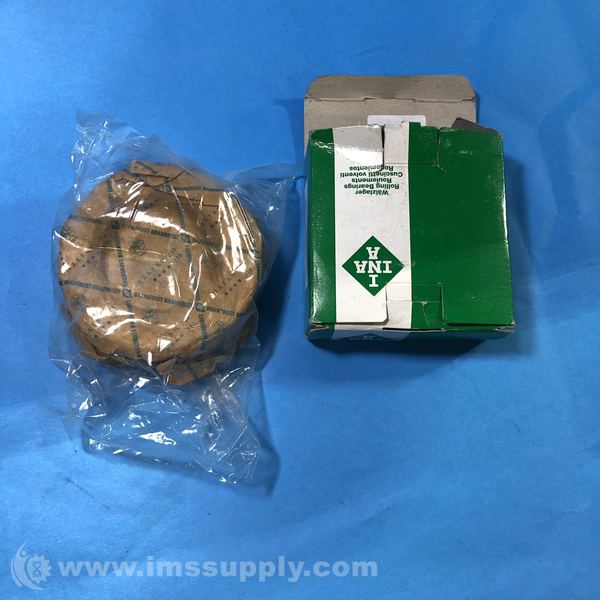

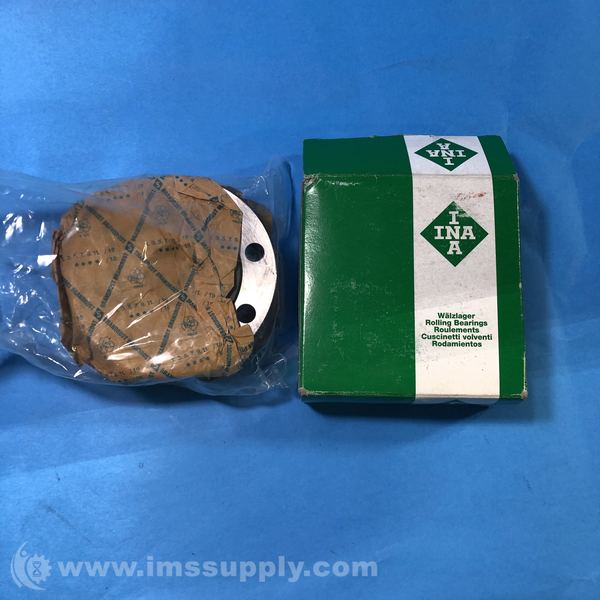

INA ZKLF30100-2Z-XL AXIAL ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: INA

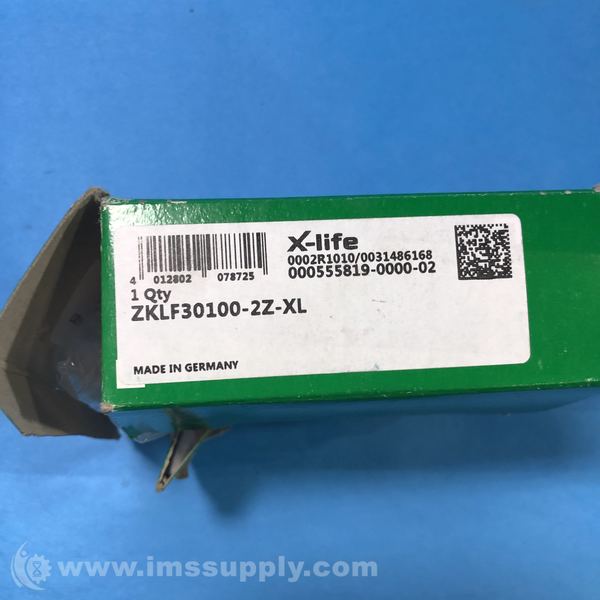

Manufacturer Part Number: ZKLF30100-2Z-XL
IMS Product Code: 1905631
Packaging: Sold Individually
Description:
INA ZKLF30100-2Z-XL Axial Angular Contact Ball Bearing
Double direction angular contact thrust ball bearing designed for screw drives and other applications requiring high running accuracy and load capacity. Consists of a plastic cage with a double row of balls, a thick-walled outer ring, and a split inner ring. 60-degree contact angle allows absorption of radial and high axial forces in both directions.
Specifications
- Series: ZKLF..-2Z
- Bore Diameter: 30 mm
- Outside Diameter: 100 mm
- Number of Rows: 2
- Width: 38 mm
- Contact Angle: 60 degrees
- Closure Type: Shielded
- Load Capacity: 65000 N Dynamic/108000 N Static/6400 N Fatigue
- Cage Material: Plastic
- Maximum Speed: 5600 rpm Limiting for Grease/4000 rpm Thermally Safe Operating
- Temperature Rating: -30 to 120 degrees C
- Material: bearing steel
- Weight: 1.69Kg
- Basic dynamic load rating, axial: 65000
- Basic static load rating, axial: 108000
- Fatigue load limit, axial: 6400
- Thermally safe operating speed: 4000
- Limiting speed for grease lubrication: 5600
- Cage Type: P - Plastic Molded Cage
- Precision: P4 Precision (Higher than P5)
- Country of Origin: Germany
