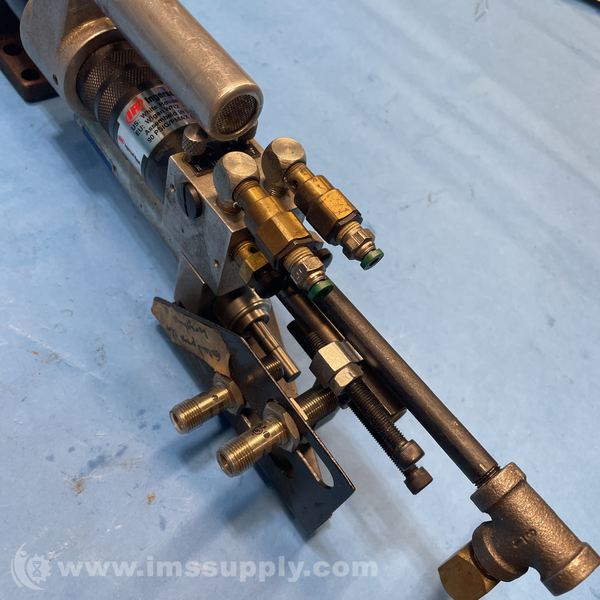

INGERSOLL RAND 8245-B45-1 SELF-FEED DRILL
Quick Overview
Manufactured By: INGERSOLL RAND
Manufacturer Part Number: 8245-B45-1
IMS Product Code: 2137251
Packaging: Sold Individually
Description:

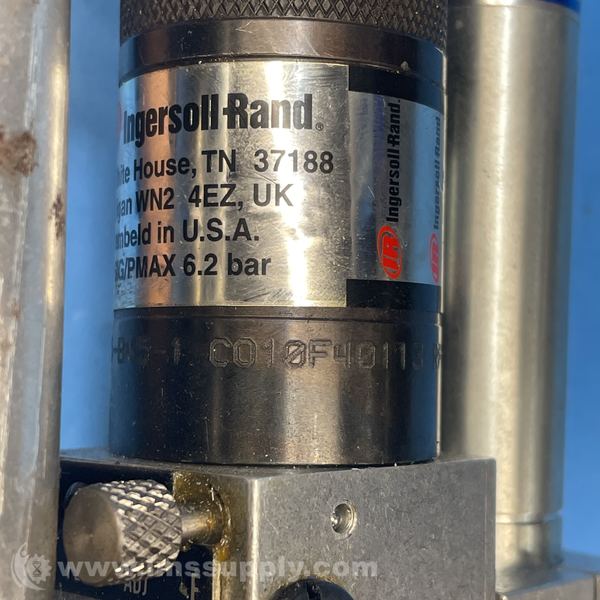

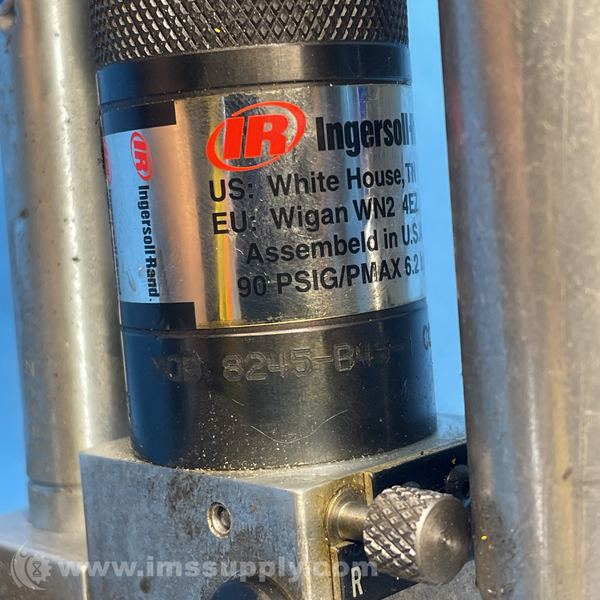

Ingersoll Rand 8245-B45-1 Self-Feed Drill
Pneumatic self-feed drill with single gear reduction and built-in four-way valve for manual and remote operation. Features double-acting air piston for smooth forward and retract strokes, needle valve control for stroke adjustment, and ball bearing spindle support.
Specifications
- Capacity: 3/16"
- Free Speed: 4400 RPM
- Thrust @ 90 PSI: 90 lbs
- Sound Level: 77 dB(A)
- Stroke Length: 1-1/4" (32 mm)
- Air Consumption @ Working Speed: 1.5 ft^3/cycle (42 L/cycle)
- Nominal Drilling Capacities - Wood/FRP: 5/32" (4.0 mm)
- Nominal Drilling Capacities - Stainless Steel 304: 1/32" (0.8 mm)
- Nominal Drilling Capacities - Steel SAE 1213: 1/16" (1.6 mm)
- Nominal Drilling Capacities - Aluminum 2024-T4: 1/8" (3.2 mm)
- Standard Chuck Capacity: 1/4" (6.4 mm)
- Weight: 4.21 LBS
- Max Pressure: 90 PSIG
Used (Special):

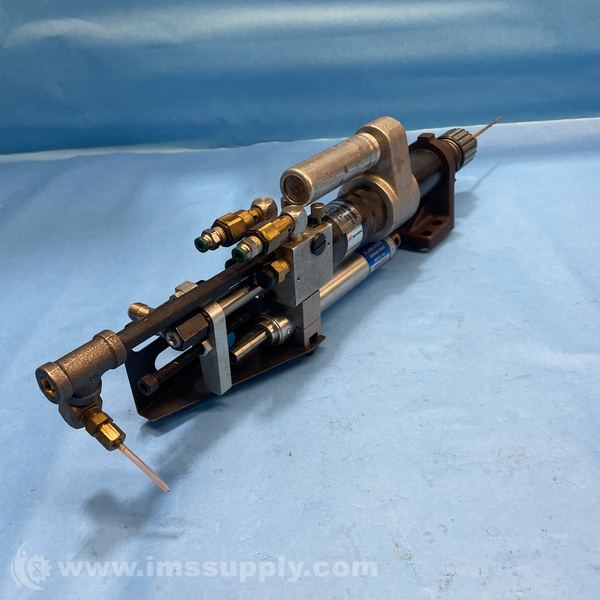

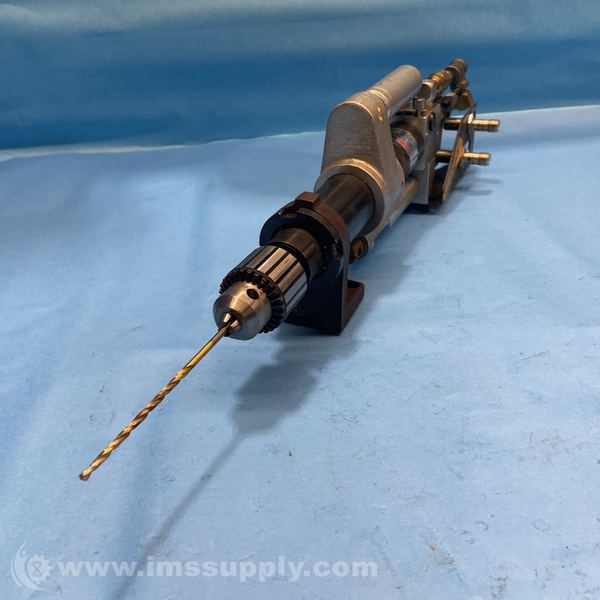

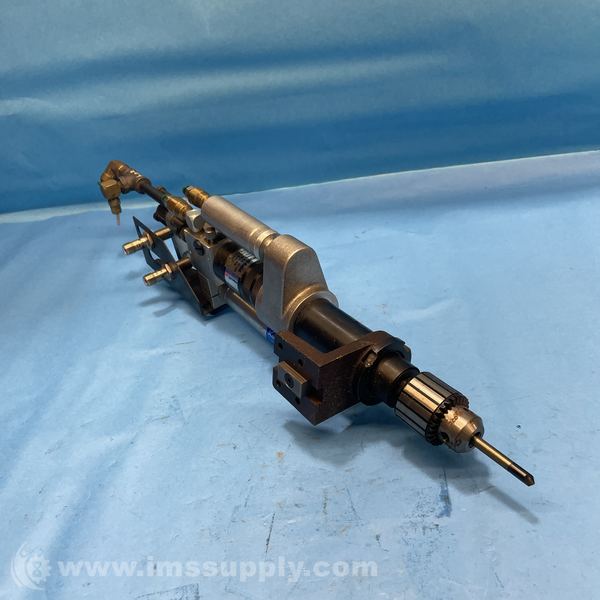

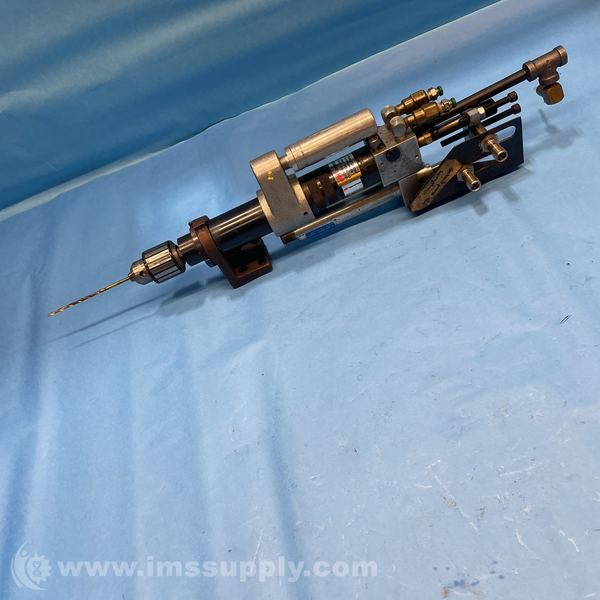

Comes with drill bit and fittings attached.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 17 minutes.
Used (Special):

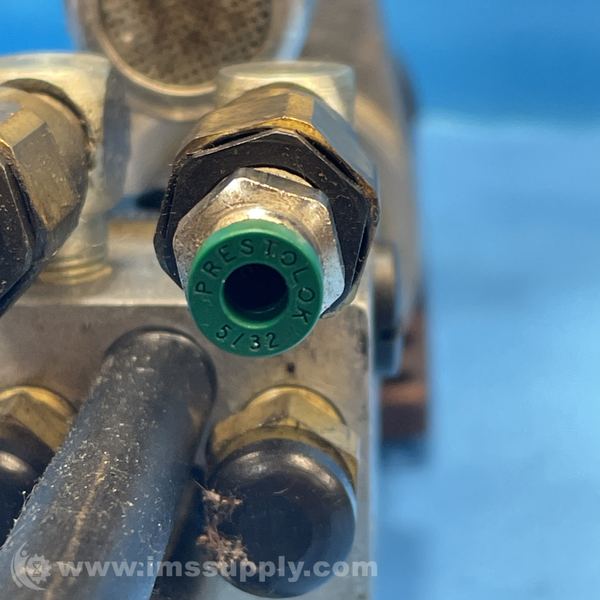

Comes with drill bit and unknown fittings attached.
