INGERSOLL RAND 8255-A50-2 SELF-FEED DRILL
Quick Overview
Manufactured By: INGERSOLL RAND
Manufacturer Part Number: 8255-A50-2
IMS Product Code: 2137269
Packaging: Sold Individually
Description:

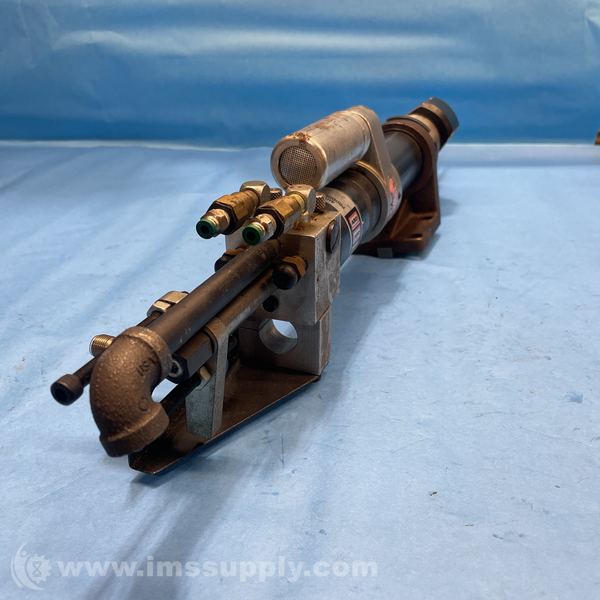

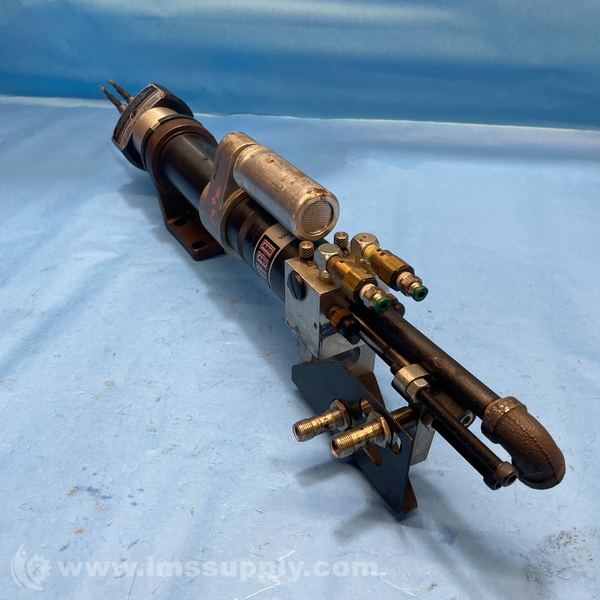

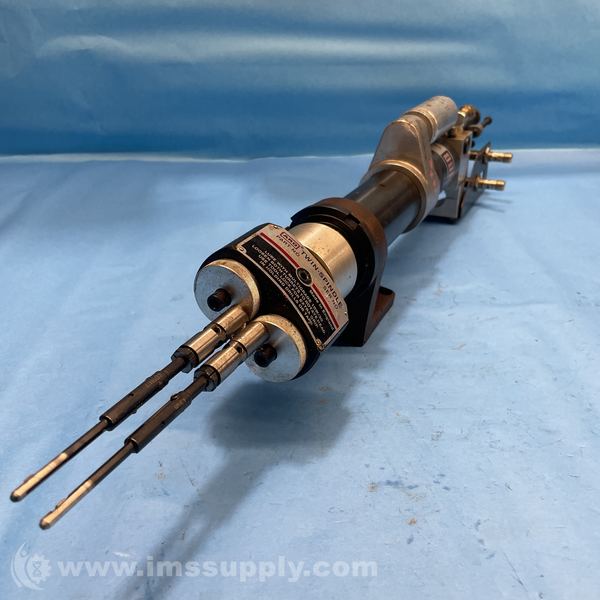

Ingersoll Rand 8255-A50-2 Self-Feed Drill
Pneumatic self-feed drill with 2-inch stroke length and 5000 RPM free speed. Features single gear reduction, built-in four-way valve for manual and remote operation, and double-acting air piston for smooth strokes.
Specifications
- Free Speed: 5000 RPM
- Gear Reduction: Single
- Air Consumption @ Working Speed: 2.3 ft³/cycle (65 L/cycle)
- Thrust @ 90 PSI: 170 lbs (N)
- Sound Level: 74 dBA
- Stroke Length: 2 inches (51 mm)
- Nominal Drilling Capacity - Wood/FRP: 3/16 inch (4.8 mm)
- Nominal Drilling Capacity - Steel SAE 1213: 5/64 inch (2.0 mm)
- Nominal Drilling Capacity - Aluminum 2024-T4: 3/16 inch (4.8 mm)
- Weight: 9.20 LBS
- Chuck Size: 3/8 inch (9.5 mm)
Used (Special):
Comes with fittings and drill bit attached.
