IPTCI SUCTFB 205 16 3-BOLT FLANGE BRACKET
Quick Overview
Manufactured By: IPTCI
Manufacturer Part Number: SUCTFB 205 16
IMS Product Code: 2129105
Packaging: Sold Individually
Description:

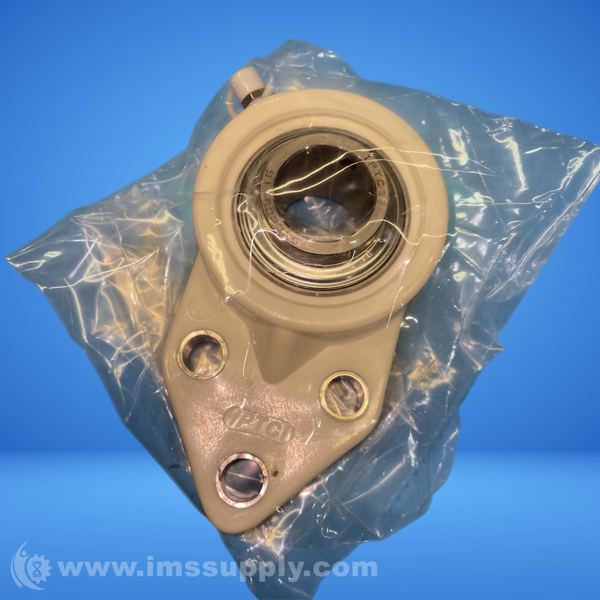

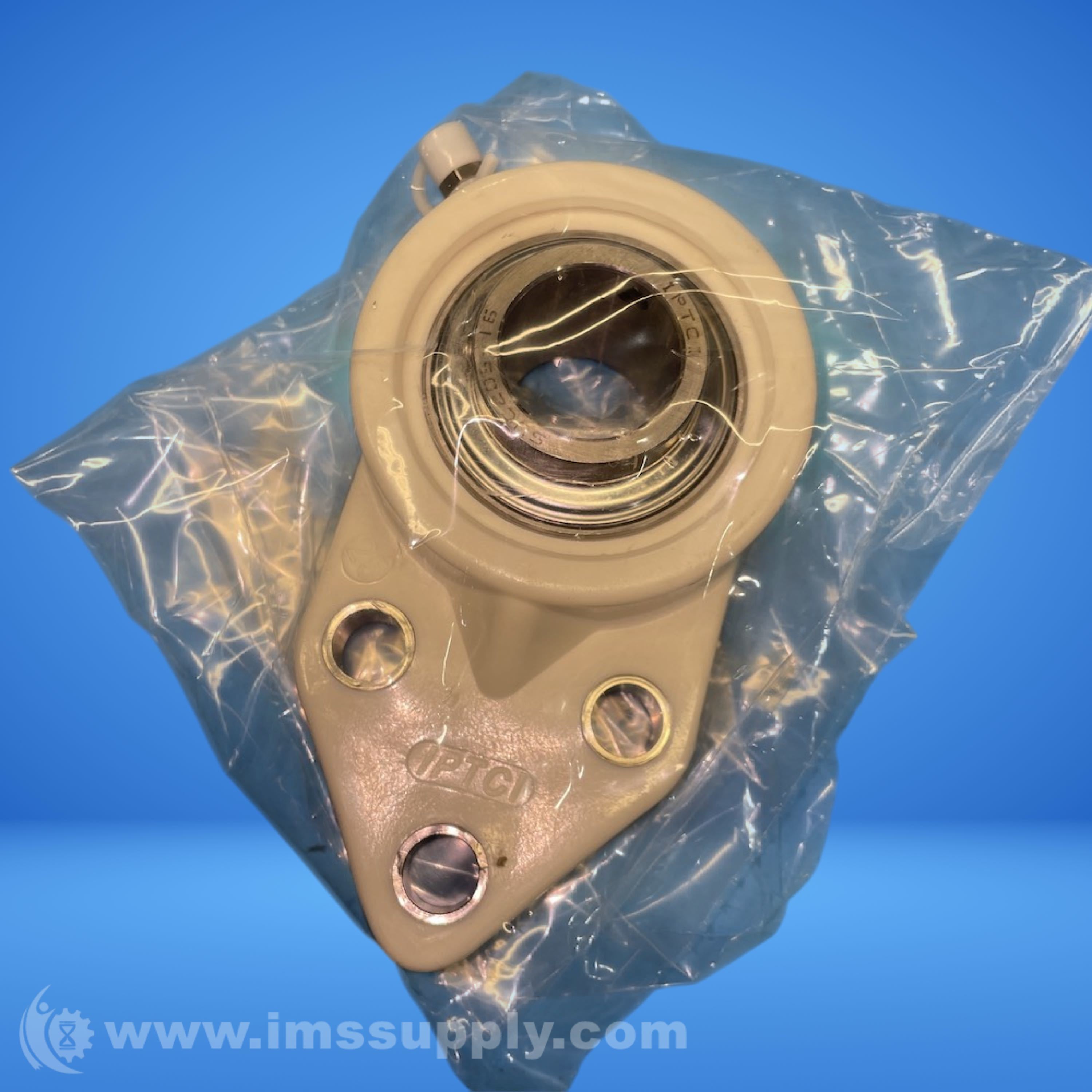

IPTCI SUCTFB 205 16 3-Bolt Flange Bracket
Thermoplastic 3-bolt flange bracket with stainless steel bearing insert and set screw lock.
Specifications
- Bore Diameter: 1 inch
- Housing Material: Thermoplastic
- Mounting Style: 3-bolt flange design
- Locking Mechanism: Set screw lock
- Weight: 0.7 lb
- Shaft Diameter: 1 inch
- Seal Type: B-Type, L3-Type
- Dimensions: W=4.75 in, B=2.75 in, D=2.5 in, L=1.34 in, S=0.39 in, G=0.44 in, H=1.81 in, J=1.13 in, E=1.63 in, I=0.66 in, Z=1.46 in, Bi=1.34 in, N=0.56 in, M=0.78 in
- Bolt Used: 5/16 in
- Number of Mounting Holes: 3
- Rolling Element: Ball Bearing
- Relubricatable: Yes
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 8 In Stock
Ships today if ordered in the next 13 hours and 14 minutes.
