IPTCI UC207-20 BALL INSERT BEARING
Quick Overview
Manufactured By: IPTCI
Manufacturer Part Number: UC207-20
IMS Product Code: 2146872
Packaging: Sold Individually
Description:

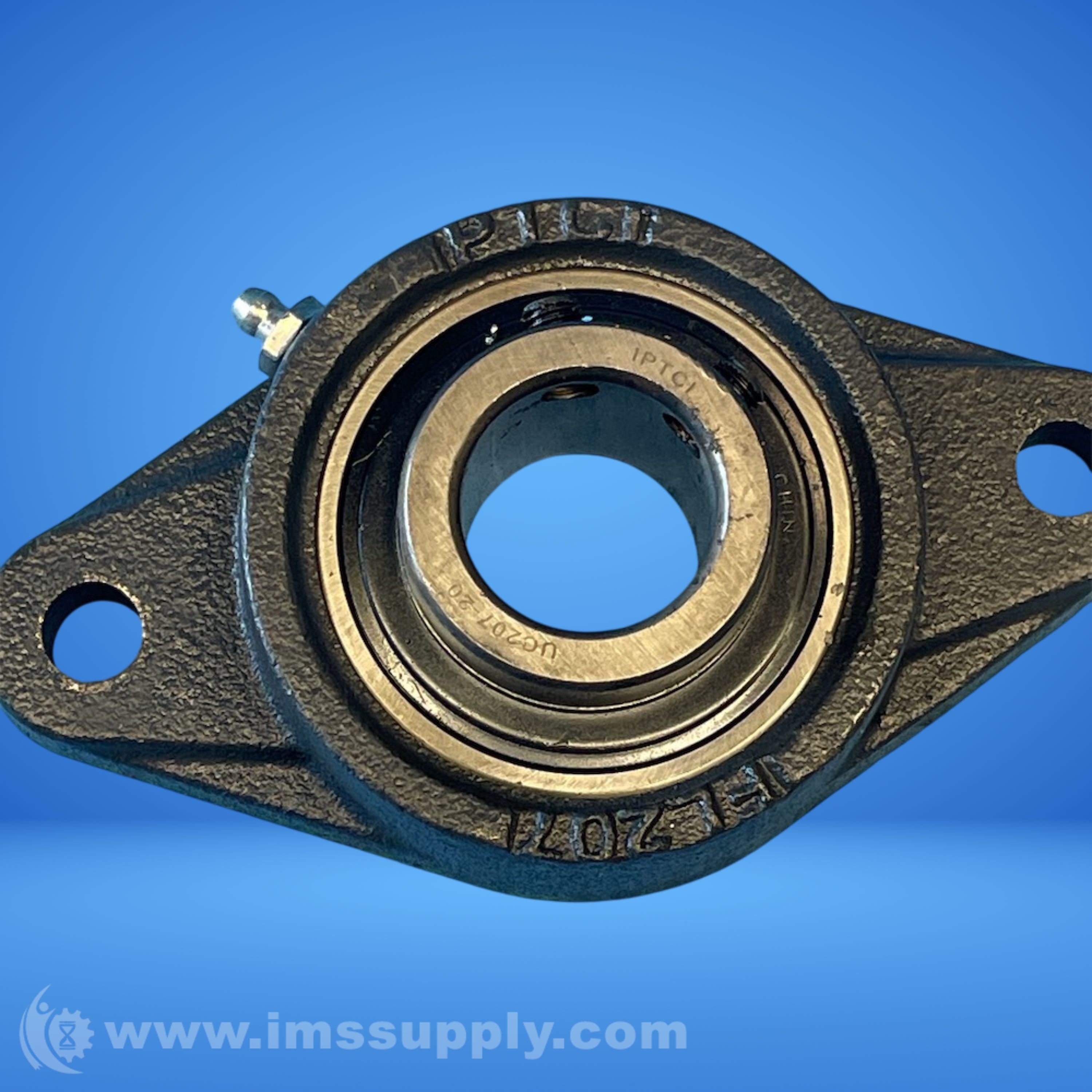

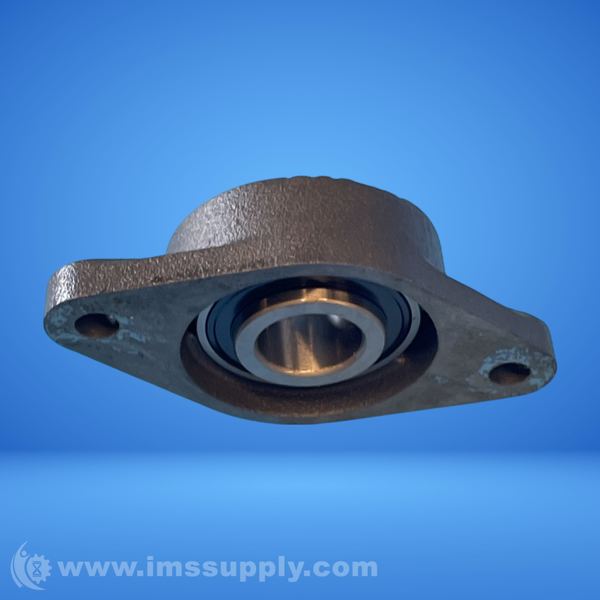

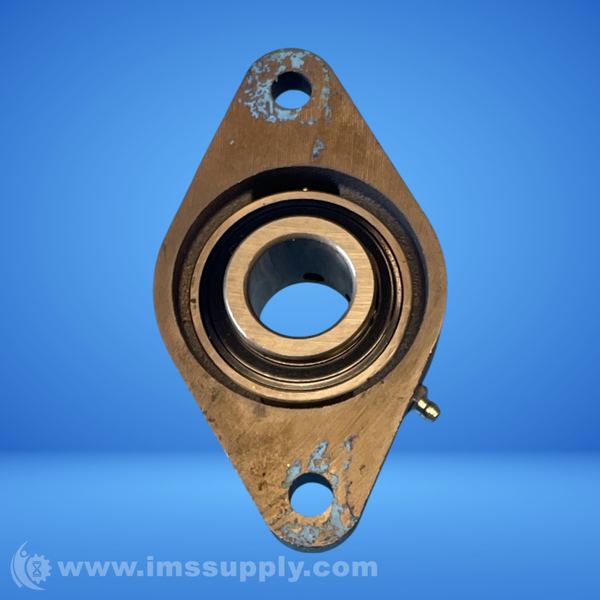

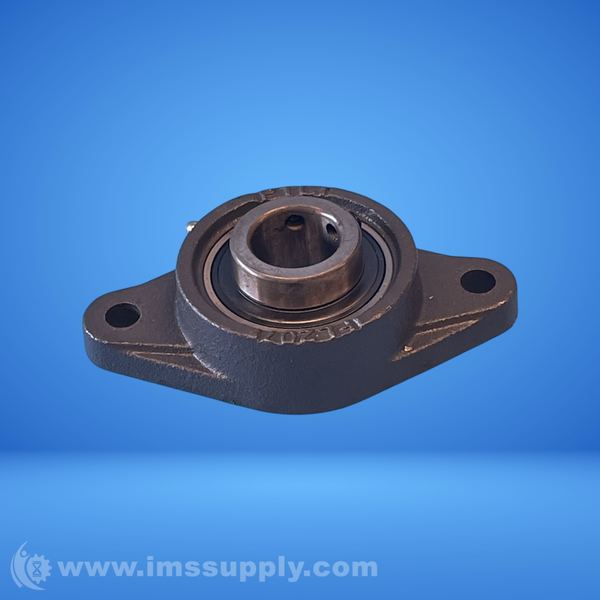

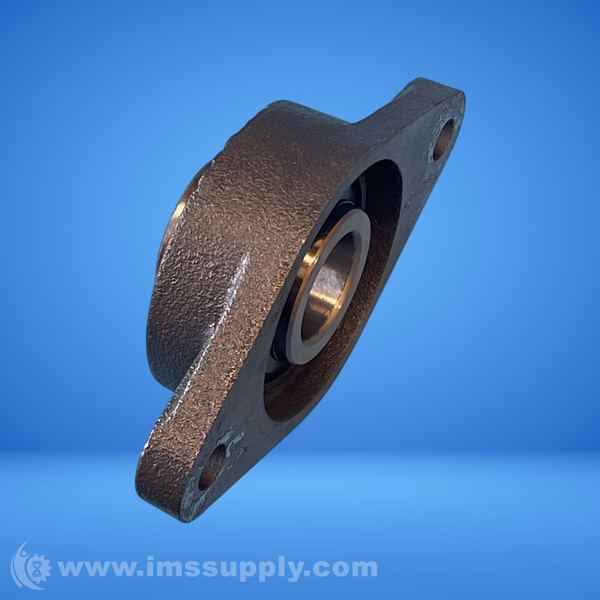

IPTCI UC207-20 Ball Insert Bearing
Ball insert bearing with 1-1/4 inch bore diameter, set screw locking mechanism, and single lip contact seal.
Specifications
- Bore Diameter: 1-1/4 in
- Type: Insert Bearing
- Locking Mechanism: Set Screw Locking
- Seal Type: Single Lip Contact Seal
- Outer Diameter Type: Spherical OD
- Bearing Material: 100CR6 Steel
- Inner Race Type: Wide Inner Race
- Cage Material: Steel
- Load Capacity: 5780 lb Dynamic/3440 lb Static
- Maximum Speed: 4500 rpm
- Outside Diameter: 2.835 in
- Series: Silver UC 200
- Width: 1.69 in
- Lubrication: Chevron SRI-2 Grease
- Static Load: 3,496 lbf
- Dynamic Load: 5,775 lbf
- Speed Limit: 4,500 RPM
