JOHNSON CONTROLS P10BC-7C LOW PRESSURE CONTROL
Quick Overview
Manufactured By: JOHNSON CONTROLS
Manufacturer Part Number: P10BC-7C
IMS Product Code: 866524
Packaging: Sold Individually
Description:

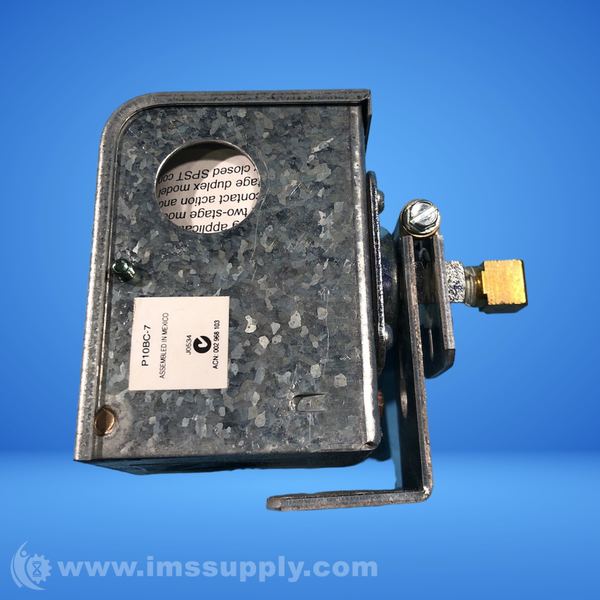

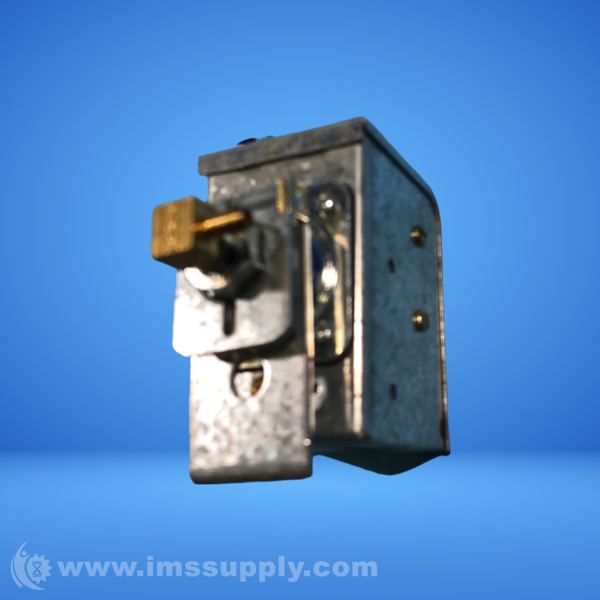

Johnson Controls P10BC-7C Low Pressure Control
Single Stage SPDT Pressure Switch with 3-20 psig range and barbed fitting connection
Specifications
- Direction: Uni-Directional
- Measurement: PSIG
- Media Compatibility: Air
- Range: 3-20 PSIG
- Type: Adjustable Pressure Control
- Contact Type: SPDT
- Housing Material: Metallic
- Contact Rating: 16 A
- Supply Voltage: 240 VAC
- Relay Type: SPDT (R=Com, B=NC, Y=NO)
- Relay Rating: 125 VA @24 to 600 VAC, Pilot Duty, (AC only)
- Differential: 1.5 to 7.5 psig
- Reset: Automatic reset by differential
- Sensor Type: Buna-N Diaphragm
- Operating Pressure: 3-20 PSIG
- Overpressure: 150 psig
- Operating Temperature: 32 to 140°F
- Operating Humidity: 10 to 90% Non-condensing
- Wetted Parts: Nylon Reinforced Buna-N
- Process Connection: 1/8 FNPT brass fitting
- Wiring Terminations: 3 Screw terminals
- Mounting: ½ L ½ BKT and 1/2 knockouts
- Enclosure: Galvanized steel, NEMA 1
- Dimensions: 2.1"W x 4.82"H x 3.19"D
- Weight: 1.7 lb
- Approvals: UL File #E6688, CSA LR948
