JOHNSON CONTROLS V-4710-602 DIAPHRAGM
Quick Overview
Manufactured By: JOHNSON CONTROLS
Manufacturer Part Number: V-4710-602
IMS Product Code: 1836243
Packaging: Sold Individually
Description:

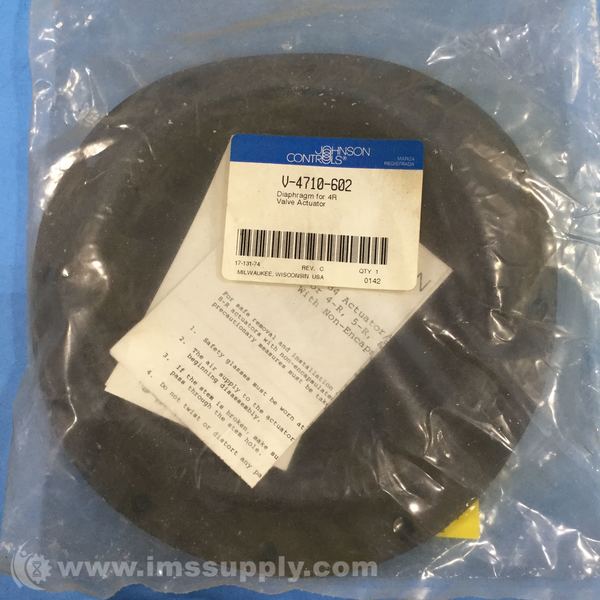

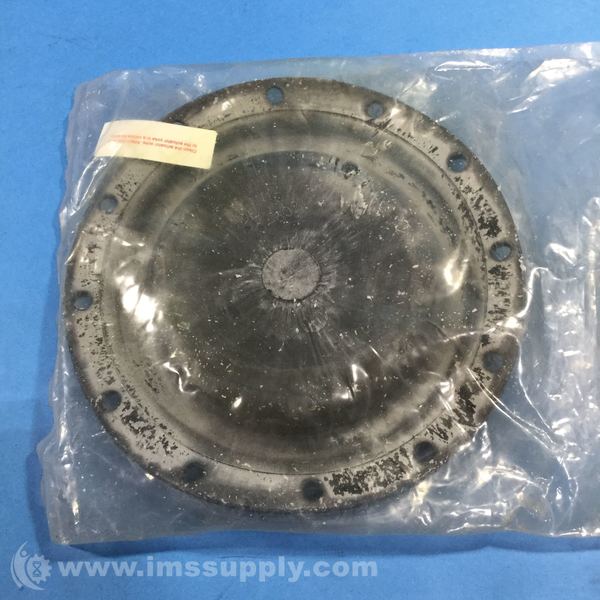

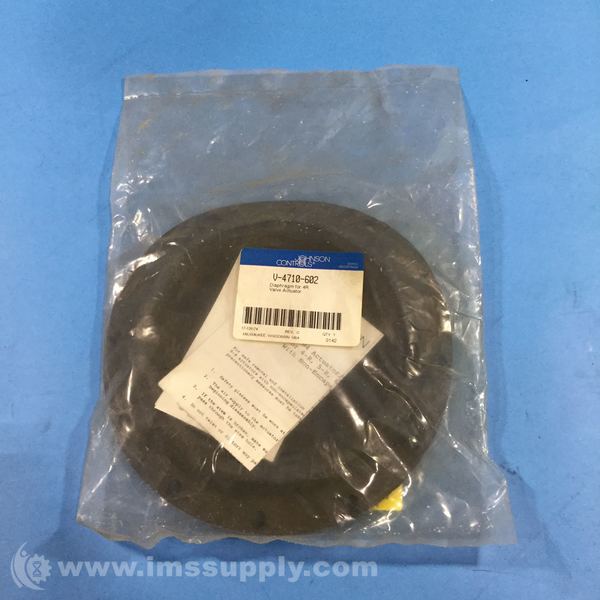

Johnson Controls V-4710-602 Diaphragm
Replacement diaphragm for 4R valve actuator
Specifications
- Type: Diaphragm
- Size: 1/2" to 2" FNPT
- Cv Range: 0.73 to 46.2
- Stroke: 5/16" (8 mm): 1/2" and 3/4" valves1/2" (13 mm): 1" and 1-1/4" valves3/4" (19 mm): 1-1/2" and 2" valves
- Flow Characteristic: Two-way equal percentage; three-way linear
- Rangeability: 25:1 per EN 60534-2-4
- Leakage Rating: Brass trim: ANSI Class IV, 0.01% of maximum flow per ANSI/FCI 70-2; stainless trim: 0.05% of maximum flow
- Maximum Closeoff Pressure: Actuator dependant, see Ordering Information
- Pressure Drop: Maximum recommended pressure drop for water is 35 psid (241 kPa) for 1/2" to 1-1/4" valves, 30 psid for 1-1/2" and 2" valves; for steam 15 psid (103 kPa) for brass trim valves and 100 psid (690 kPa) for stainless trim valves
- Maximum Pressure Rating: Brass trim with water: 400 psi (2756 kPa) up to 150°F (66°C), decreasing to 365 psi (2515 kPa) at 248°F (120°C); Brass trim with steam: 35 psi (241 kPa) at 284°F (138°C); Stainless trim with water: 400 psi (2756 kPa) up to 150° (66°C), decreasing to 308 psi (2122 kPa) at 338°F (170°C); Stainless trim with steam: 100 psi (241 kPa) at 338°F (170°C)
- Pressure Rating: ANSI B16.15, Class 250 (EN 12360)
- Materials Of Construction: Cast bronze body, stainless steel stem, brass trim models have brass plug, elastomer disc seat and rubber (EPR packing), stainless trim models have stainless plug/seat and spring-loaded PTFE/elastomer V-ring packing
- Media Compatibility: Hot or chilled water; <50% glycol; steam 35 psig (Fluid Group 1 according to 67/548/EEC)
- Media Temperature Range: Water: 35° to 248°F (2° to 120°C); Steam: maximum 338°F (170°C) (actuator dependant), 35 psig
- Actuator Mounting: Threaded mounting collar
- Compatible Actuators: Electric VA-7000 or VA-4233 Series shown on following pages; pneumatic see V-3000, MP800 Series in PNEUMATICS & FITTINGS catalog section
