KAYDON KB050XP0 FOUR-POINT CONTACT BEARING
Quick Overview
Manufactured By: KAYDON BEARING
Manufacturer Part Number: KB050XP0
IMS Product Code: 2122574
Packaging: Sold Individually
Description:

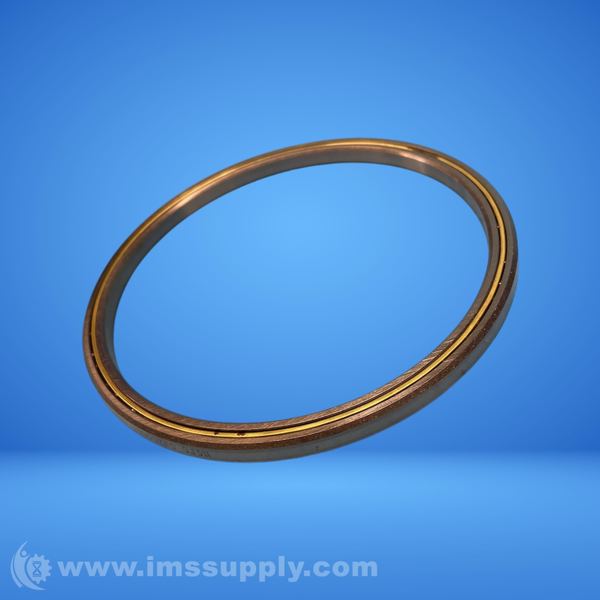

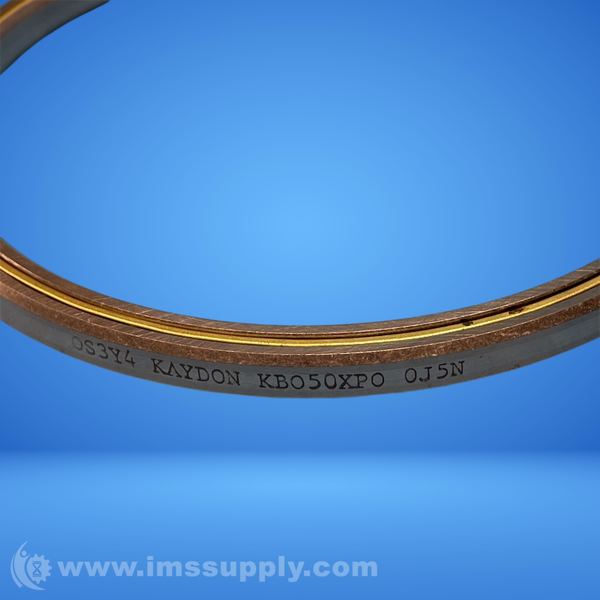

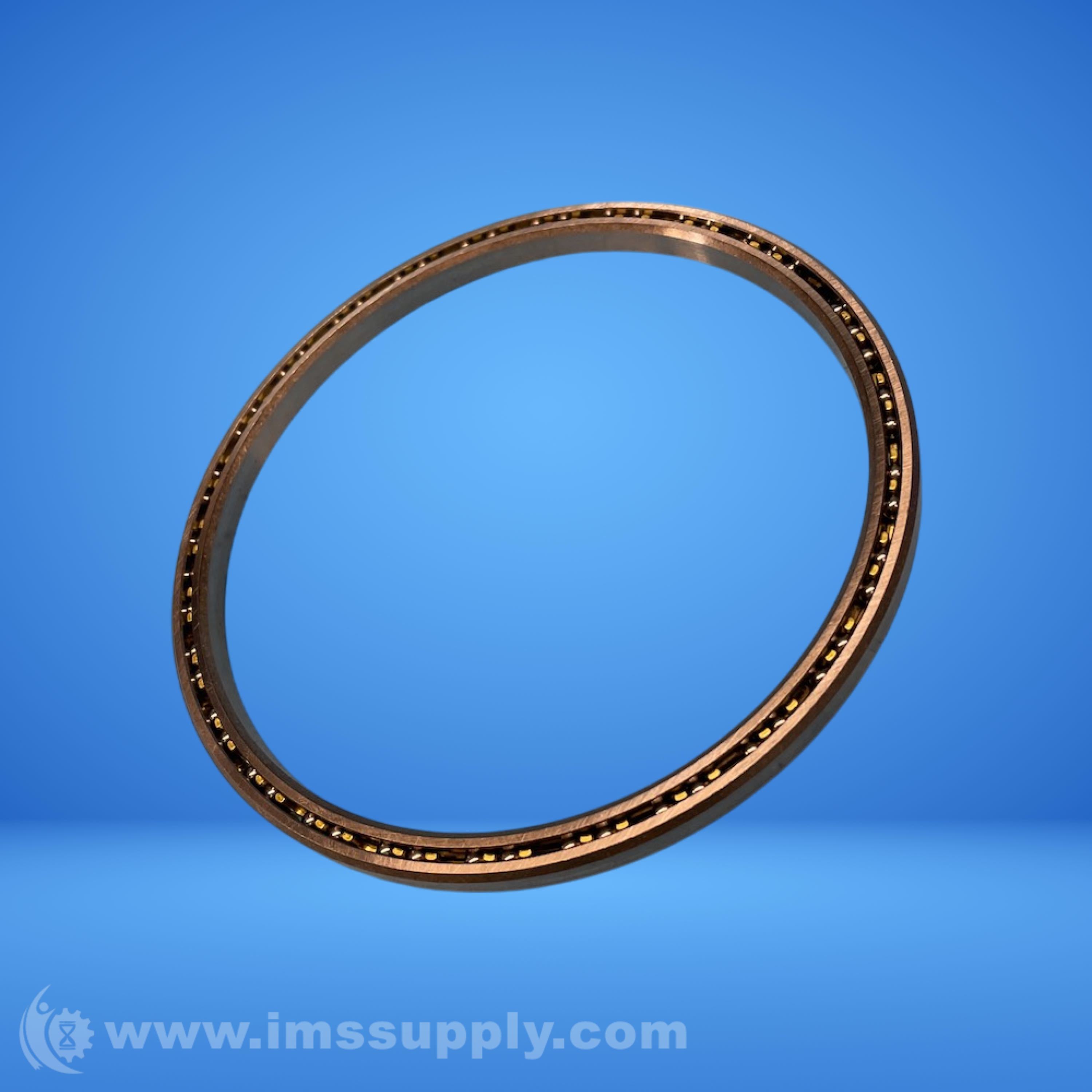

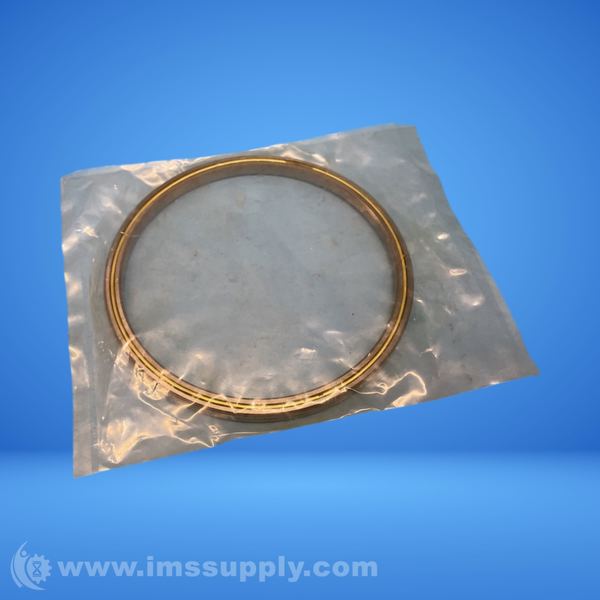

Kaydon KB050XP0 Four-Point Contact Bearing
Four-point contact ball bearing, thin section, open type, 5 inch bore, 5.625 inch OD, 0.3125 inch width
Specifications
- Bore Type: Straight
- Bore Diameter: 5 in
- Outside Diameter: 5.625 in
- Overall Width: 0.3125 in
- Closure Type: Open
- Contact Angle: 30 degrees
- Radial Dynamic Load Capacity: 1236 lbf
- Radial Static Load Capacity: 2150 lbf
- Bearing Material: Steel
- Cage Material: Brass/Non-Metallic
- Precision Rating: ABEC 1 (ISO Class Normal)
- Series: KB
- Weight: 0.38 lbs
