KELE TS-470 DAMPER END SWITCH
Quick Overview
Manufactured By: KELE & ASSOCIATES
Manufacturer Part Number: TS-470
IMS Product Code: 869476
Packaging: Sold Individually
Description:

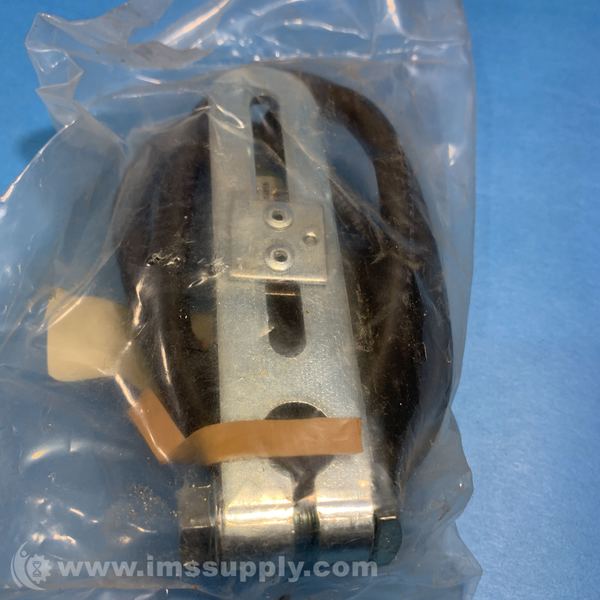

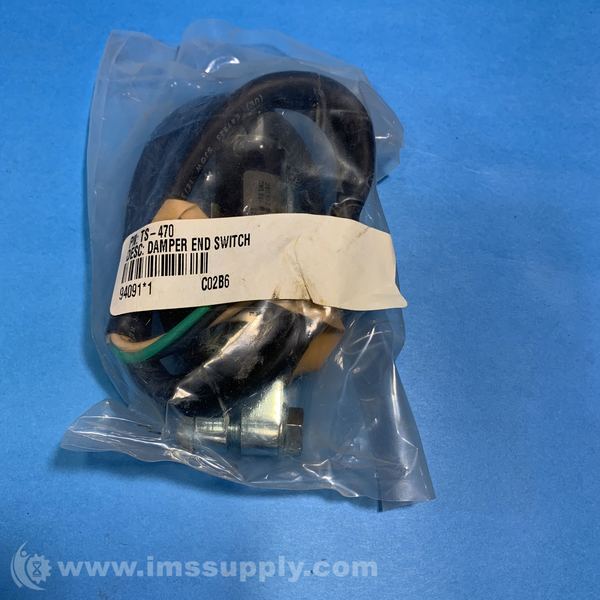

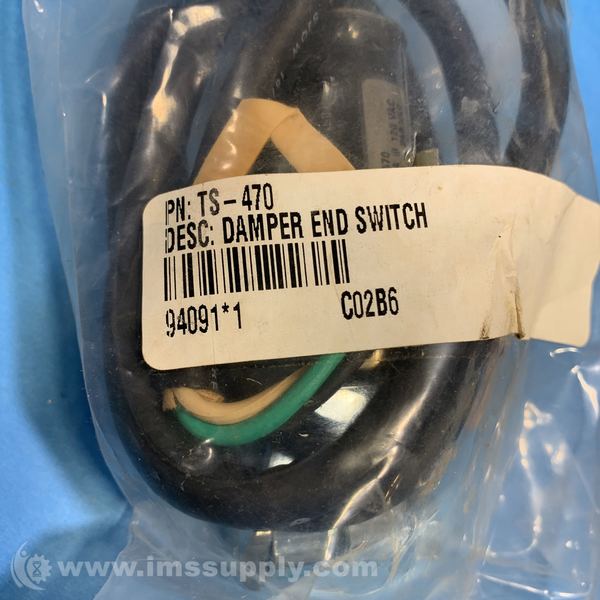

Kele TS-470 Damper End Switch
Damper end switch with encapsulated mercury switch, SPDT contact configuration, and 3-conductor cable wiring.
Specifications
- Type: Switch
- Contact Rating: Non-plenum: SPDT; 2A @ 120 VAC, 1A @ 240 VAC
- Wiring: 3' (0.9 m) length, AWG 18, 3-conductor cable; green = common, black = N.C., white = N.O.
- Switch Type: Encapsulated mercury switch, contains 0.03 cc mercury
- Switch Angle: Makes at 15 degrees below horizontal
- Operating Temperature: -30 to 130 degrees F (-34 to 54 degrees C)
- Mounting: 1/2" (1.3 cm) or 1" (2.5 cm) damper shaft
- Dimensions: 1.4"H x 1.0"W x 4.4"L (3.6 x 2.5 x 11.1 cm) or 1.5"H x 1.8"W x 5.5"L (3.8 x 4.5 x 14.0 cm)
- Weight: 0.46 lb (0.21 Kg) or 0.8 lb (0.36 Kg)
- Series: TS-470
