KEYENCE BL-701 LASER BARCODE READER
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: BL-701
IMS Product Code: 1861065
Packaging: Sold Individually
Description:

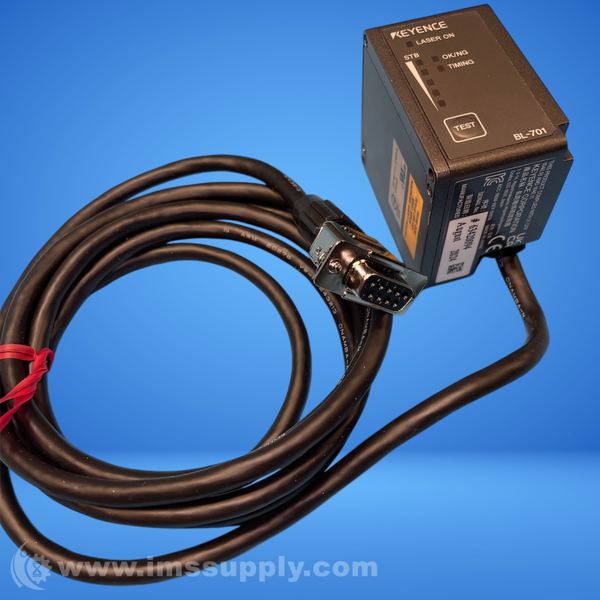

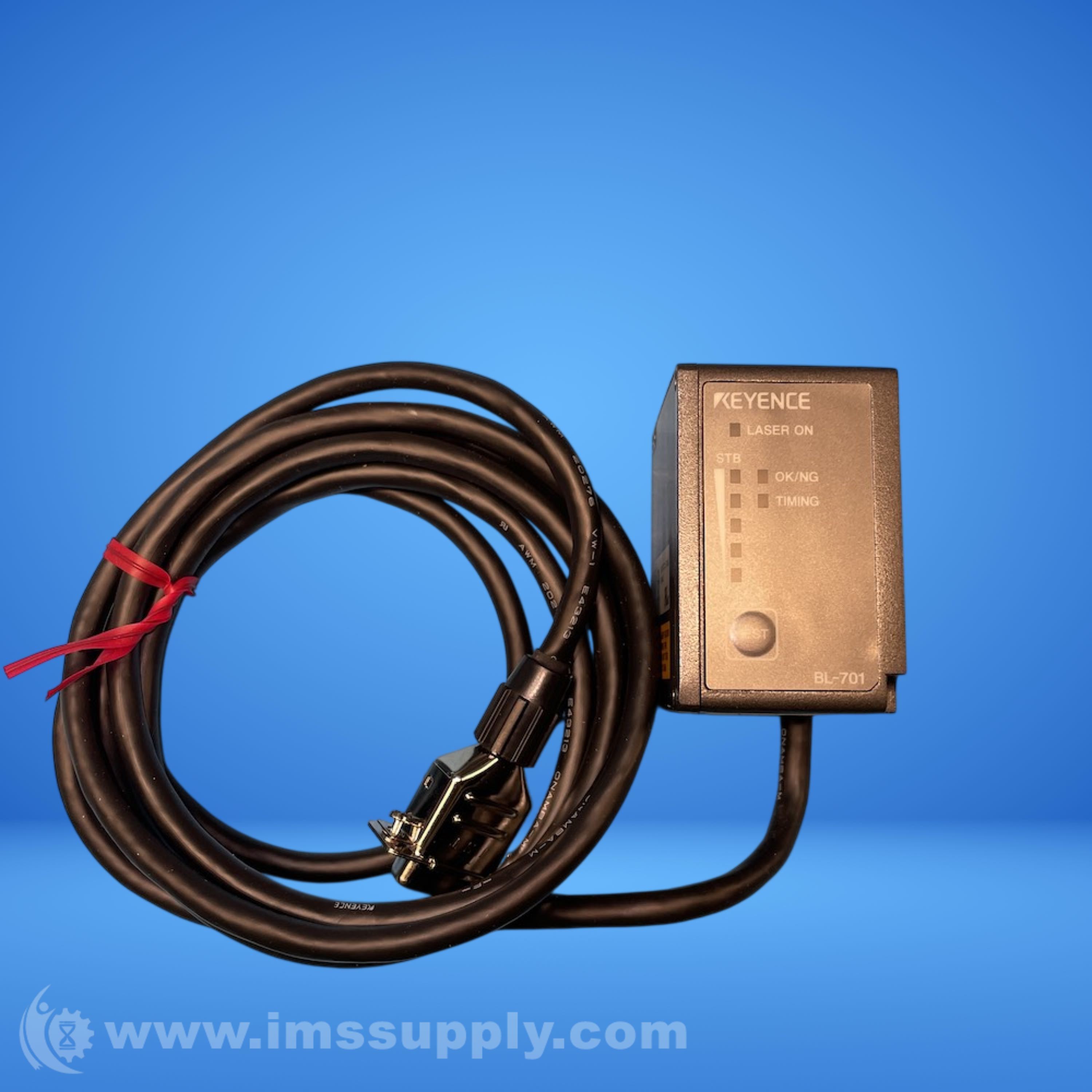

Keyence BL-701 Laser Barcode Reader
Long-distance laser barcode reader with high-resolution raster scanning, visible semiconductor laser (655 nm), and IP65 enclosure rating.
Specifications
- Type: High-resolution type
- Scanning method: Raster
- Light source: Visible semiconductor laser (wavelength: 655 nm)
- Control output: 100 µW
- Laser class: Class 2 (JIS C6802, IEC 60825-1, FDA [CDRH] Part 1040.10)
- Supported codes: CODE39, ITF, Industrial 2 of 5, NW-7 (Codabar), JAN, EAN, UPC, CODE128, COOP 2 of 5, CODE93
- Number of readable digits: 32 digits (64 digits for CODE128 with start character C)
- Readable bar width: 0.15 mm to 1.0 mm
- Reading distance: 160 to 370 mm
- Focal point: 230 mm
- Scanning rate: 700 scans/sec
- Number of inputs: 1
- Number of outputs: 2 (OK and NG)
- Output: NPN open collector
- Rated load: 24 VDC, 30 mA
- Power voltage: 5 VDC ± 5%
- Current consumption: 510 mA or less
- Enclosure rating: IP65
- Ambient temperature: 0 to +40 °C
- Relative humidity: 35 to 85 % RH (No condensation)
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Weight: Approx. 300 g (including the cable)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 57 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 57 minutes.
