KEYENCE BL-U2 DEDICATED COMMUNICATION UNIT
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: BL-U2
IMS Product Code: 1793151
Packaging: Sold Individually
Description:

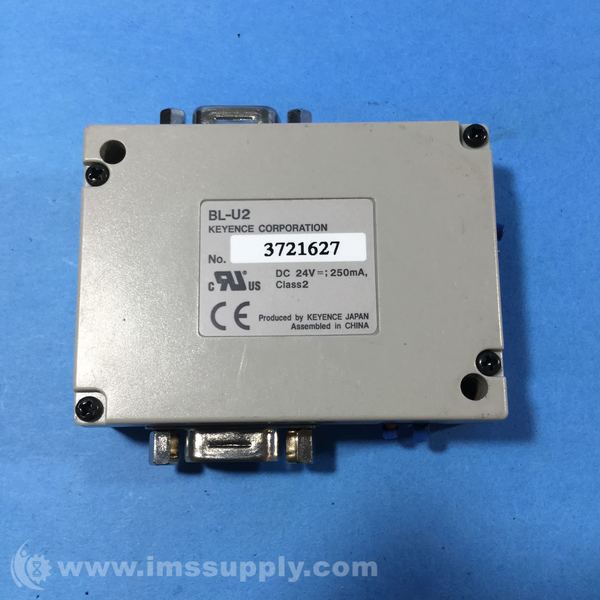

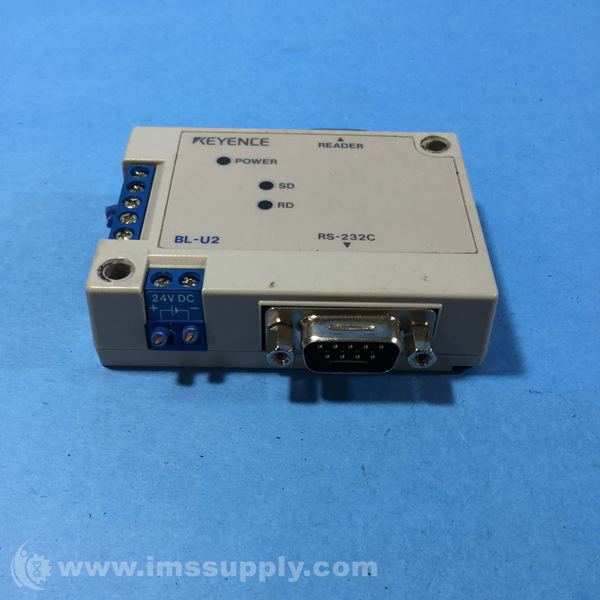

Keyence BL-U2 Dedicated Communication Unit
Dedicated communication unit for RS-232C barcode readers
Specifications
- Reader port: 1 (D-sub 9-pin connector)
- Power supply for barcode reader: 5 VDC � 5% (630 mA)
- Communication method: RS-232C
- Output interface: I/O terminal
- Input terminals: 1
- Input rating: 15 to 26 VDC, 10 mA maximum
- Maximum OFF current value: 1.0mA
- Output terminals: 2
- Output: NPN open collector
- Output rating: 30 VDC, 100 mA
- Leakage current (at OFF): 0.1mA or less
- Residual voltage (at ON): 1V or less
- Power voltage: 24 VDC +10%, -20%
- Current consumption: 250 mA or less
- Ambient temperature: 0 to +50�C (32 to 122�F)
- Relative humidity: 35 to 85% RH (No condensation)
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm (0.06"), 2 hours in each of the X, Y, and Z directions
- Weight: Approx. 80 g
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
VGA and a 5 pin connector cables attached.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
