KEYENCE EH-305S SENSOR HEAD, SHIELDED TYPE, F5.4, STAINLESS STEEL
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: EH-305S
IMS Product Code: 1792649
Packaging: Sold Individually
Description:

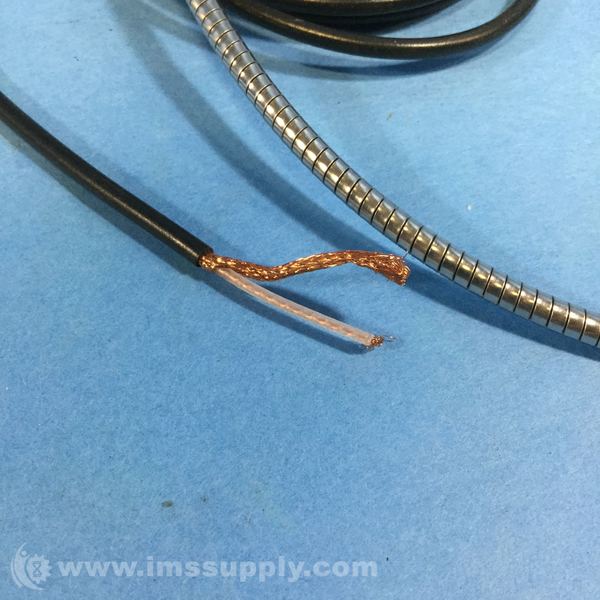

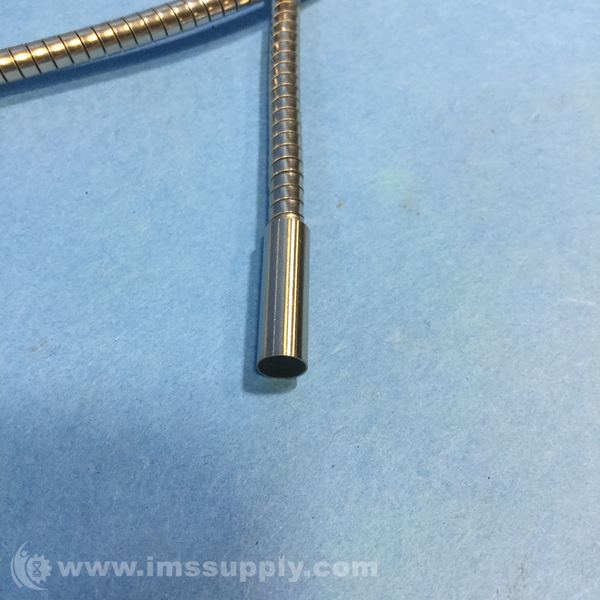

Keyence EH-305S Sensor Head, Shielded Type, f5.4, Stainless Steel Tube
Specifications:
- Model: EH-305S
- Type: with stainless steel spiral tube, Shielded , Cylindrical
- Detectable object: Ferrous metals (see Characteristics for nonferrous metals)
- Standard target (iron, t=1 mm 0.04"): 5 x 5 mm0.02"
- Stable detecting range: 0 to 1 mm0.04"
- Maximum detecting distance: 3 mm0.12"
- Hysteresis: 0.05 mm0.002"
- Repeatability: 0.002 mm0.00008"
- Temperature characteristics: ±10% max. of detecting distance at 23°C 73.4°F, within -10 to +60°C 14 to 140°F
- Environmental resistance:
- Enclosure rating: IP67
- Ambient temperature: -10 to +60 °C 14 to 140 °F (No freezing)
- Relative humidity: 35 to 85 % RH (No condensation)
- Weight: Approx. 76 g (including nuts and 3-m 9.8' cable)
