KEYENCE EX-110V DIGITAL DISPLACEMENT SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: EX-110V
IMS Product Code: 2121014
Packaging: Sold Individually
Description:

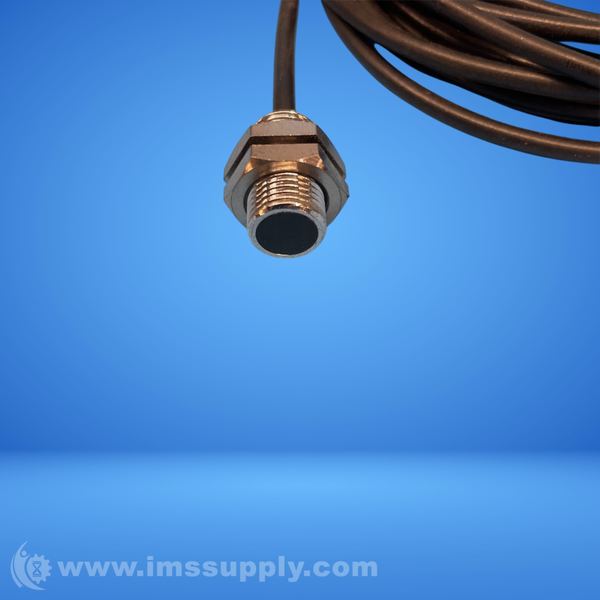

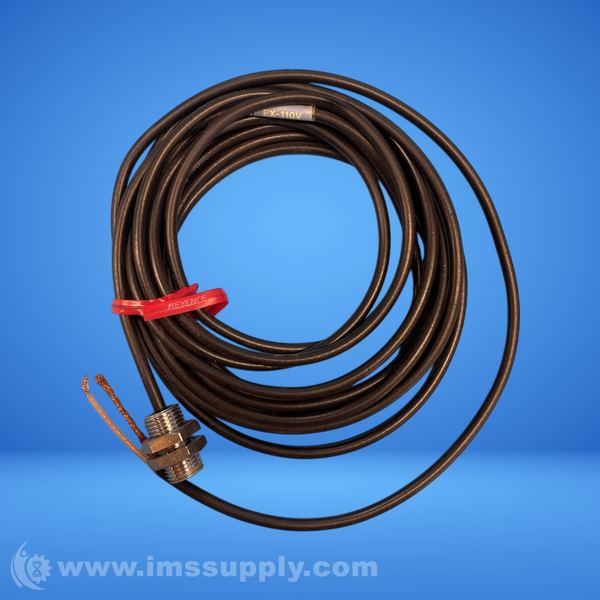

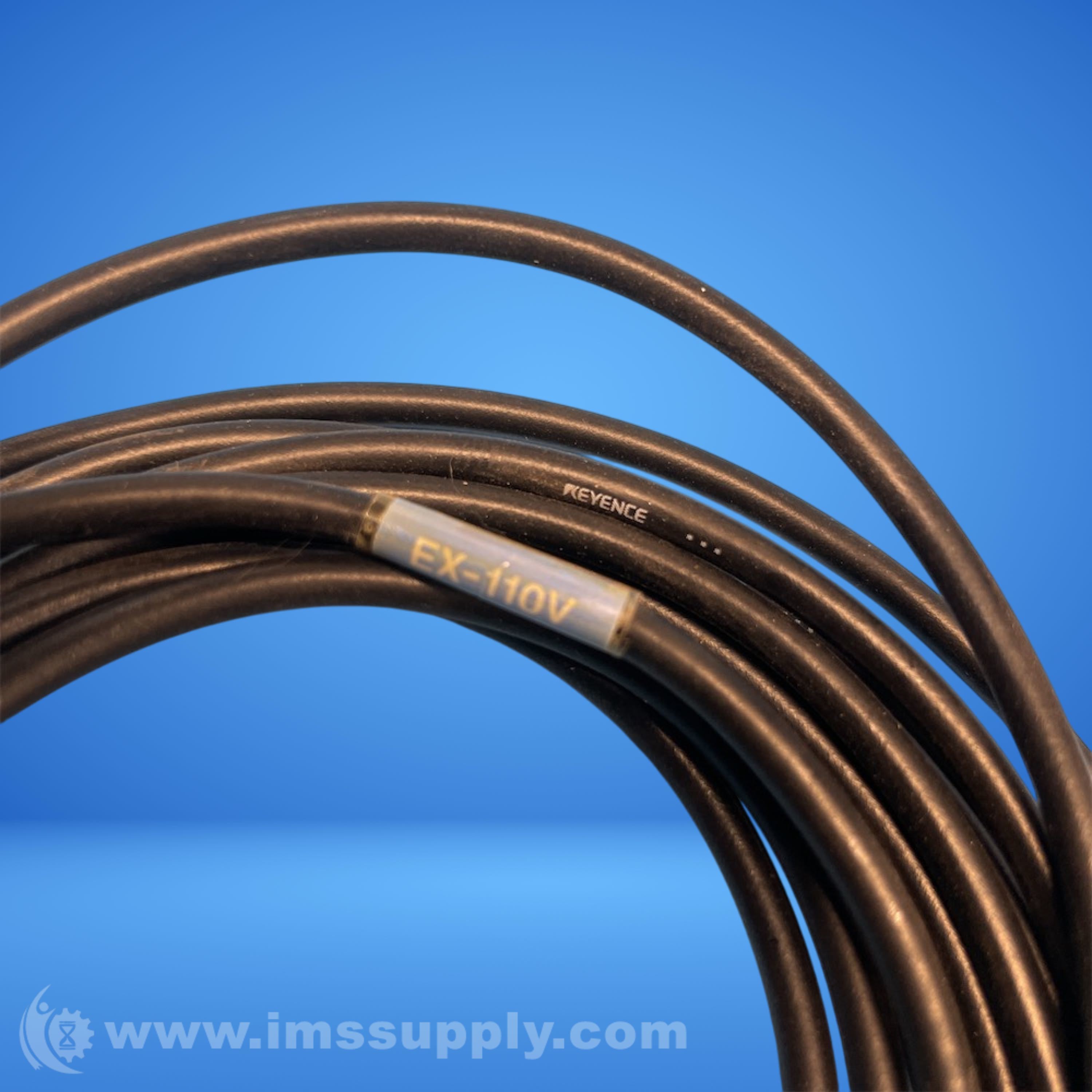

Keyence EX-110V Digital Displacement Sensor
High-speed, high-accuracy digital displacement inductive sensor with M10 x 18 mm threaded shape and 0 to 2 mm measuring range.
Specifications
- Model: EX-110V
- Type: Sensor head
- Shape: M10 x 18 mm threaded
- Measuring range: 0 to 2 mm
- Linearity: ±0.3% of F.S.
- Resolution: 0.4 µm
- Sampling rate: 40,000 samples/sec
- Display rate: 20 times/sec
- Display: 7-segment 2-color LED
- Power supply: 24 VDC ±10%
- Current consumption: 240 mA max
- Temperature characteristics: 0.07% of F.S./°C
- Environmental resistance: -10 to +60 °C, 35 to 85% RH
- Weight: Approx. 55 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 51 minutes.
