KEYENCE FS-V33 DIGITAL FIBER OPTIC SENSOR
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: FS-V33
IMS Product Code: 2141561
Packaging: Sold Individually
Description:

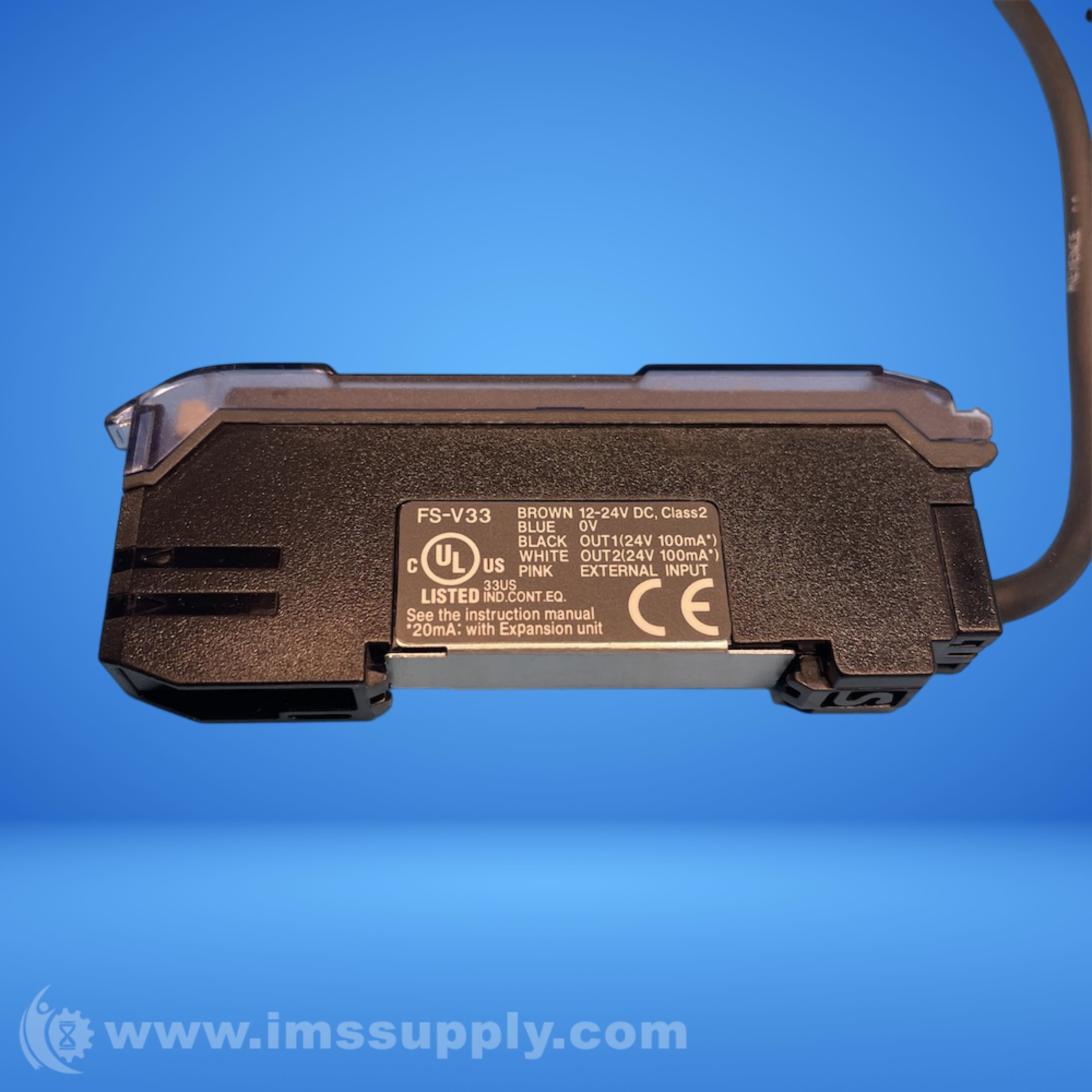

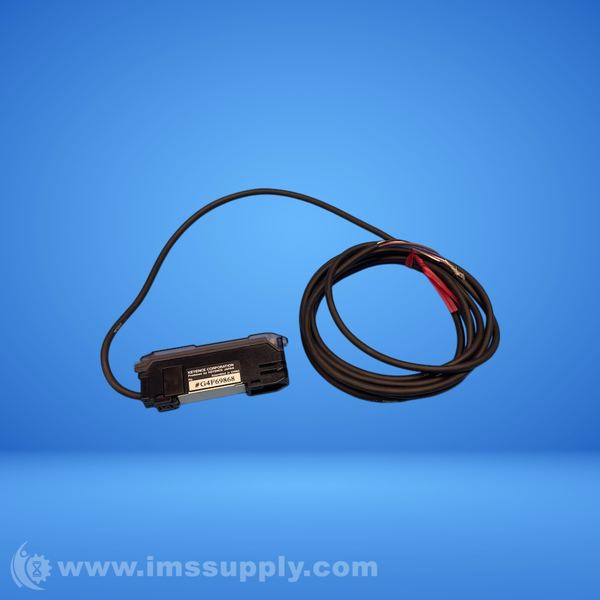

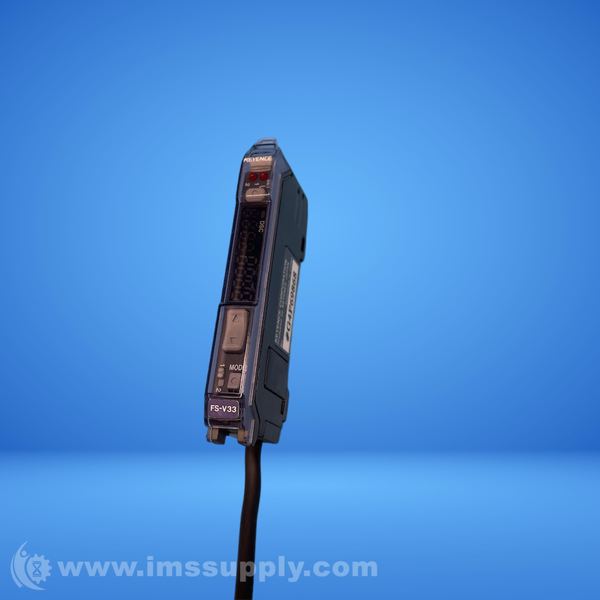

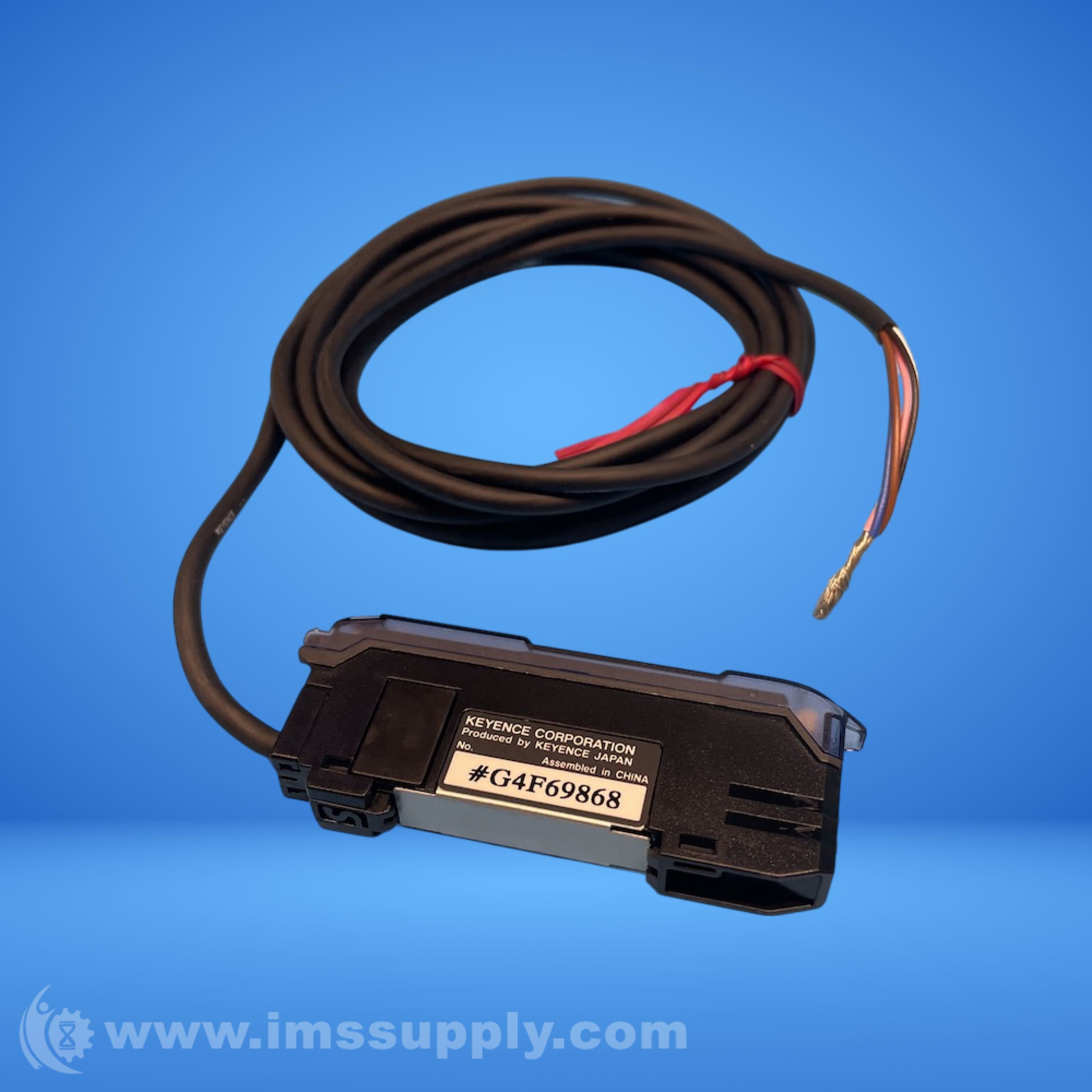

Keyence FS-V33 Digital Fiber Optic Sensor
Digital fiber optic sensor with 2-output + 1-input and cable connection.
Specifications
- Type: 2-output + 1-input with cable
- Output: NPN
- Main unit/Expansion unit: Main unit
- Control output: 2 outputs
- External input: 1 input
- Light source LED: Red, 4-element LED (Wavelength: 640 nm)
- Response time: 33 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER TURBO) /4 ms (ULTRA TURBO) /16 ms (MEGA TURBO)
- Output selection: LIGHT-ON/DARK-ON (switch-selectable)
- Size: 30.3 mm (H) x 9.8 mm (W) x 71.8 mm (D)
- Detection mode: Light intensity (area detection possible, automatic sensitivity-tracking function provided)
- Timer function: OFF-delay timer/ON-delay timer/One-shot timer/ON-delay timer + OFF-delay timer/ON-delay timer + One-shot timer
- Control output: NPN open-collector 24 V, 100 mA max.
- External input: Input time: 2 ms (ON)/20 ms (OFF) min.
- Unit expansion: Up to 16 expansion units can be connected
- Rating: Power voltage 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Power consumption: Normal: 710 mW max. (Using 24 V, 29 mA max., using 12 V, 40 mA max.)
- Ambient temperature: -10 to +55 °C (No freezing)
- Relative humidity: 35 to 85 % RH (No condensation)
- Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
- Shock resistance: 500 m/s2, 3 times in each of the X, Y, and Z directions
- Case material: Polycarbonate
- Weight: Approx. 80 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
