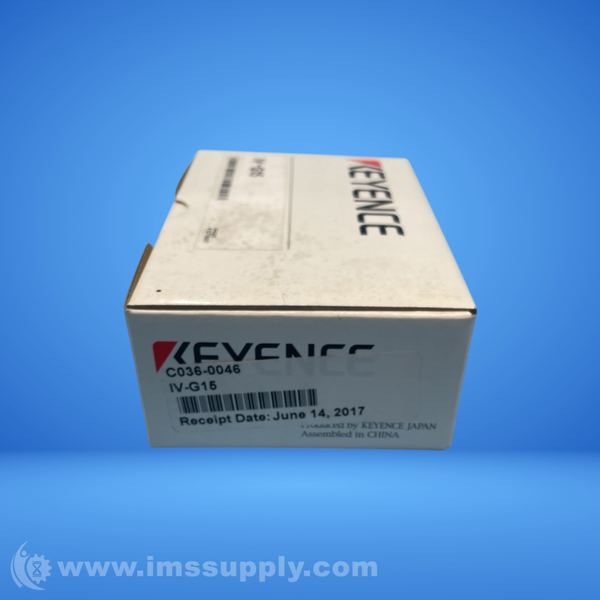

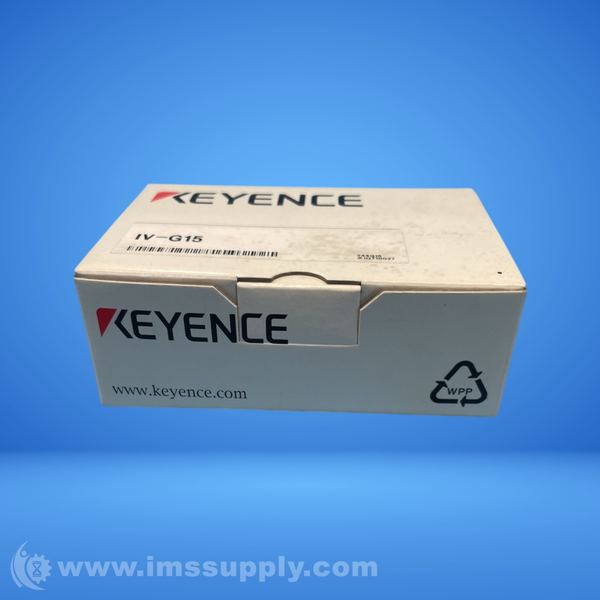

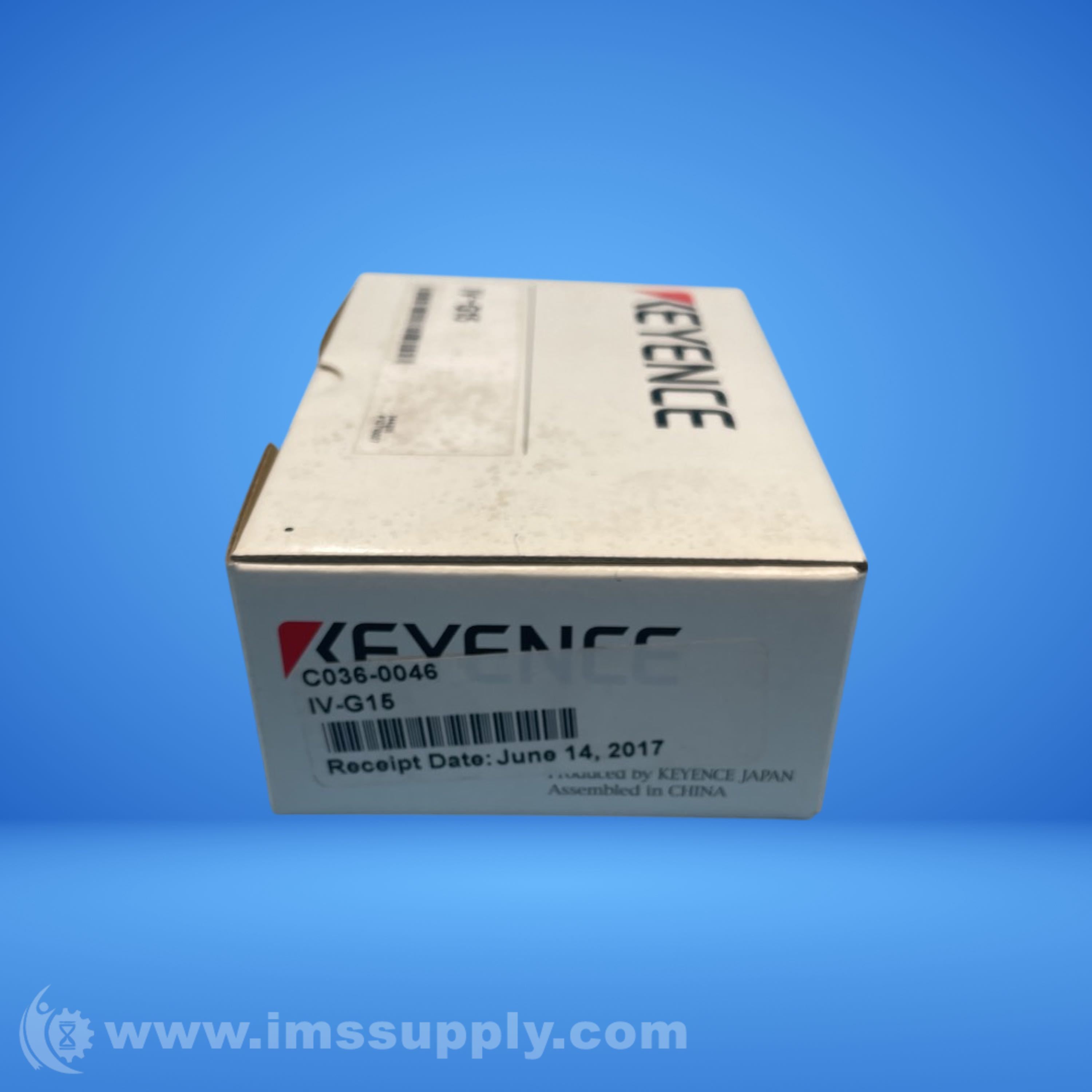

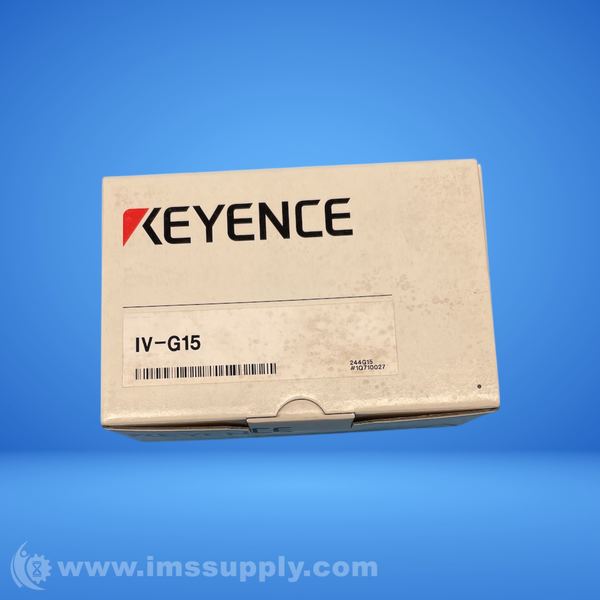

KEYENCE IV-G15 EXPANSION UNIT
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: IV-G15
IMS Product Code: 2131527
Packaging: Sold Individually
Description:
Keyence IV-G15 Expansion Unit
Expansion unit for Keyence IV-G series vision sensors. Provides additional functionality and connectivity.
Specifications
- Type: Expansion unit
- Tools: Shape Detection, Color Area, Area, position adjustment
- Number: Detection tools: 16 tools, position adjustment tool: 1 tool
- Switch settings (programs): 32 programs
- Image history: Numbers
- Condition: NG only/All is selectable
- Analysis information: OFF/Statistics/Histograms is switchable
- Other functions: HDR, HighGain, Color filters, Digital zoom (2x, 4x), Brightness correction, Tilt correction, White balance, Mask outline, Mask area, Test run, ToolAutoTune, Input monitor, Output test, Security settings, Simulator, Mutual interference prevention, Total judgment result output, Direct connection (2 units or more), Failing sensor list, Failure hold
- Indicators: PWR/ERR, OUT, TRIG, STATUS, LINK/ACT
- Input: Type
- Outputs: 8 outputs (OUT1 to OUT8)
- Function: Enable by assigning the optional functions
- Ethernet: Standard
- Connector: RJ-45 8pin connector
- Network function: FTP client, EtherNet/IP™, PROFINET
- Rating: Power voltage
- Current consumption: 0.8 A or less. 1.5 A or less when also using an expansion unit (IV-G15)
- Environmental resistance: Ambient temperature
- Relative humidity: 35 to 85 % RH (No condensation)
- Material: Main unit case: Polycarbonate
- Weight: Approx. 150 g
