KEYENCE IV-HG15 VISION SENSOR EXPANSION UNIT
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: IV-HG15
IMS Product Code: 2131631
Packaging: Sold Individually
Description:

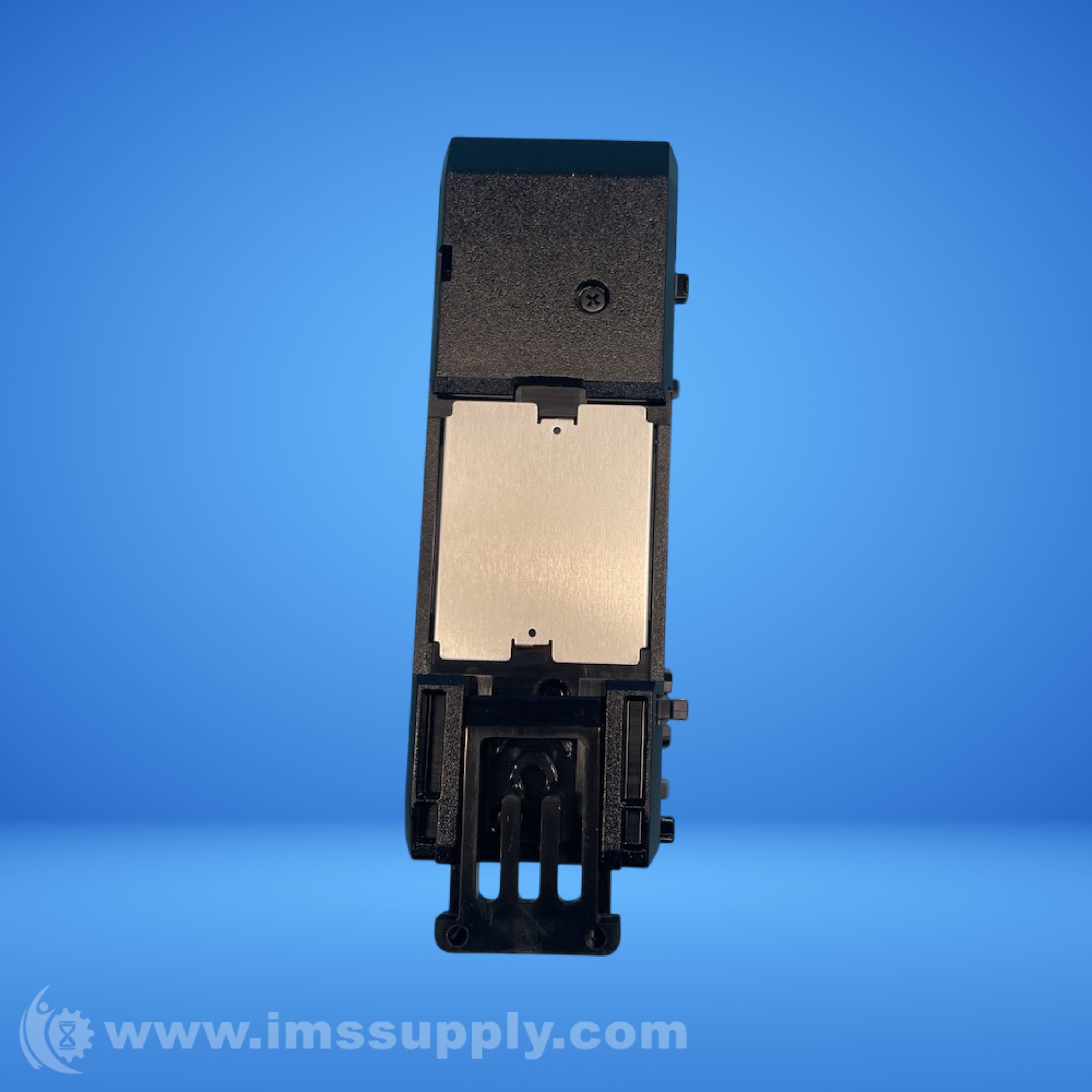

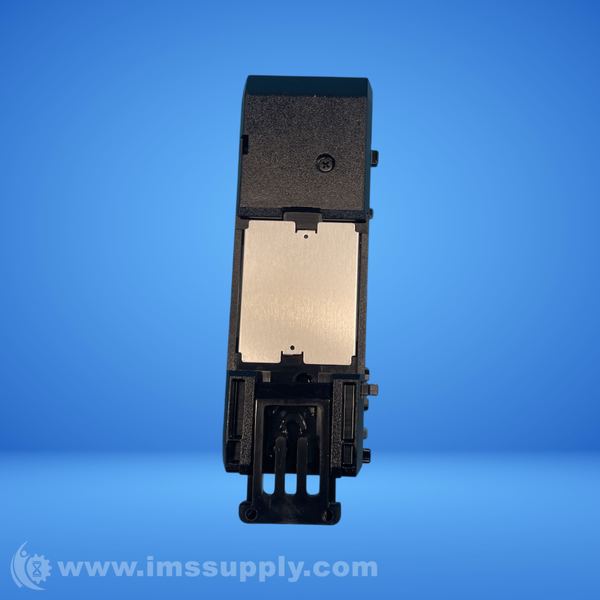

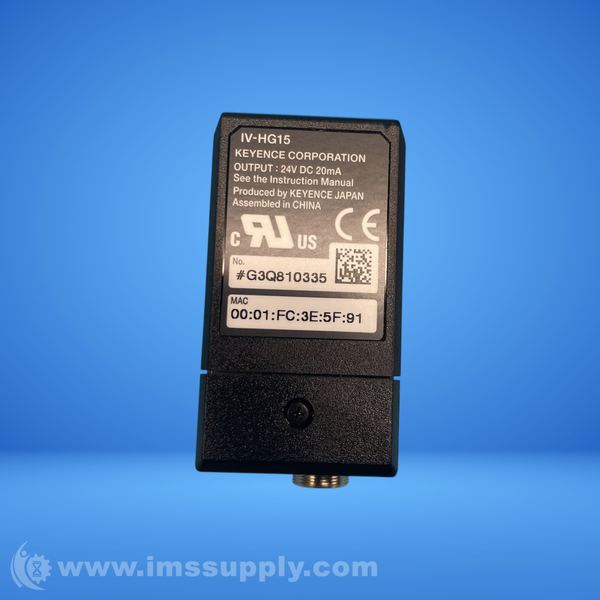

Keyence IV-HG15 Vision Sensor Expansion Unit
Expansion unit for IV-HG series vision sensors, enabling advanced detection tools and Ethernet connectivity.
Specifications
- type: Expansion unit
- tools: Shape Detection, Color Area, Area, Edge Pixels, Width/Height, Diameter, Edge Presence, Pitch, Position Adjustment, High Speed Position Adjustment (1-Axis/2-Axis Adjustment), OCR
- number: Detection tools: 16 tools, position adjustment tool: 1 tool
- switch settings (programs): 32 programs
- image history: Numbers
- condition: NG only/All is selectable
- analysis information: OFF/Statistics/Histograms/Matching rate list is switchable
- other functions: HDR, HighGain, Color filters, Digital zoom (2x, 4x), Brightness correction, Tilt correction, White balance, Mask function, Color histogram, Test run, ToolAutoTune, Input monitor, Output test, Security settings, Simulator, Mutual interference prevention, Direct connection (2 units or more), Sensor date/time information addition, Scaling function, Failing sensor list, Failure hold

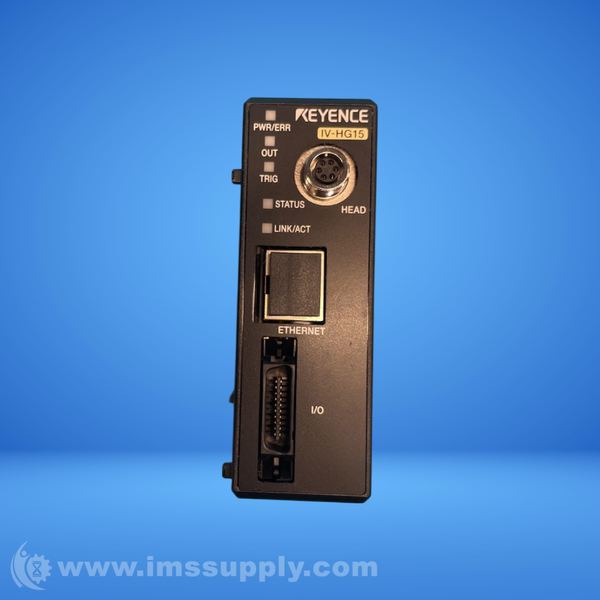

- indicators: PWR/ERR, OUT, TRIG, STATUS, LINK/ACT
- input type: Non-voltage input/voltage input is switchable
- inputs: 6 inputs (IN1 to IN6)
- function: IN1: External trigger, IN2 to IN6: Enable by assigning the optional functions
- output type: Open collector output NPN/PNP is switchable, N.O./N.C. is switchable
- outputs: 8 outputs (OUT1 to OUT8)
- ethernet standard: 100BASE-TX/10BASE-T
- connector: RJ-45 8pin connector
- network function: FTP client, EtherNet/IP™, PROFINET
- rating: Power voltage: Supplied from main unit
- current consumption: 0.8 A or less. 1.5 A or less when also using an expansion unit (IV-HG15)
- environmental resistance: Ambient temperature: 0 to +50 degrees C
- relative humidity: 35 to 85 % RH (No condensation)
- material: Main unit case: Polycarbonate
- weight: Approx. 150 g

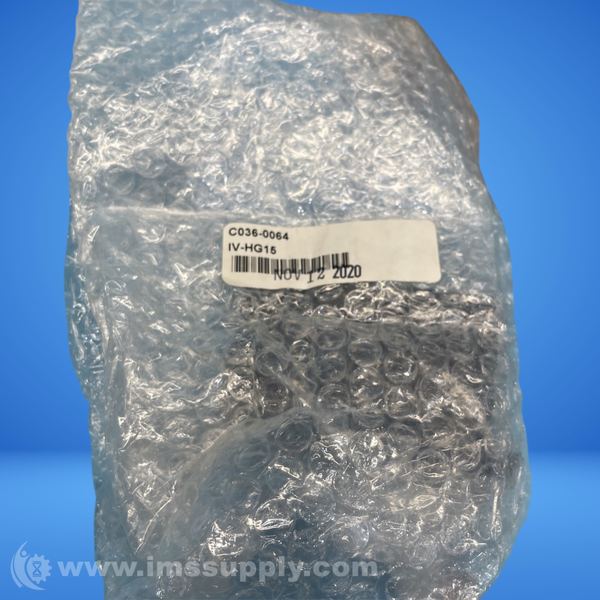

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
