KEYENCE PS-X28 AMPLIFIER UNIT
Quick Overview
Manufactured By: KEYENCE
Manufacturer Part Number: PS-X28
IMS Product Code: 1914359
Packaging: Sold Individually
Description:

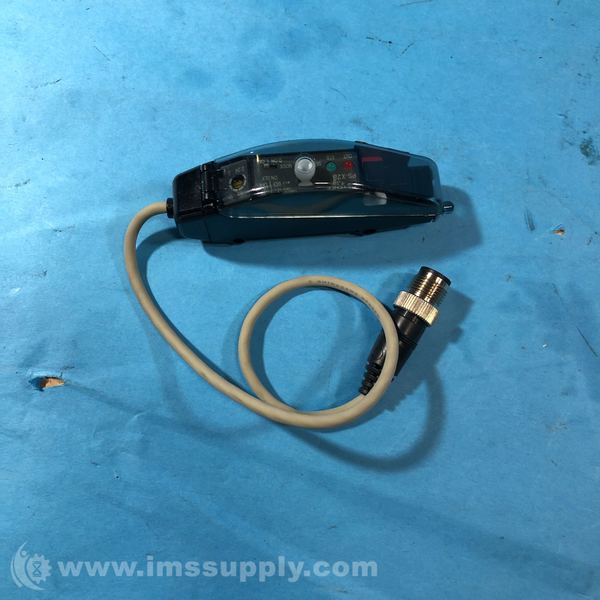

Keyence PS-X28 Amplifier Unit
Amplifier Separate Type Photoelectric Sensor, DC Type, NPN
Specifications
- Type: DC type
- Output: NPN
- Sensitivity adjustment: 3-turn trimmer
- Response time: 0.5 ms
- Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
- Control output: 100 mA (40 V) max.
- Residual voltage: 1 V max.
- Protection circuit: Reversed polarity, short-circuit protection, surge absorber
- Indicator lamp: Output: Red LED, Stable operation: Green LED
- Timer: ON-delay/OFF-delay/Timer-OFF selectable (40 ms to 5 s)
- Power voltage: 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
- Current/power consumption: 45 mA max.
- Ambient temperature: -10 to +50 degrees Celsius
- Relative humidity: 35 to 85 % RH (No condensation)
- Weight: Approx. 65 g
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
