KHK AG2-20R1 WORM GEAR
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: AG2-20R1
IMS Product Code: 2141540
Packaging: Sold Individually
Description:
KHK AG2-20R1 Worm Gear
Aluminum bronze worm wheel with excellent wear resistance for power transmission.
Specifications
- Module: 2
- Number of Teeth: 20
- Bore Type: Plain
- Material: CAC702 Aluminum Bronze
- Precision Grade: KHK W 002 grade 2
- Pressure Angle: 20 degrees
- Nominal Lead Angle: 3 degrees 41 minutes
- Hand of Thread: Right Hand
- Reduction Ratio: 20
- Bore (A): 12 mm
- Hub Diameter (B): 33 mm
- Pitch Diameter (C): 40 mm
- Face Width (E): 18 mm
- Hub Width (F): 15 mm
- Total Length (G): 33 mm
- Backlash: 0.11-0.24 mm
- Weight: 0.26 kg
New:

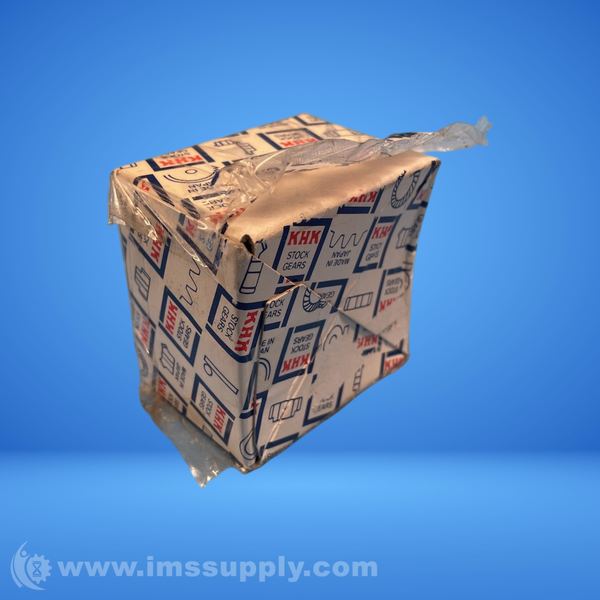

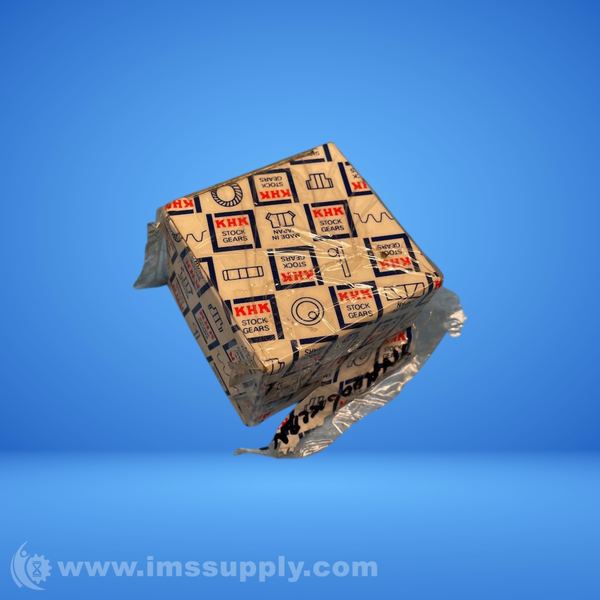

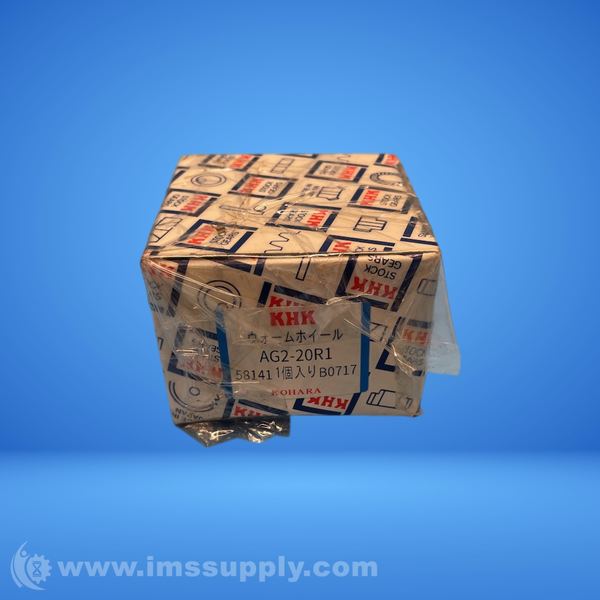

A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 14 hours and 30 minutes.
