KHK KRF5-1000 THERMAL REFINED RACK
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: KRF5-1000
IMS Product Code: 2144331
Packaging: Sold Individually
Description:

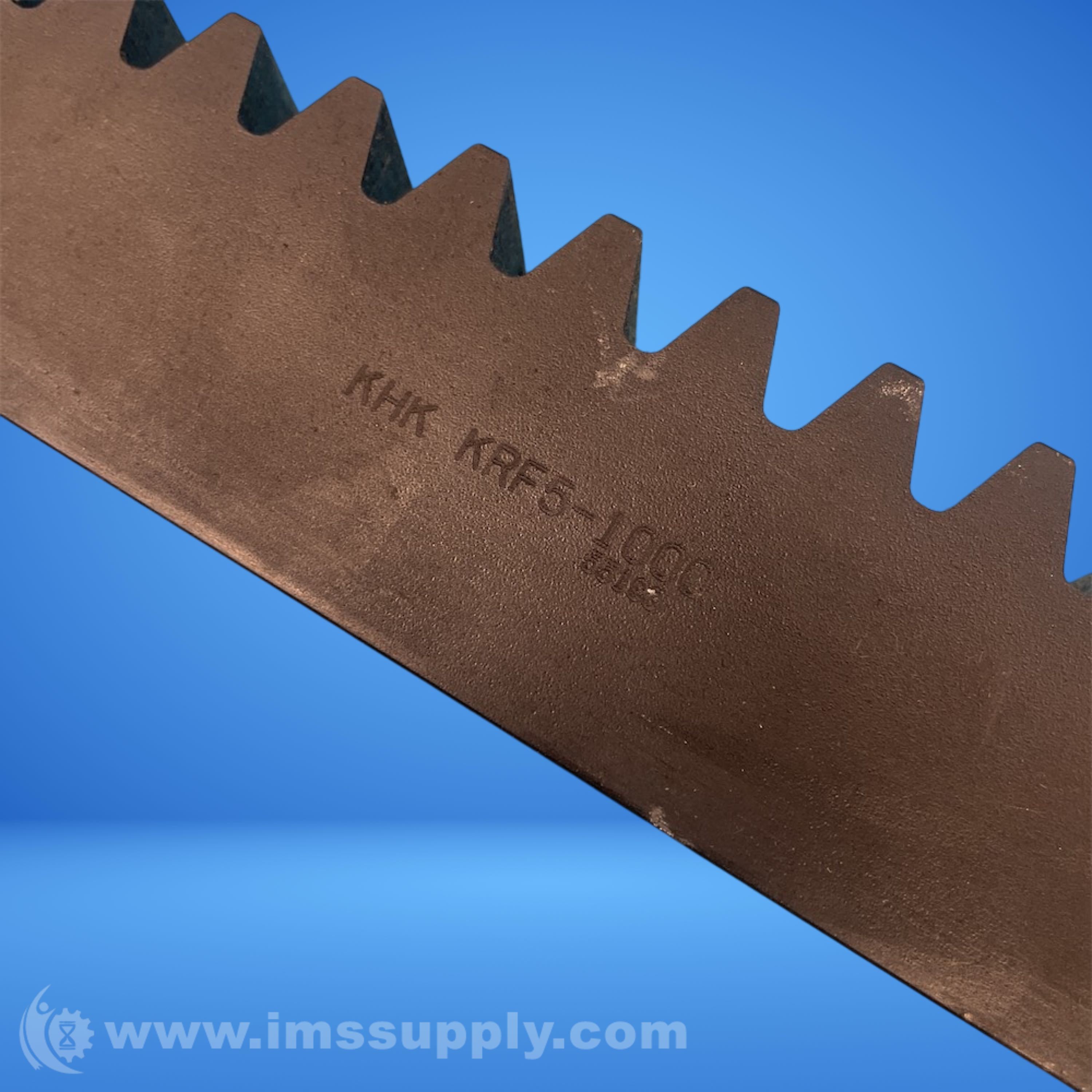

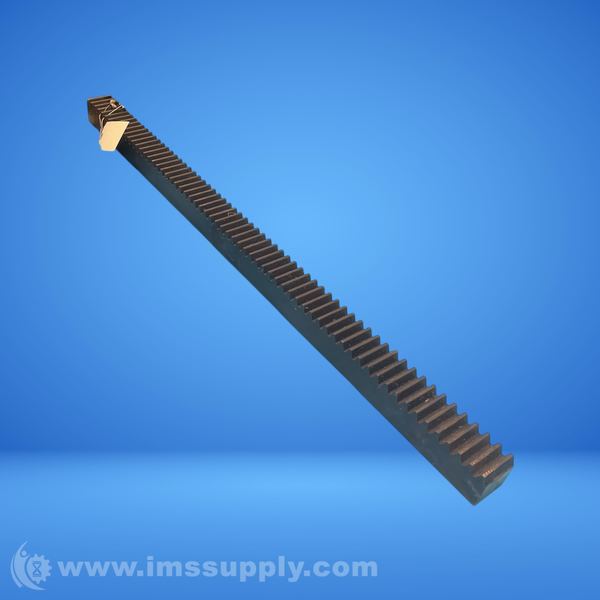

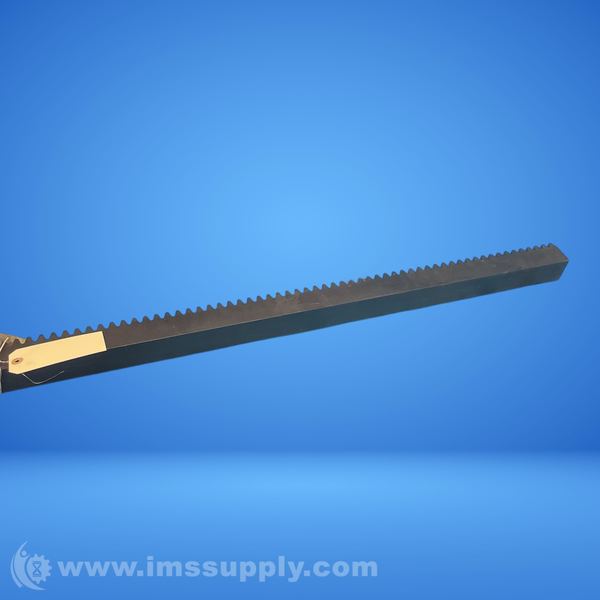

KHK KRF5-1000 Thermal Refined Rack
Module 5, 64 Tooth, Thermal Refined Rack with Machined Ends
Specifications
- Module: 5
- Effective Number of Teeth: 64
- Shape: RF
- Total Length Rack (A): 1,005.3 (mm)
- Face Width (B): 50.0 (mm)
- Height (C): 50.0 (mm)
- Height to Pitch Line (D): 45.0 (mm)
- Mounting Hole: No
- Bending Strength: 38,300.0000 (N-m)
- Surface Durability: 12,000.0000 (N-m)
- Backlash: 0.09-0.26 (mm)
- Weight: 17.8 (kg)
- Precision Grade: KHK R 001 grade 4
- Gear Teeth Type: Standard full depth
- Pressure Angle: 20 degrees
- Material: SCM440 (AISI 4140) Alloy Steel
- Heat Treatment: Thermal Refining Only
- Tooth Hardness: 225-285HB
- Surface Treatment: Black oxide coating
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 52 minutes.
