KHK NSU1-100 NYLON SPUR GEAR
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: NSU1-100
IMS Product Code: 2121521
Packaging: Sold Individually
Description:

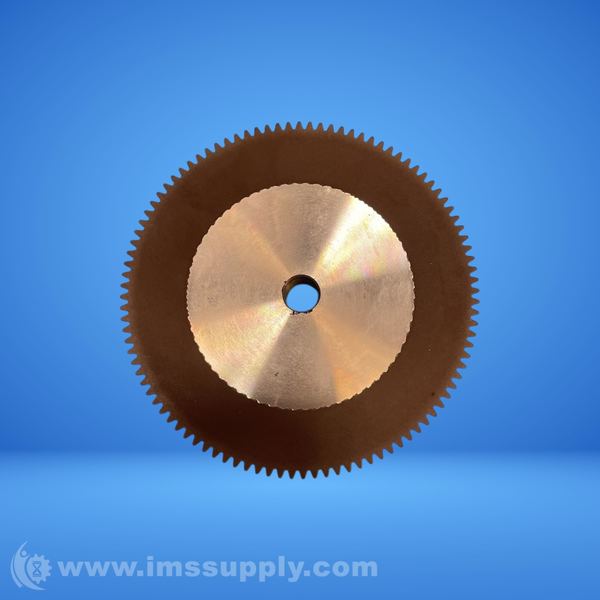

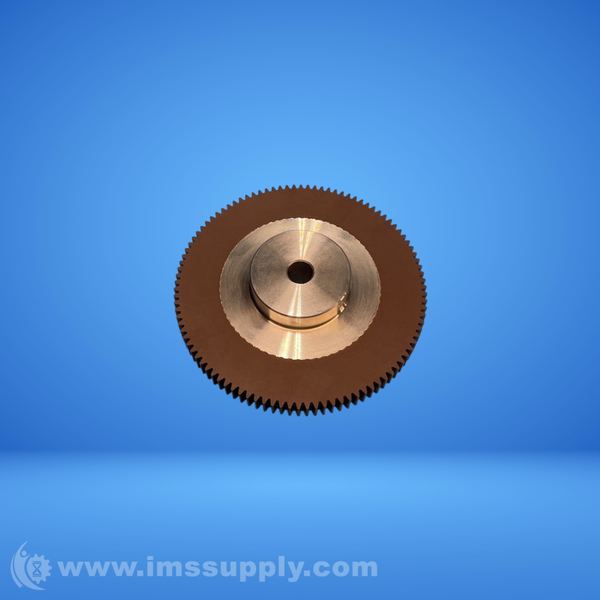

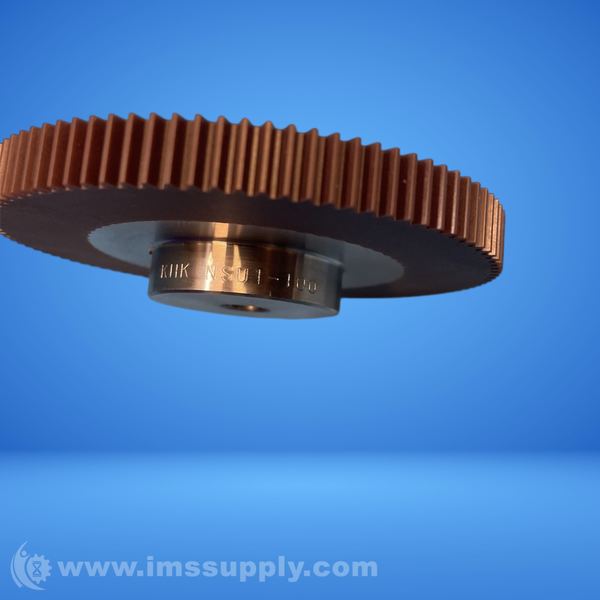

KHK NSU1-100 Nylon Spur Gear
Nylon spur gear with steel core, module 1, 100 teeth.
Specifications
- Gear Type: Spur Gears
- Construction: Nylon Spur Gears with Steel Core
- Bore Type: Plain
- Module: 1
- No. of teeth: 100
- Bore (A): 10.0 (mm)
- Hub Diameter (B): 40.0 (mm)
- Pitch Diameter (C): 100.00 (mm)
- Outer Diameter (D): 102.00 (mm)
- Face Width (E): 10.0 (mm)
- Hub Width (F): 10.0 (mm)
- Total Length (G): 20.00 (mm)
- Metal Core Diameter (H): 65.0 (mm)
- Bending Strength: 5.1200 (N-m)
- Backlash: 0-0.36 (mm)
- Weight: 0.40000 (kg)
- Precision Grade: JIS grade N9 (JIS B1702-1:1998)
- Pressure Angle: 20 degrees
- Material: MC602ST Reinforced Nylon with S45C Carbon Steel core
- Tooth Hardness: (115-120HRR)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
