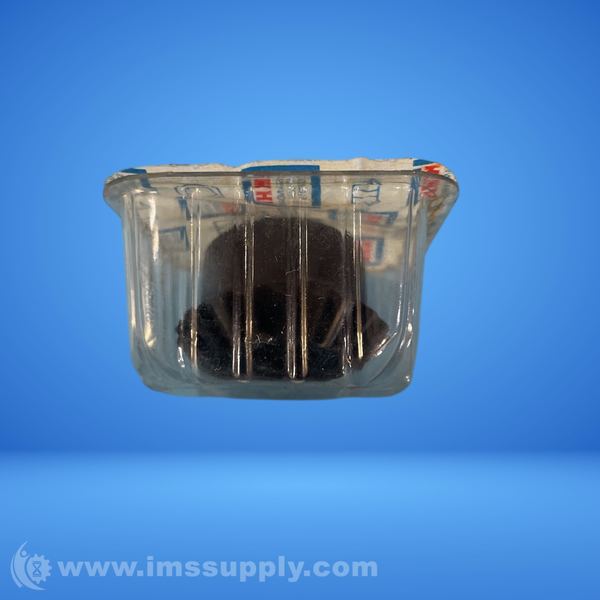

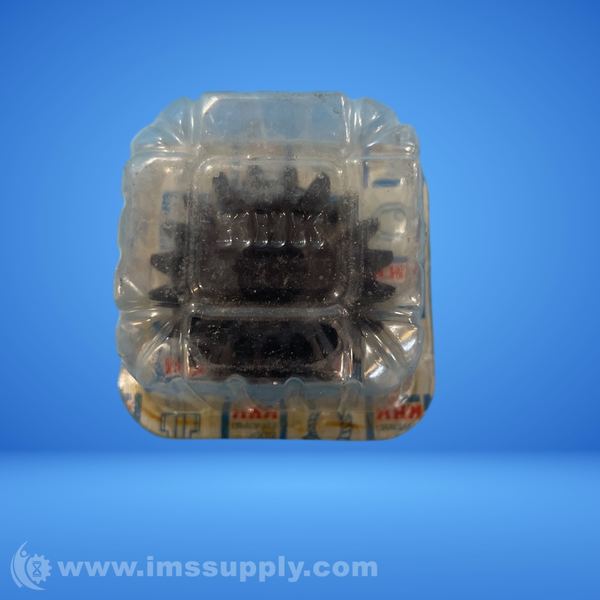

KHK SM2-20 MITER GEAR
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: SM2-20
IMS Product Code: 2170044
Packaging: Sold Individually
Description:
KHK SM2-20 Miter Gear
Carburized Alloy Steel Miter Gear, Module 2, 20 Teeth
Specifications
- Gear Type: Miter Gears
- Material: S45C (AISI 1045) Carbon Steel
- Bore Type: Plain
- Module: 2
- No. of Teeth: 20
- Precision Grade: JIS B 1704:1978 grade 3
- Gear Teeth Type: Gleason
- Pressure Angle: 20 degrees
- Bending Strength: 7.13 N�m (0.73 kgf�m)
- Surface Durability: 0.72 N�m (0.073 kgf�m)
- Backlash: 0.06-0.16 mm
- Tooth Hardness: less than 194HB
- Surface Treatment: Black oxide coating
- Weight: 0.15 kg
- Bore: 12 mm
- Hub Diameter (B): 34 mm
- Pitch Diameter (C): 40 mm
- Outer Diameter (D): 42.83 mm
- Total Length (F): 24.89 mm
