KHK SRF4-1000 STEEL GEAR RACK
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: SRF4-1000
IMS Product Code: 2125611
Packaging: Sold Individually
Description:

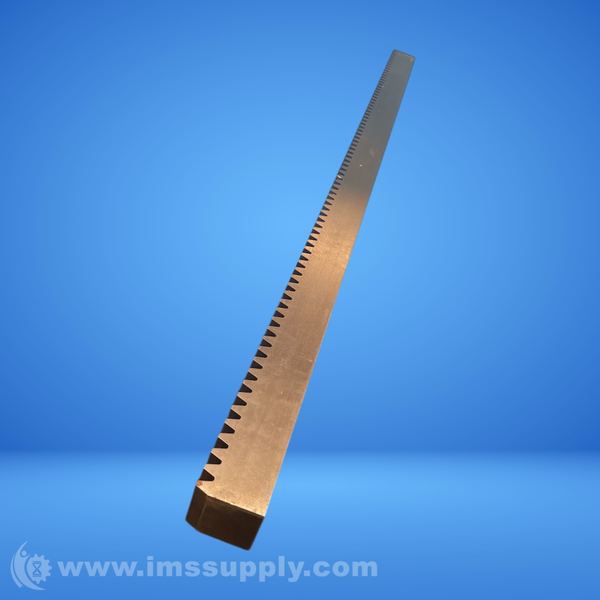

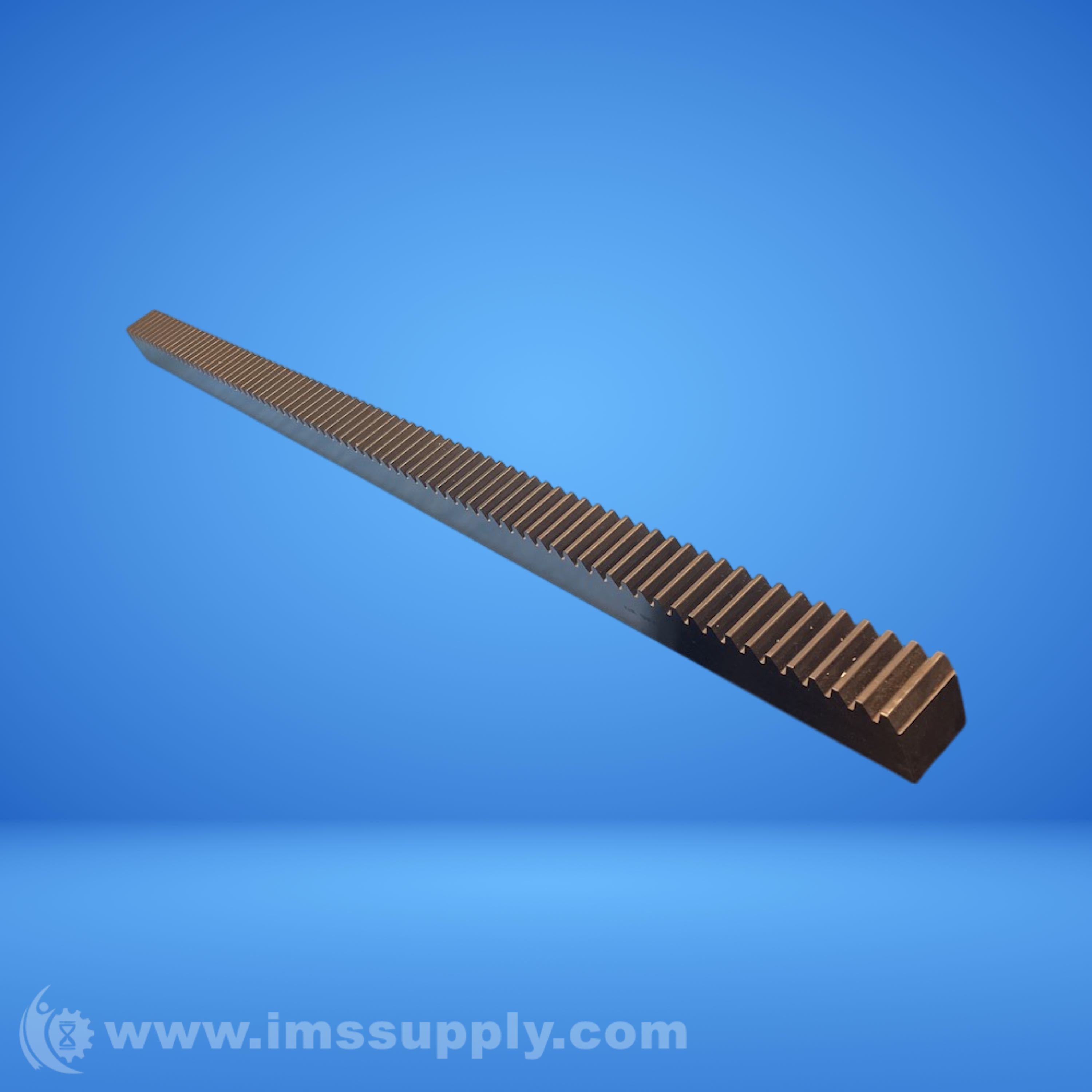

KHK SRF4-1000 Steel Gear Rack
KHK SRF4-1000 is a steel gear rack with machined ends, module 4, and a total length of 1005.3 mm. It has 80 teeth, a pressure angle of 20 degrees, and is made from S45C (AISI 1045) carbon steel. The rack has mounting holes and is treated with a black oxide coating.
Specifications
- Module: 4
- Effective Number of Teeth: 80
- Material: S45C (AISI 1045) Carbon Steel
- Pressure Angle: 20 degrees
- Total Length: 1005.3 mm
- Face Width: 40.0 mm
- Height: 45.0 mm
- Height to Pitch Line: 41.0 mm
- Number Of Mounting Holes: 6
- Mounting Screw Sizes: M12
- Tooth Hardness: Less Than 95 HRB
- Surface Treatment: Black oxide coating
- Bending Strength: 15300 N-m
- Surface Durability: 3330 N-m
- Weight: 12.6 kg

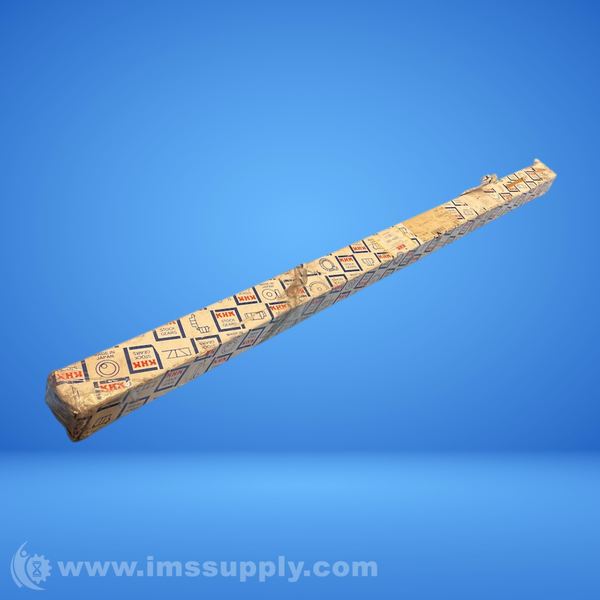

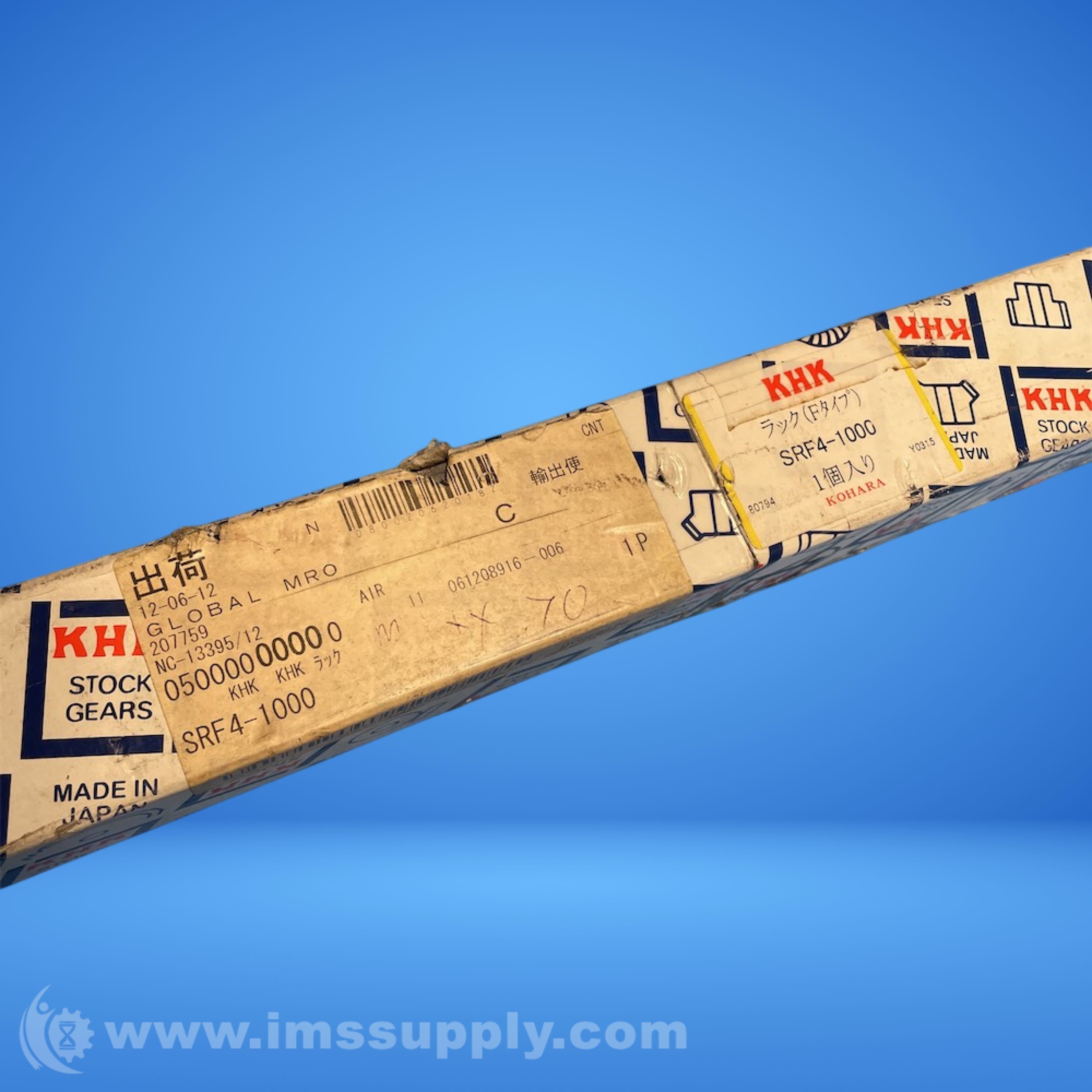

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
