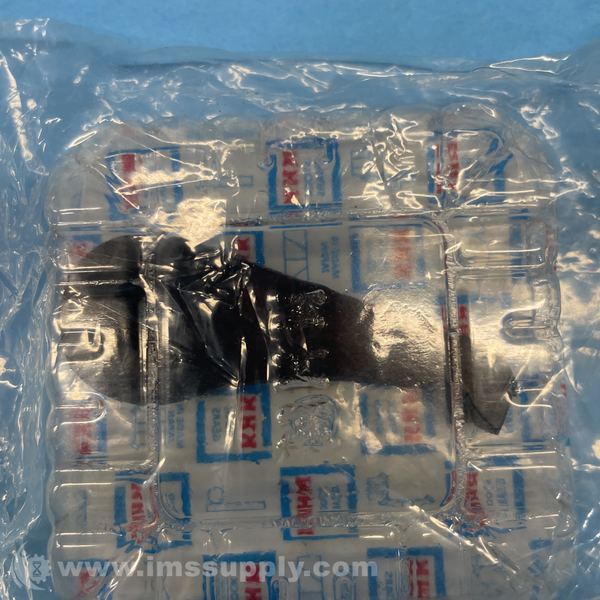

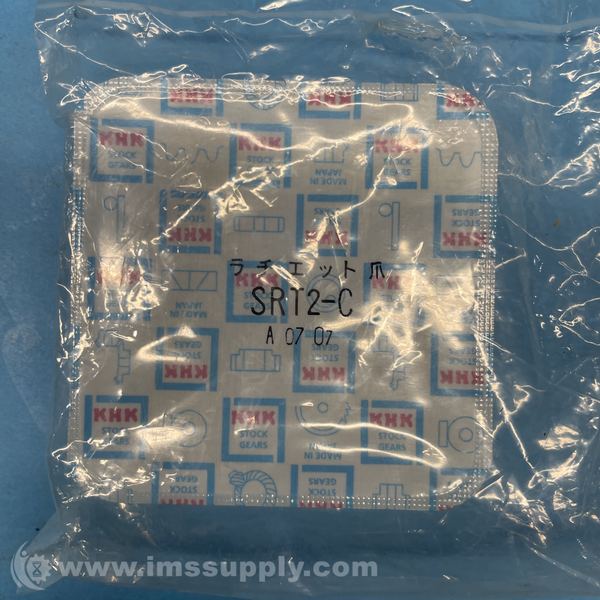

KHK SRT2-C RATCHET PAWL
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: SRT2-C
IMS Product Code: 2135929
Packaging: Sold Individually
Description:
KHK SRT2-C Ratchet Pawl
Pawls limit direction of spin to one direction; has induction hardened tips for superior durability. These ratchet pawls prevent gears from moving backward and are used in conjunction with ratchets of compatible size and pitch.
Specifications
- Gear Type: Pawls
- Construction: Pawls
- Bore Type: Plain
- Shape: T5
- Weight: 0.13000 kg
- Angle Of Teeth: 60 degrees
- Material: S45C (AISI 1045) Carbon Steel
- Heat Treatment: Induction hardened teeth
- Tooth Hardness: HRC 50-60
- Surface Treatment: Black oxide coating
- L: 12.5
- M: 55
- Overall Length: 67.5 mm
- Bore Diameter Tolerance: +/- 0.2 mm
- Bore Center to End Distance: 55 mm
- Face Width: 15 mm
- Bore Diameter: 10 mm
- Teeth Heat Treatment: Hardened Teeth
- System of Measurement: Metric
- Minimum Teeth Hardness: 50 HRC
- Teeth Angle: 60 Degrees
- Gear Shape: T5
- Finish: Black Oxide
- Maximum Teeth Hardness: 60 HRC
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
