KHK SS2-64 SPUR GEAR
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: SS2-64
IMS Product Code: 2125934
Packaging: Sold Individually
Description:

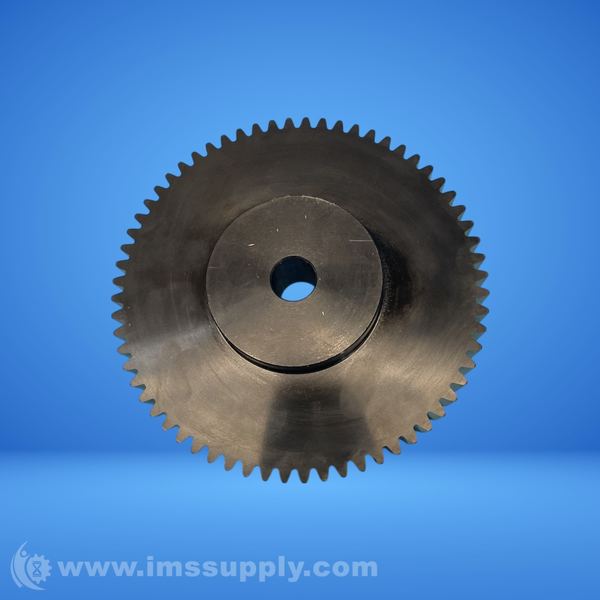

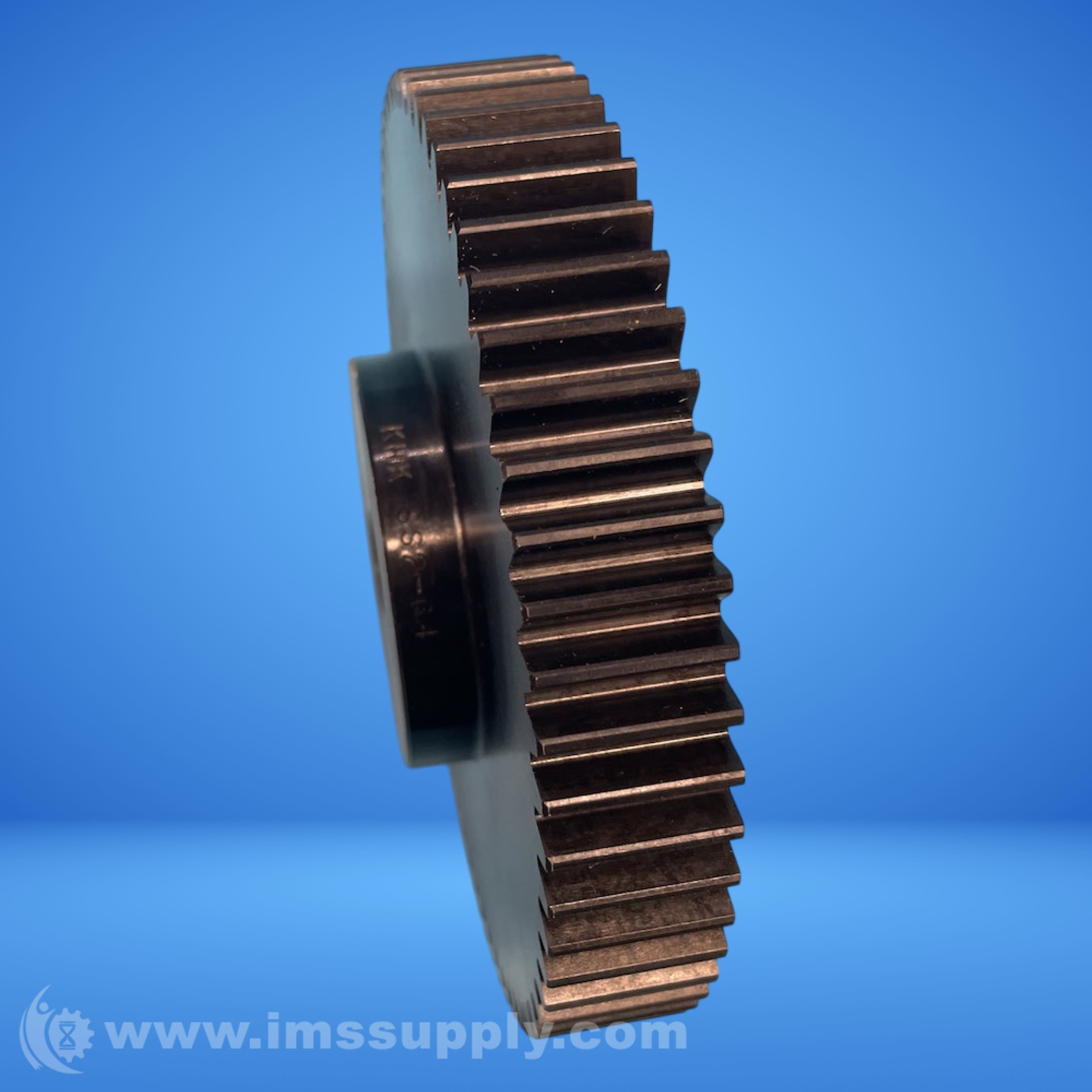

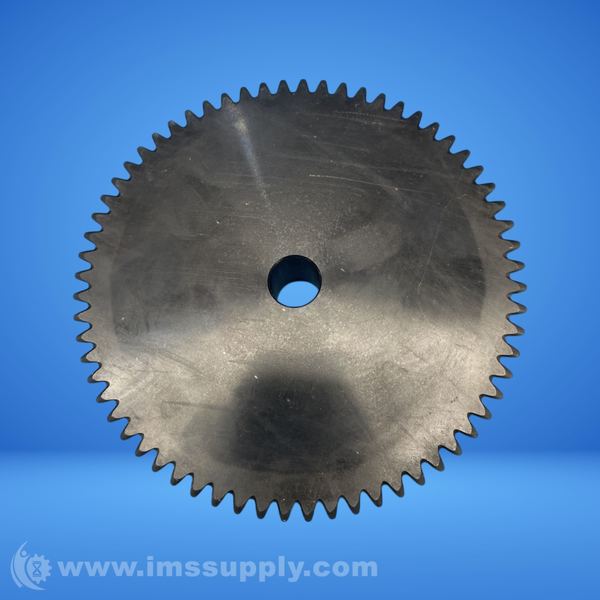

KHK SS2-64 Spur Gear
Module 2, 64 Tooth, Carbon Steel Spur Gear
Specifications
- Gear Type: Spur Gears
- Construction: Carbon Steel Spur Gear- J Series
- Bore Type: Plain
- Module: 2
- No. of teeth: 64
- Shape: S1
- Bore (A): 15.0 (mm)
- Hub Diameter (B): 60.0 (mm)
- Pitch Diameter (C): 128.00 (mm)
- Outer Diameter (D): 132.00 (mm)
- Face Width (E): 20.0 (mm)
- Hub Width (F): 10.0 (mm)
- Total Length (G): 30.00 (mm)
- Bending Strength: 209.0000 (N-m)
- Surface Durability: 33.7000 (N-m)
- Backlash: 0.18-0.36 (mm)
- Weight: 2.20000 (kg)
- Precision Grade: JIS grade N8 (JIS B1702-1:1998)
- Gear Teeth Type: Standard full depth
- Pressure Angle: 20 degrees
- Material: S45C (AISI 1045) Carbon Steel
- Tooth Hardness: (less than 194HB)
- Surface Treatment: Black oxide coating
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
