KHK SS2-80 SPUR GEAR
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: SS2-80
IMS Product Code: 2135754
Packaging: Sold Individually
Description:

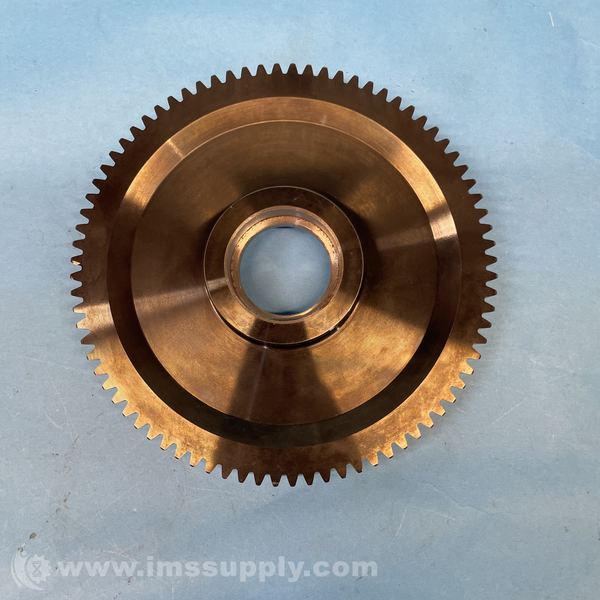

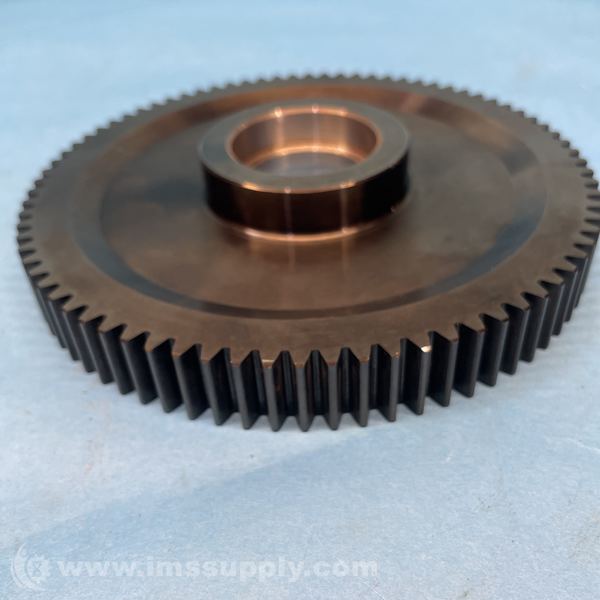

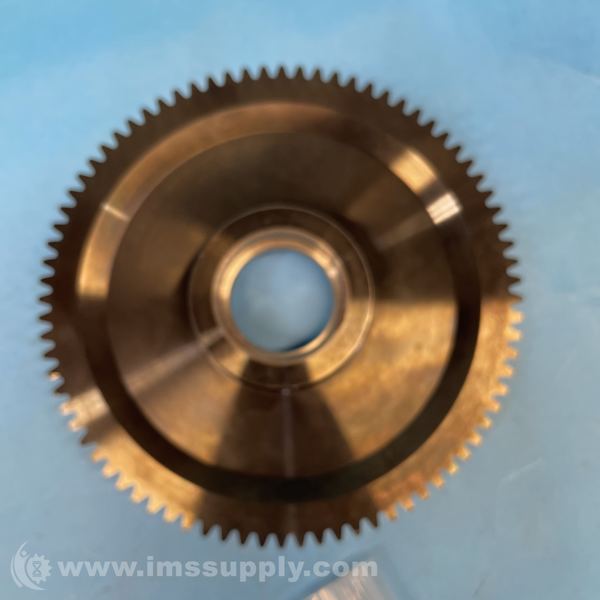

KHK SS2-80 Spur Gear
Carbon steel spur gear with 80 teeth, module 2, plain bore, and black oxide coating.
Specifications
- Gear Type: Spur Gears
- Material: S45C (AISI 1045) Carbon Steel
- Module: 2
- No. of teeth: 80
- Bore Type: Plain
- Bore (A): 20.0 mm
- Pitch Diameter (C): 160.00 mm
- Outer Diameter (D): 164.00 mm
- Face Width (E): 20.0 mm
- Pressure Angle: 20 degrees
- Tooth Hardness: less than 194HB
- Surface Treatment: Black oxide coating
- Weight: 2.67000 kg
