KHK SS3-40 CARBON STEEL SPUR GEAR
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: SS3-40
IMS Product Code: 2125921
Packaging: Sold Individually
Description:

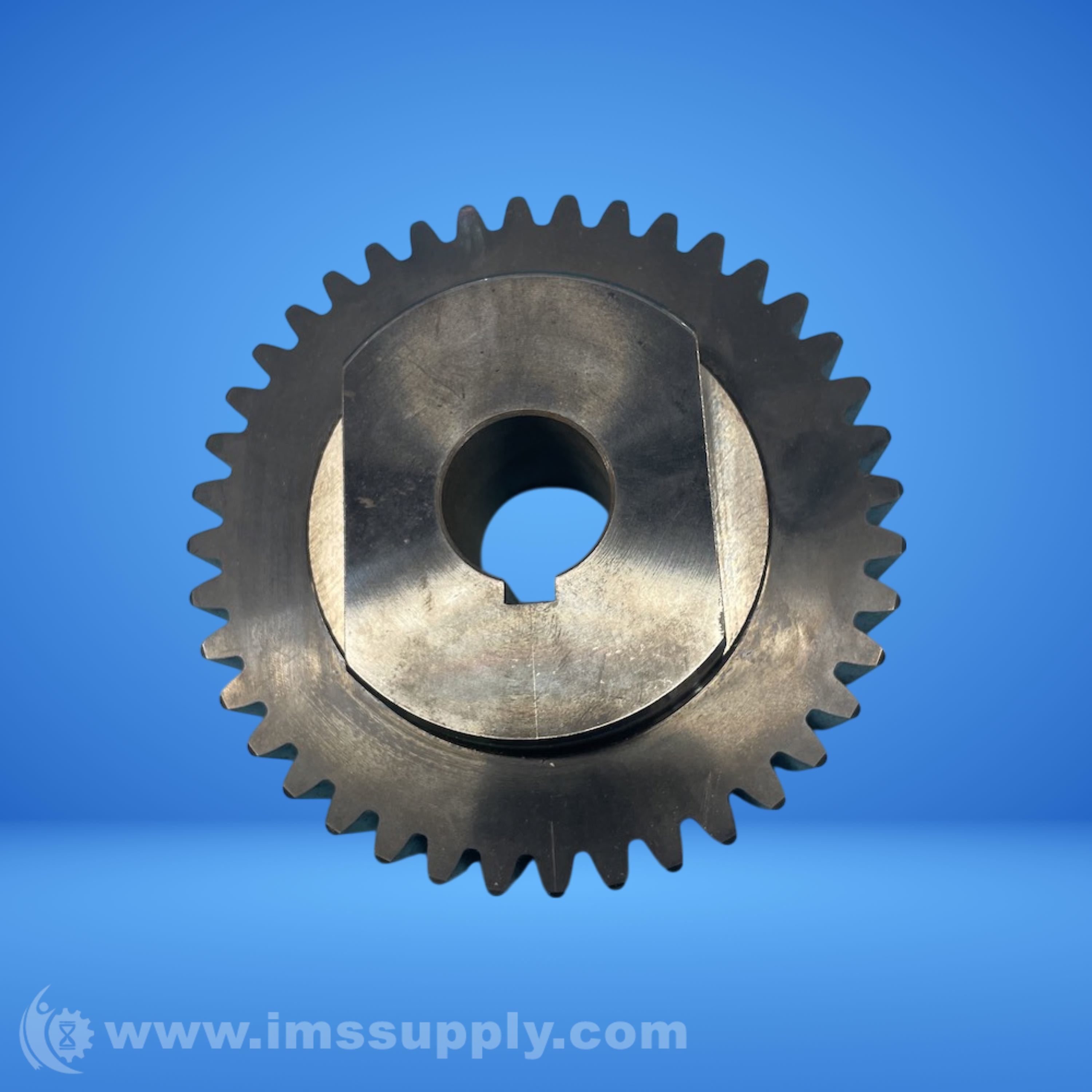

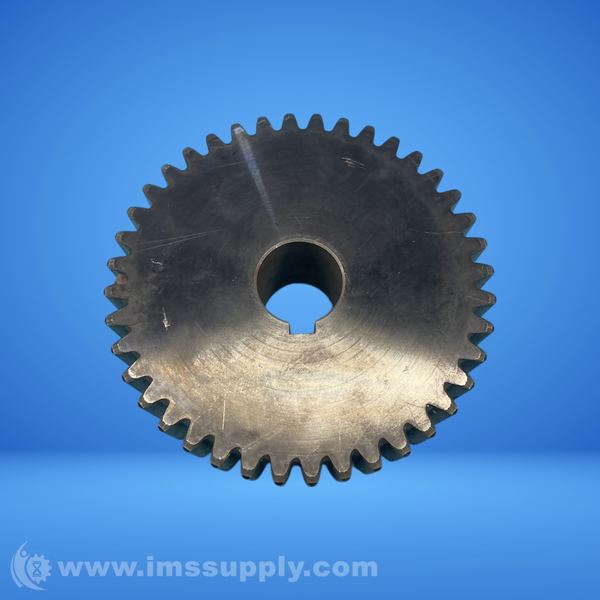

KHK SS3-40 Carbon Steel Spur Gear
KHK SS3-40 is a spur gear made from S45C (AISI 1045) carbon steel with a module of 3 and 40 teeth. It has a plain bore type and is not hardened. The gear has a standard full depth tooth shape with a pressure angle of 20 degrees.
Specifications
- Material: S45C (AISI 1045) Carbon Steel
- Module: 3
- Number of Teeth: 40
- Bore Type: Plain
- Bore Diameter: 25 mm
- Pitch Diameter: 120 mm
- Outer Diameter: 126 mm
- Face Width: 30 mm
- Hub Diameter: 80 mm
- Hub Width: 15 mm
- Total Length: 45 mm
- Precision Grade: JIS N8
- Pressure Angle: 20 degrees
- Tooth Hardness: Less than 194HB
- Surface Treatment: Black oxide coating
- Weight: 3.08 kg
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
