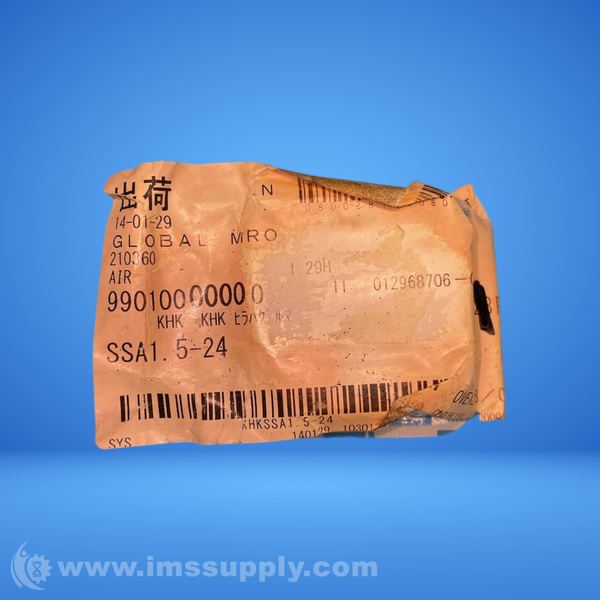

KHK SSA1.5-24 HUBLESS SPUR GEAR
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: SSA1.5-24
IMS Product Code: 2152315
Packaging: Sold Individually
Description:

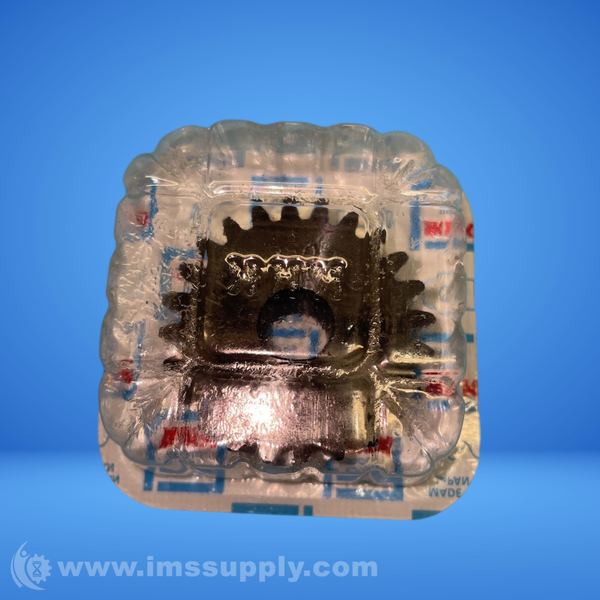

KHK SSA1.5-24 Hubless Spur Gear
Hubless spur gear made of carbon steel with black oxide finish, module 1.5, 24 teeth, 10 mm bore diameter.
Specifications
- System of Measurement: Metric
- Hub Design: Hubless
- Tooth Hardness: 194 HB
- Metric Module Pitch: 1.5
- Material: Carbon Steel
- Finish: Black Oxide
- Number of Teeth: 24
- Bore Diameter: 10 mm
- Face Width: 15 mm
- Pitch Diameter: 36 mm
- Outside Diameter: 39 mm
- Bore Type: Plain
- Pressure Angle: 20 degrees
- Material Grade: S45C
- Precision Class: JIS N8 (JIS B1702-1:1998)
- Bore Diameter Tolerance: H7
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
