KHK SSA3-24 STEEL SPUR GEAR
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: SSA3-24
IMS Product Code: 2124630
Packaging: Sold Individually
Description:

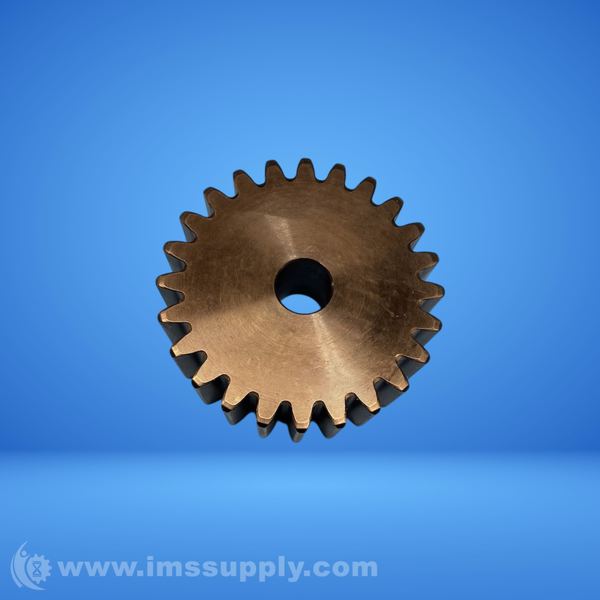

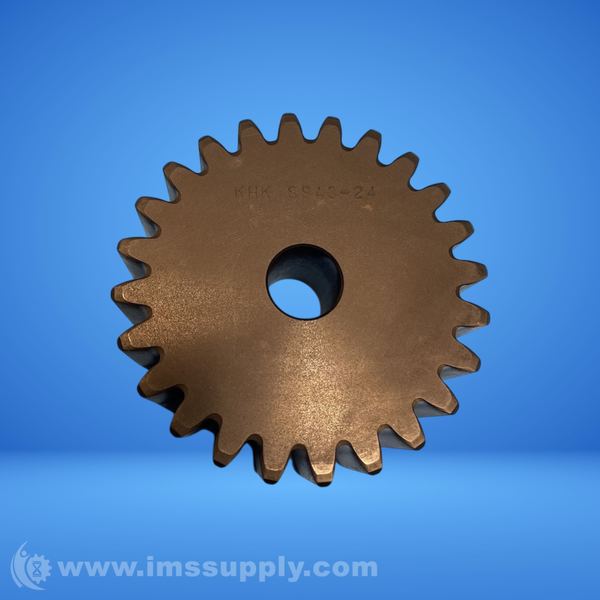

KHK SSA3-24 Steel Spur Gear
Steel spur gear with 24 teeth, module 3, and a hole diameter of 15mm.
Specifications
- Module: 3
- Number of Teeth: 24
- Reference Diameter: 72mm
- Tooth Width: 30mm
- Hole Diameter: 15mm
- Shape: S5
- Gear Accuracy: JISB1702-1N8 grade
- Tooth Shape: Full depth tooth
- Pressure Angle: 20 degrees
- Material: S45C Steel
- Surface Treatment: Black oxide finish
- Shaft Bore Tolerance: H7
- Tooth Hardness: Less than 194HB
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 52 minutes.
