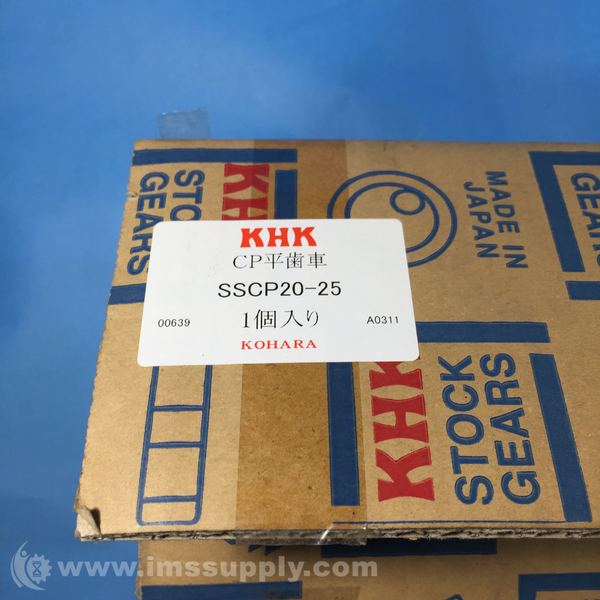

KHK SSCP20-25 SPUR GEAR
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: SSCP20-25
IMS Product Code: 1899678
Packaging: Sold Individually
Description:

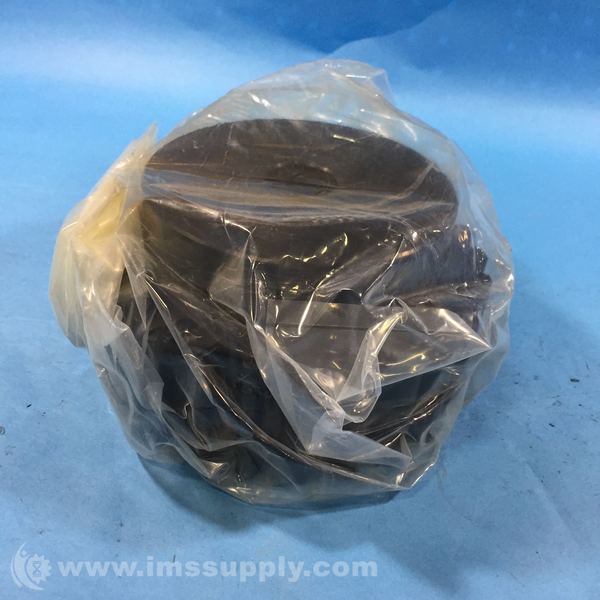

KHK SSCP20-25 Spur Gear
CP spur gear for power transmission
Specifications
- Pitch: CP20
- Number of Teeth: 25
- Shape: S1
- Reference Circle Diameter: 159.155 mm
- Face Width: 60 mm
- Bore Diameter: 30 mm
- Total Length: 90 mm
- Tip Diameter: 130 mm
- Root Diameter: 171.89 mm
- Boss Length: 30 mm
- Gear Accuracy: JIS B 1702-1 N8 class
- Tooth Surface Hardness: 194HB or less
- Tooth Profile: Full Tooth
- Surface Treatment: Black Dye
- Pressure Angle: 20 degrees
- Tooth Surface Finish: Cut
- Tooth Cutting Reference Plane: Bore (H7)
- Heat Treatment: None
- Further Machining Possible: Yes
- Material: S45C
