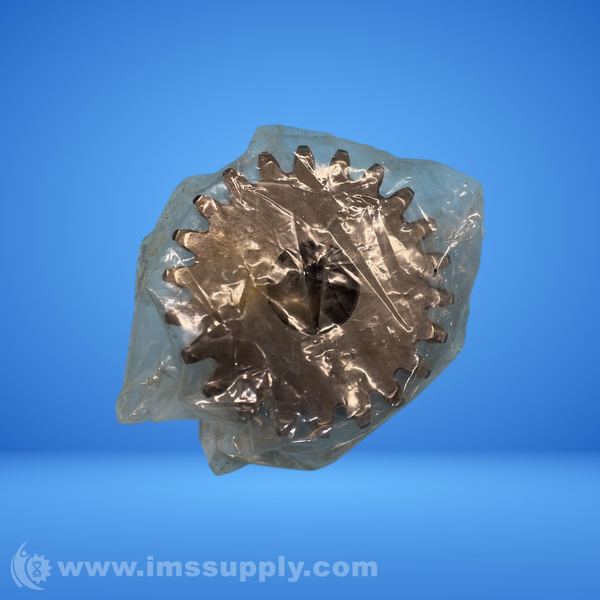

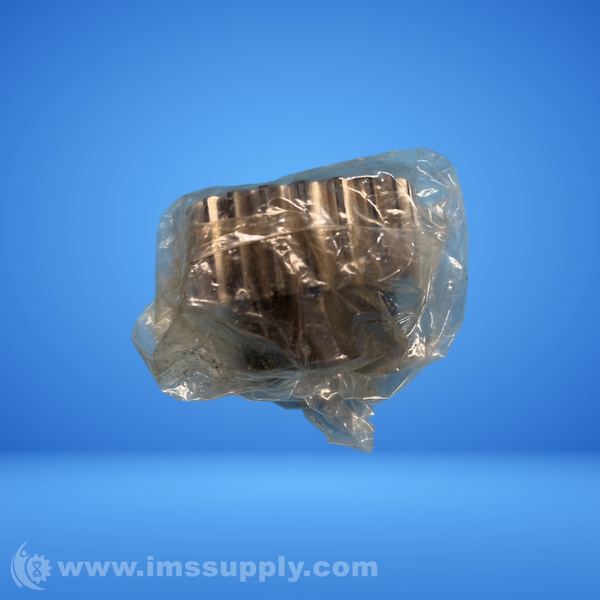

KHK SSG2.5-22 SPUR GEAR
Quick Overview
Manufactured By: KHK GEARS
Manufacturer Part Number: SSG2.5-22
IMS Product Code: 2125716
Packaging: Sold Individually
Description:
KHK SSG2.5-22 Spur Gear
Spur gear with induction hardened tooth surface, module 2.5, 22 teeth.
Specifications
- Module: 2.5
- Number of Teeth: 22
- Material: S45C Steel
- Pressure Angle: 20 degrees
- Precision Grade: JIS N7
- Gear Teeth: Ground
- Tooth Hardness: 50 - 60HRC
- Hole Diameter: 18 mm
- Tooth Width: 25 mm
- Reference Circle Diameter: 55 mm
- Tip Circle Diameter: 60 mm
- Boss Diameter: 44 mm
- Boss Length: 18 mm
- Total Length: 43 mm
- Allowable Torque: 86.0 N·m
- Backlash: 0.12 to 0.22 mm
- Weight: 0.6 kg
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 12 hours and 52 minutes.
