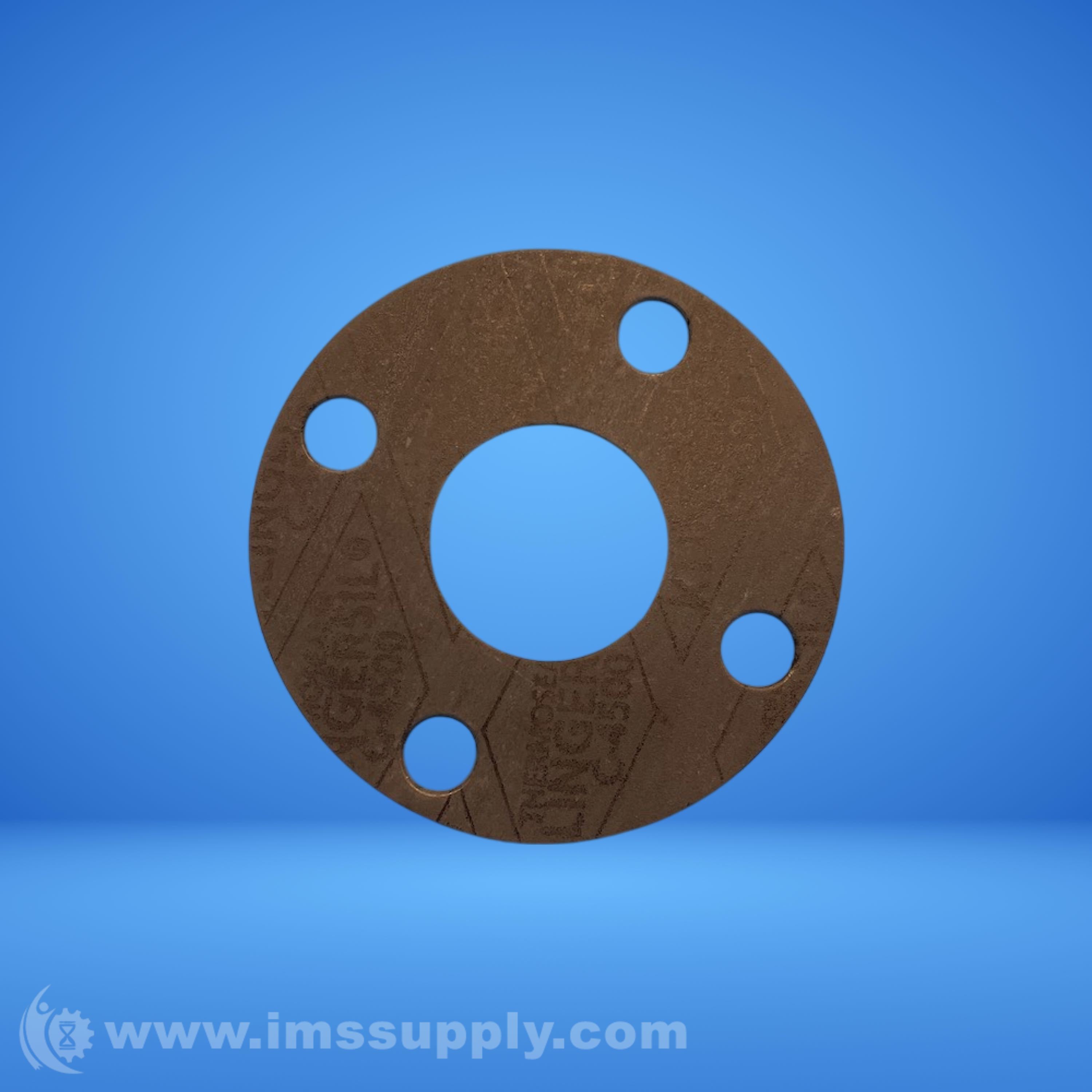

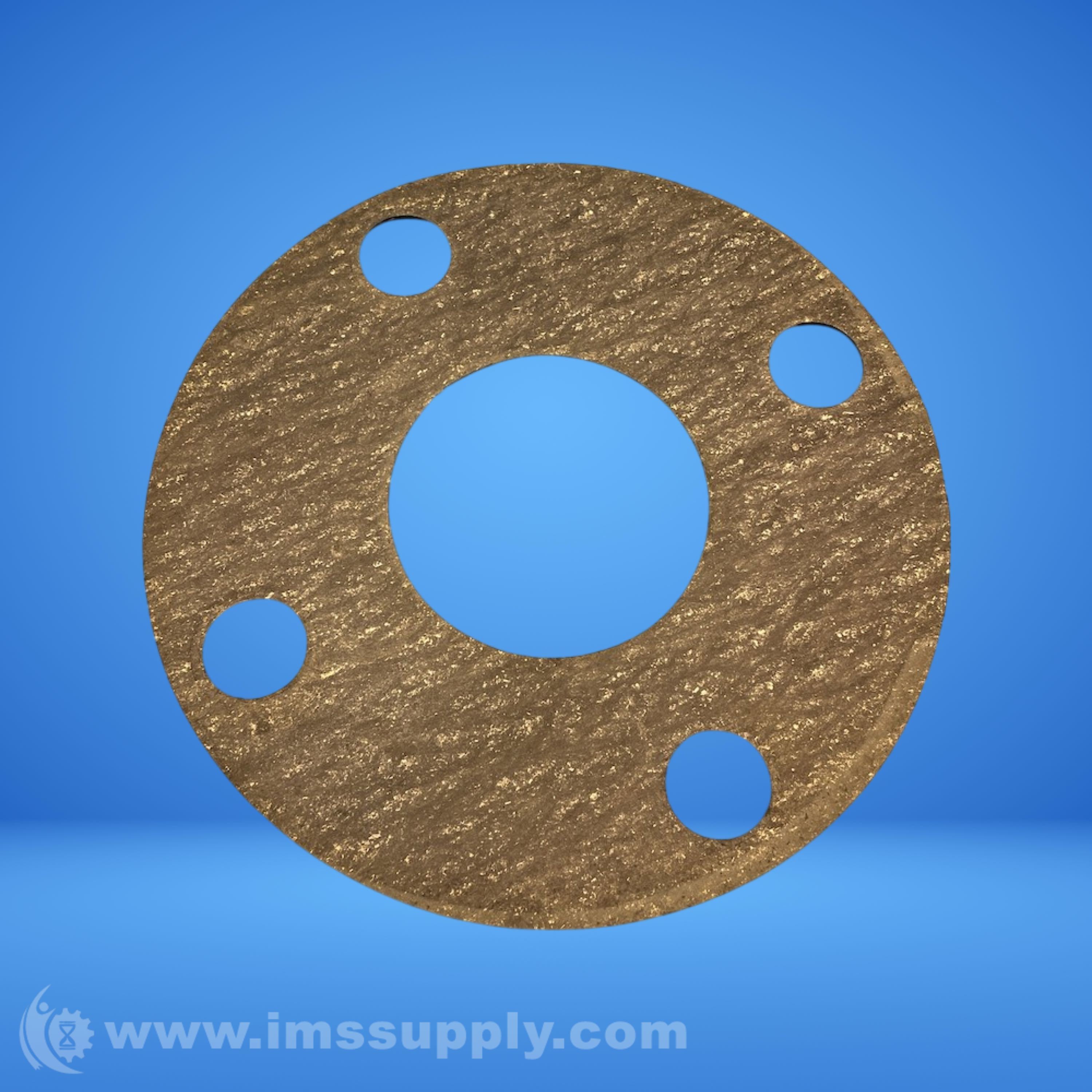

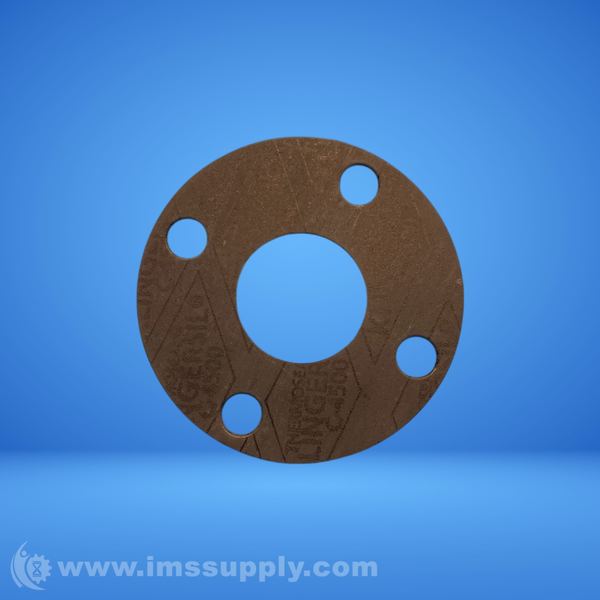

KLINGERSIL C-4500 COMPRESSED FIBER GASKET MATERIAL
Quick Overview
Manufactured By: KLINGERSIL
Manufacturer Part Number: C-4500
IMS Product Code: 2124671
Packaging: Sold Individually
Description:
KLINGERSIL C-4500 Compressed Fiber Gasket Material
Compressed fiber gasket material made from carbon fibers and special heat-resistant additives bonded with NBR, suitable for chemical industry applications.
Specifications
- Material: carbon fibers and special heat-resistant additives bonded with NBR
- Compressibility ASTM F36J: 11%
- Recovery ASTM F36J: 60%
- Creep Relaxation ASTM F38B: 20%
- Sealability ASTM F37A: < 0.3 ml/hr
- Gas Permeability DIN 3535/6: < 1.0 ml/min
- Density: 1.6 g/cm3
- Dielectric Strength ASTM D149-95a: 1.5 kV/mm
- Leachable Chloride Content FSA Method: 200 ppm
- Max Temperature: 850°F
- Max Pressure: 1900 psi
- Thickness: 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm
- Sheet Size: 1000 x 1500 mm, 2000 x 1500 mm
