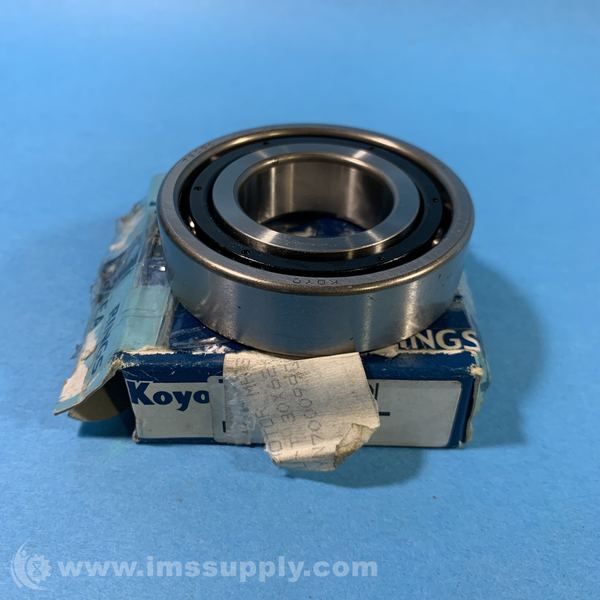

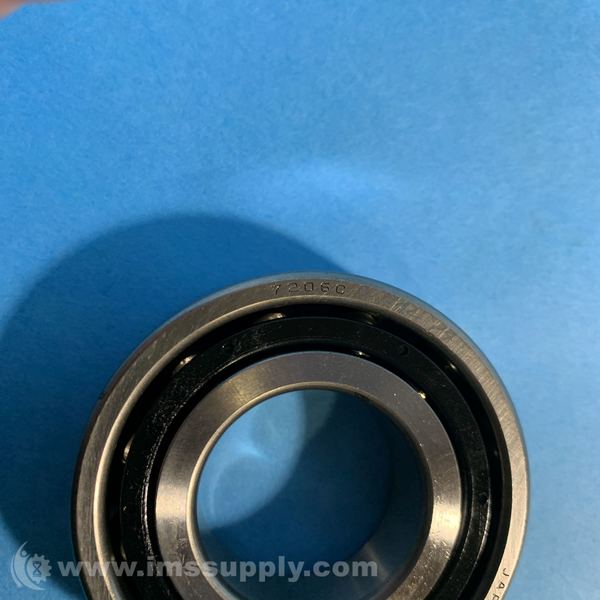

KOYO 7206C ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: KOYO
Manufacturer Part Number: 7206C
IMS Product Code: 1793138
Packaging: Sold Individually
Description:
Koyo 7206C Angular Contact Ball Bearing
Single-row angular contact ball bearing
Specifications
- d: 30 mm
- D: 62 mm
- B: 16 mm
- r(min.): 1 mm
- r1(min.): 0.6 mm
- Basic load ratings : Cr: 30.4 kN
- Basic load ratings : C0r: 16.0 kN
- Fatigue load limit : Cu: 1.10 kN
- factor : f0: 14.0
- Limiting speeds(Grease lub.): 14000 min-1
- Limiting speeds(Oil lub.): 19000 min-1
- Load center spread : a: 14.3 mm
- da(min.): 35.5 mm
- Da(max.): 56.5 mm
- ra(max.): 1 mm
- Mass: 0.208 kg
